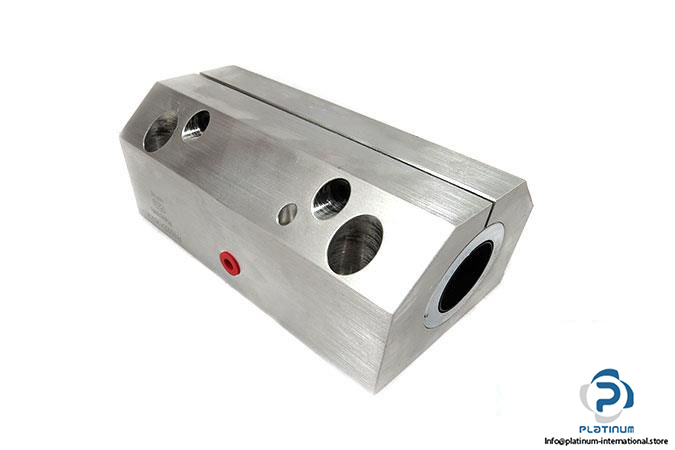

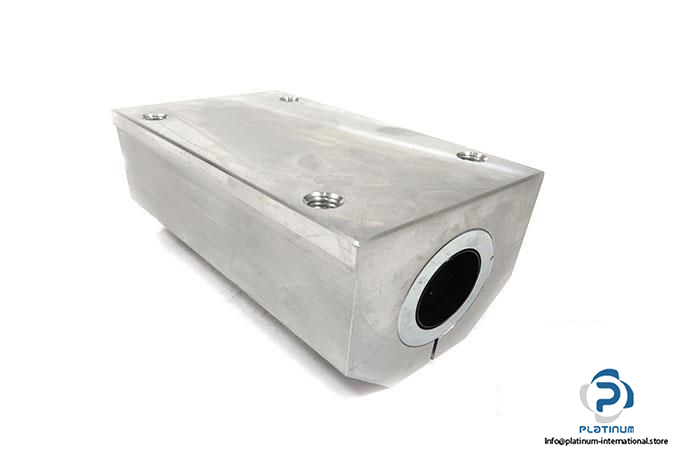

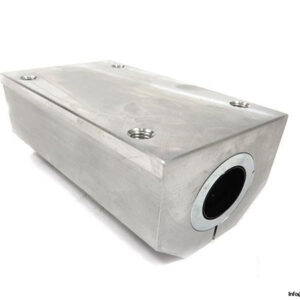

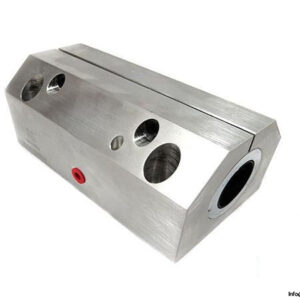

Manufacturer: REXROTH
Type: LINEAR SET LSATE-A-30-DD

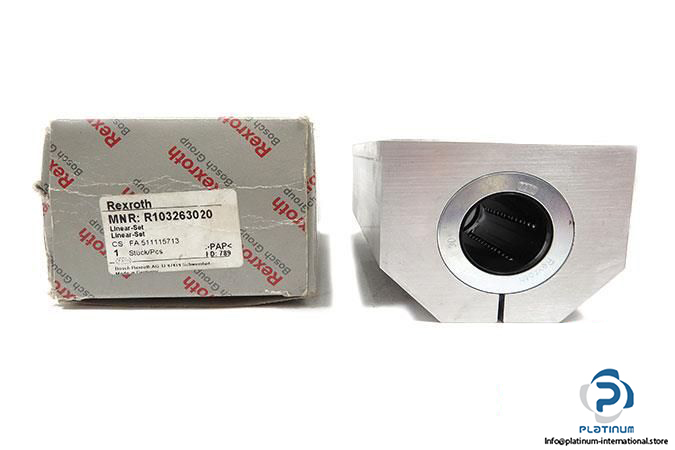

MNR: R1032 630 20

Dimensions:
Shaft diameter d0: 30 mm
Series: Super A
Design Type: Adjustable
Maximum permissible linear speed vmax: 3 m/s
Max. acceleration amax: 150 m/s²
Friction force: 2.5 N
Breakaway force: 6 N
Dynamic Load rating C: 9520 N
Static Load rating C₀: 7140 N
Dynamic Linear Torque: 289 Nm
Static Linear Torque: 206 Nm
Dimensions:
D: 30 mm
L: 152 mm
Permissible Ambient Temperature: -10 … +80 °C
