Manufacturer: BOSCH REXROTH
Type: Linear Sets with Super Linear Bushings B
MNR: R 103581620
Model: LSA-B-16-DD

Shaft diameter d: 16 mm
Design type: Closed type
Housing Format: Aluminum
Dynamic Load Capacity C: 1250 N
Static Load Capacity C₀: 620 N
Breakaway Force: 2 N
Maximum Acceleration Travel a_max: 150 m/s²
Maximum Permissible Speed v_max: 3 m/s

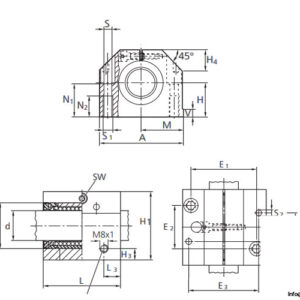

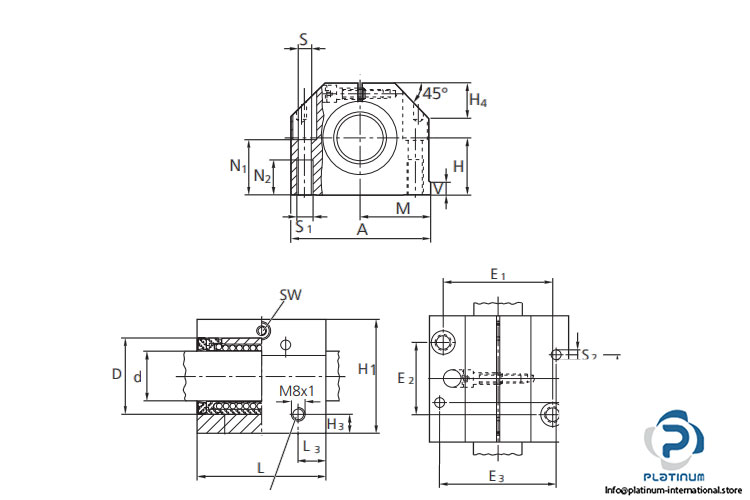

Dimensions:
A: 53 mm
L: 43 mm
H₁: 42 mm
E₁: 40 mm
E₂: 26 mm
Seals: With two seals
Operating temperature: -10 °C … +80 °C
