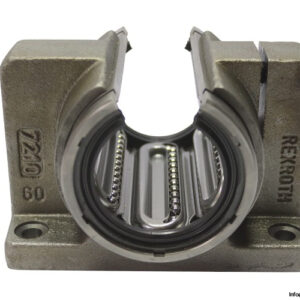

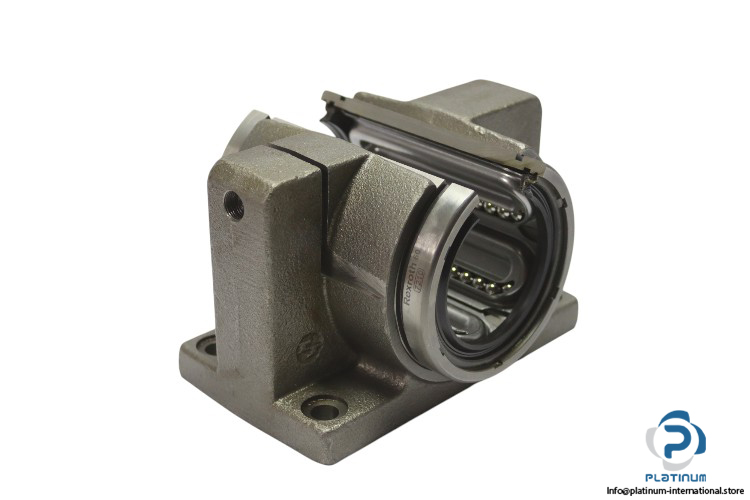

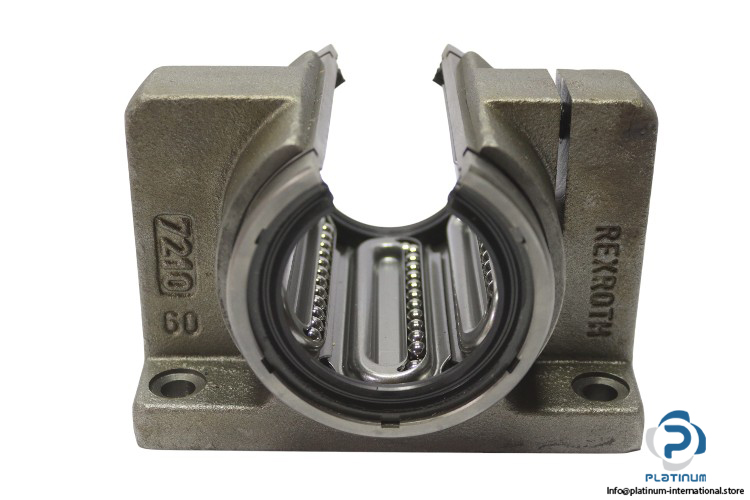

Rexroth Linear Set LSGOE-M-60-DD

The Rexroth Linear Set LSGOE-M-60-DD is designed for high-precision applications with adjustable open bushings and a maximum permissible speed of 2 m/s. It offers reliable performance in various industrial environments.

Manufacturer: Rexroth

Type: Linear Set (LSGOE-M-60-DD)

MNR: R106826000

Technical Information:

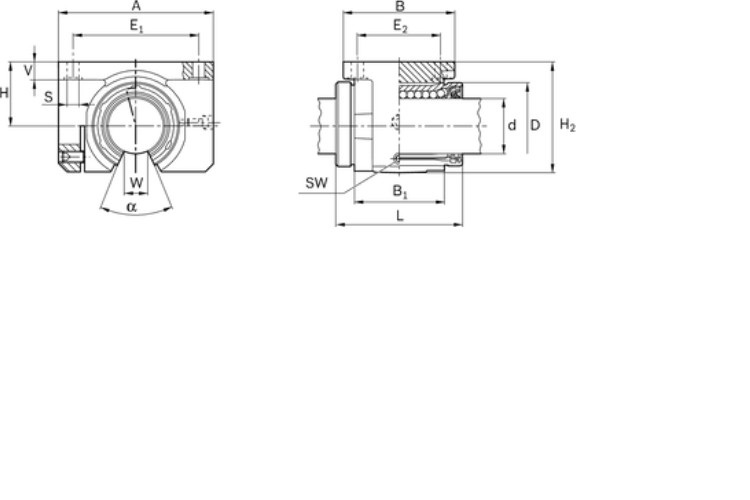

• Shaft Diameter (d0): 60 mm
• Dimension D: 90 mm
• Dimension L: 125 mm
• Series: Standard (metal)
• Format of Linear Bushings: OE – Open, adjustable
• Maximum Permissible Linear Speed (vmax): 2 m/s
• Max. Acceleration (amax): 50 m/s²
• Breakaway Force: 48 N
• Dynamic Load Rating (C): 11800 N
• Static Load Rating (C0): 9780 N
• Seals: Two wiper seals
• Permissible Ambient Temperature: -10 to +80 °C
