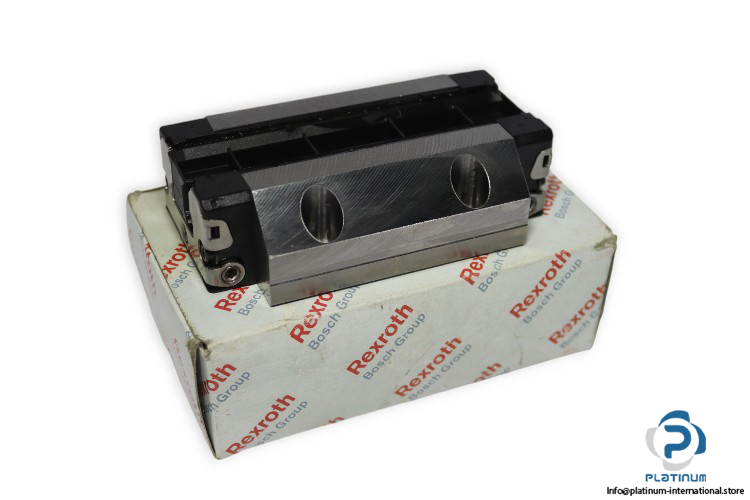

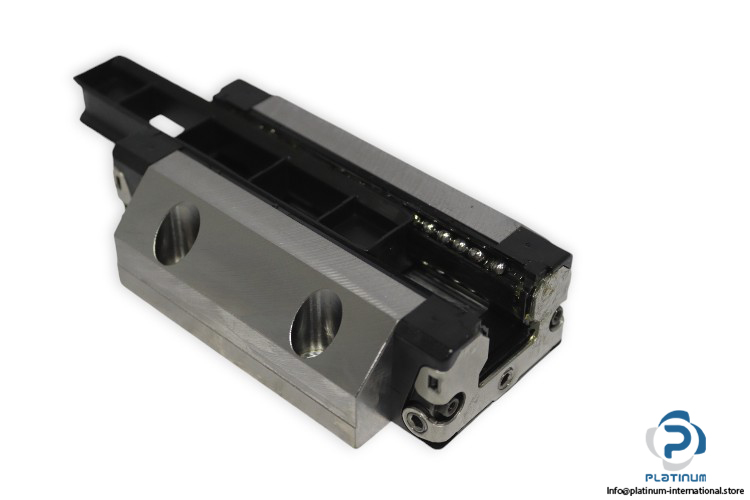

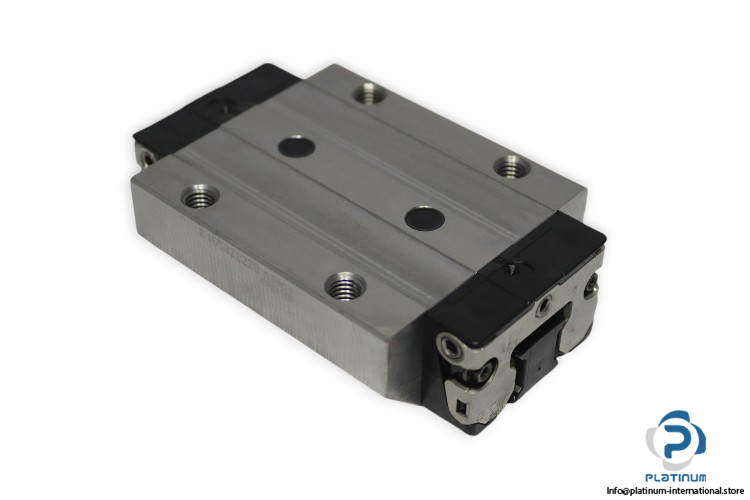

Rexroth R165322220 Ball Runner Block

Manufacturer: REXROTH
Type: BALL RUNNER BLOCK FLS

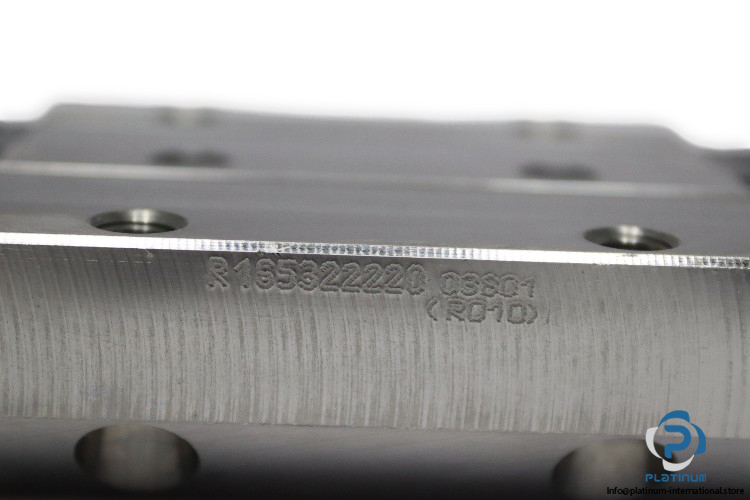

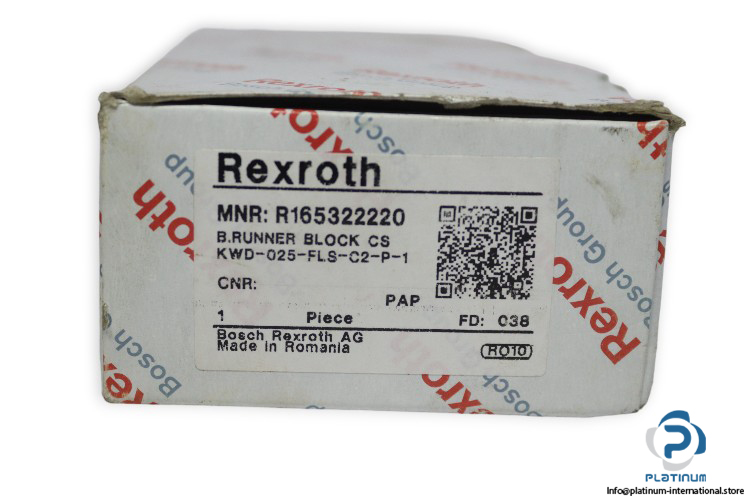

MNR: R1653 222 20

Size: 25 mm

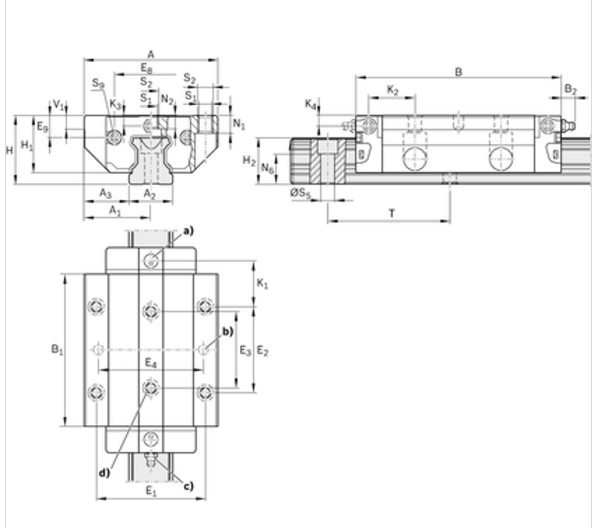

Dimensions
Width (A): 70 mm
Length (B): 107.9 mm
Height of runner block: 29.9 mm
Height runner block with guide rail: 36 mm
E1: 57 mm
E2: 45 mm
Format: FLS – flange, long, standard height
Material (profiled rail systems): Carbon steel
Dynamic Load Capacity C: 37300 N
Static Load Capacity C₀ : 52500 N
Dynamic Torsional Moment Load Capacity M_t: 530 Nm
Static torsional moment load capacity Mt0: 750 Nm
Dynamic longitudinal moment load capacity ML: 530 Nm
Static longitudinal moment load capacity ML0: 740 Nm
Accuracy Class: P – Precise
Preload Class: C2 – Medium preload
Seal: SS – Standard seal
