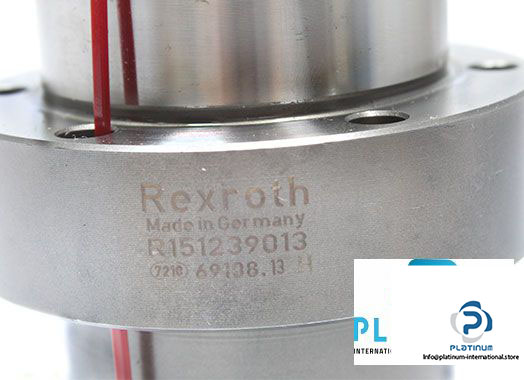

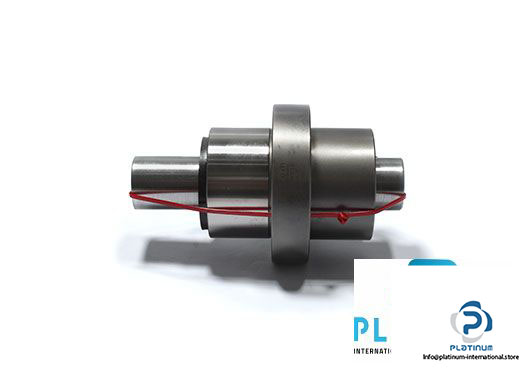

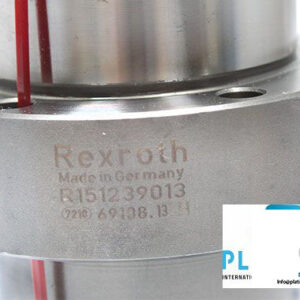

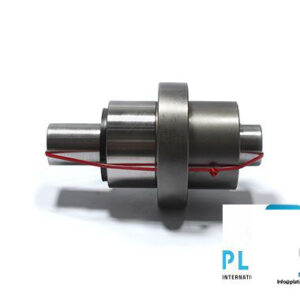

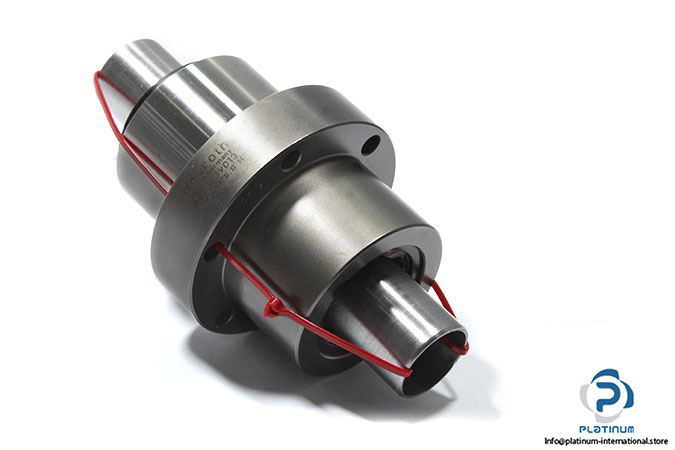

Manufacturer: REXROTH

Type: Flanged Single Nut FEM-E-S

MNR: R151239013

Size: 32 x 32 R x 3,969-2

Nominal Diameter d₀: 32 mm

Ball Diameter D_W: 3.969 mm

Number of ball track turns i: 2

Lead P: 32 mm

Direction of Lead: Right-Hand Thread

Dynamic Load Capacity C: 16100 N

Static Load Capacity C₀: 22000 N

Maximum Permissible Speed v_max: 150 m/min

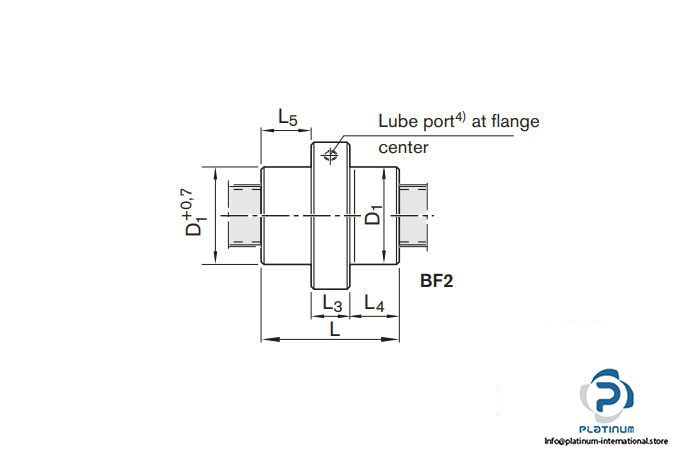

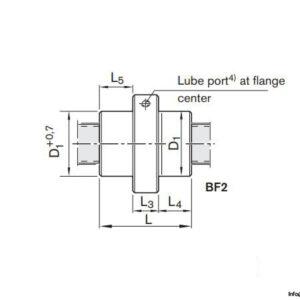

Dimensions:

D1: 56 mm

L: 88 mm

Permissible Operating Temperature: -10 … +80 °C
