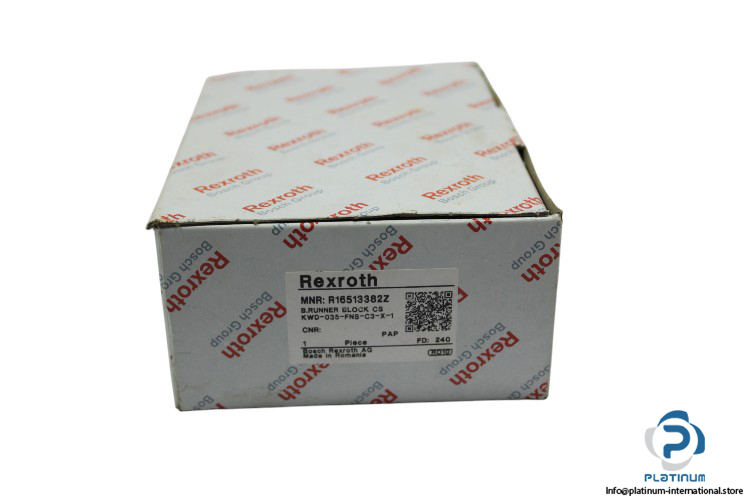

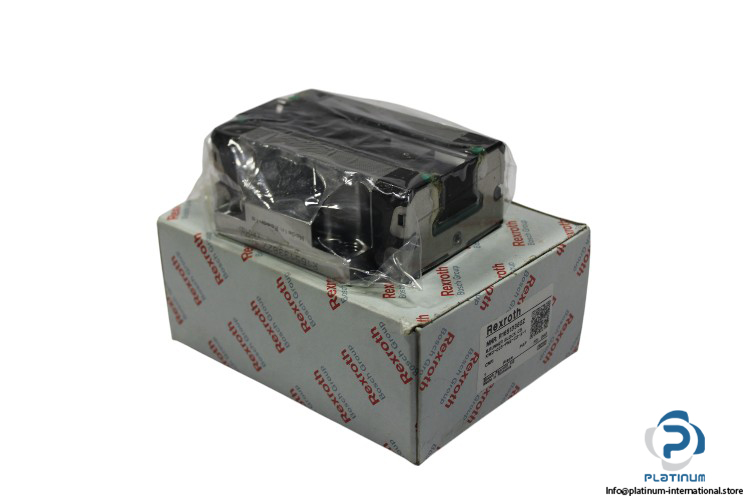

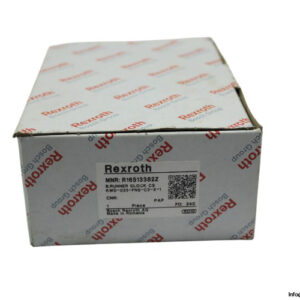

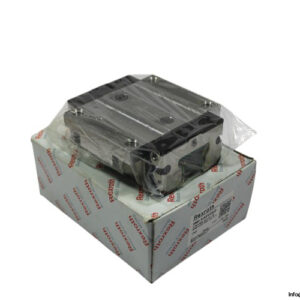

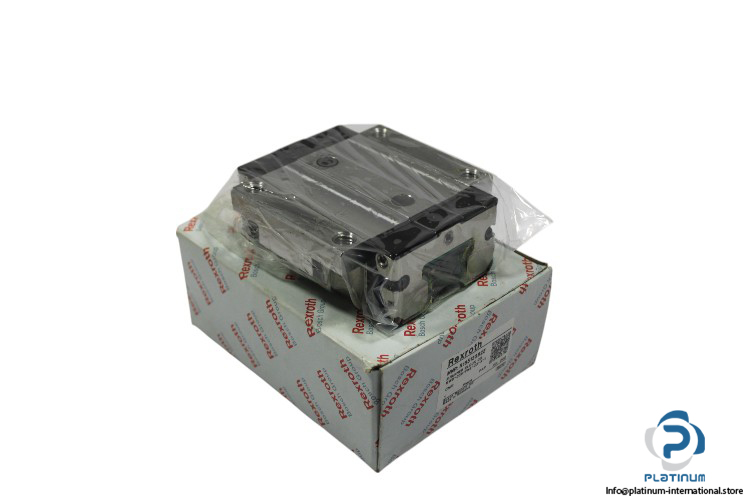

Rexroth R16513382Z Ball Runner Block
The Rexroth R16513382Z Ball Runner Block is engineered for high-performance linear motion applications, offering exceptional precision, durability, and load-bearing capacity. Designed with extra precision (XP accuracy class) and high preload (C3), this ball runner block ensures smooth and reliable motion for demanding industrial environments.
- Manufacturer: Rexroth
- Type: Ball Runner Block
- MNR: R16513382Z
Technical Information
- Size: 35 mm
- Dimensions:
- Width (A): 100 mm
- Length (B): 110.5 mm
- Height of System (H): 48 mm
- Height of Block (H1): 40.4 mm
- E1: 82 mm
- E2: 62 mm
- Format: FNS – Flange, Normal, Standard Height
- Material (Profiled Rail Systems): Carbon Steel
- Performance:
- Maximum Acceleration (amax): 500 m/s²
- Maximum Permissible Speed (vmax): 5 m/s
- Load Capacities:
- Dynamic Load Capacity (C): 51800 N
- Static Load Capacity (C0): 80900 N
- Dynamic Torsional Moment Load Capacity (Mt): 1110 Nm
- Static Torsional Moment Load Capacity (Mt0): 1740 Nm
- Dynamic Longitudinal Moment Load Capacity (ML): 720 Nm
- Static Longitudinal Moment Load Capacity (ML0): 1130 Nm
- Accuracy Class: XP – Extra Precision
- Preload Class: C3 “ High Preload
- Admissible Operating Temperature: -10 to +80 °C
