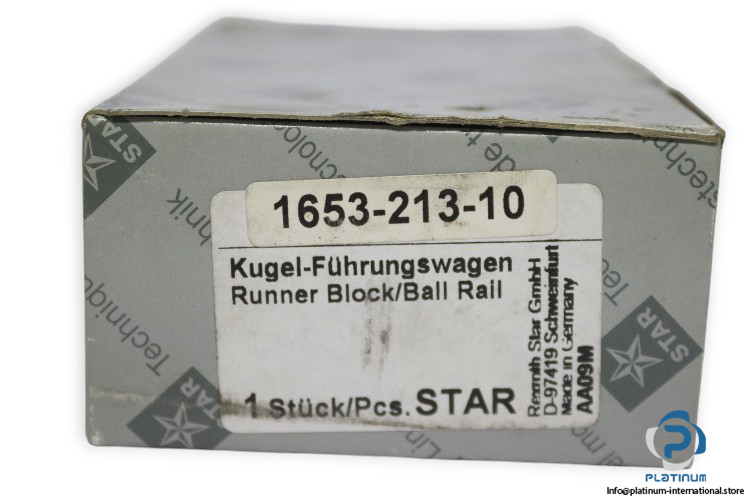

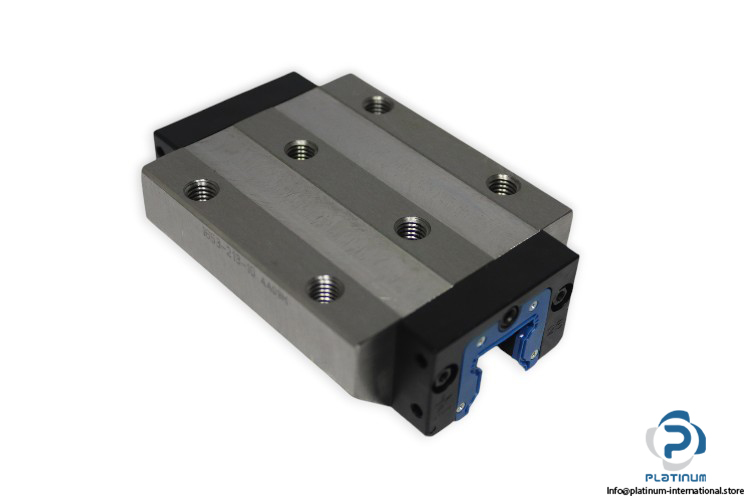

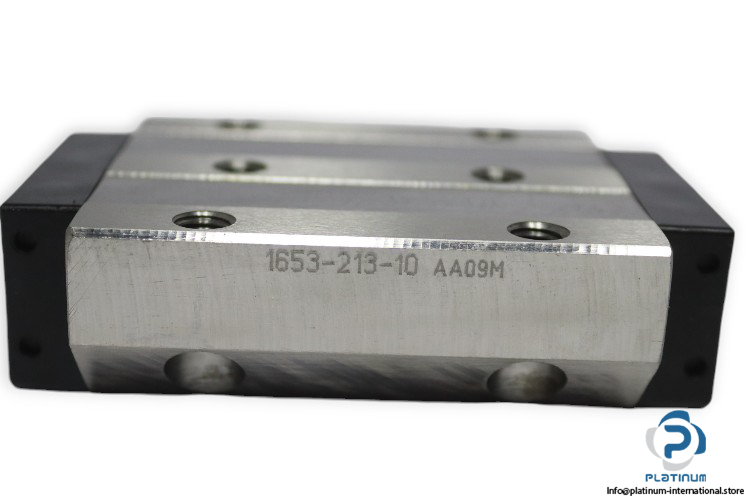

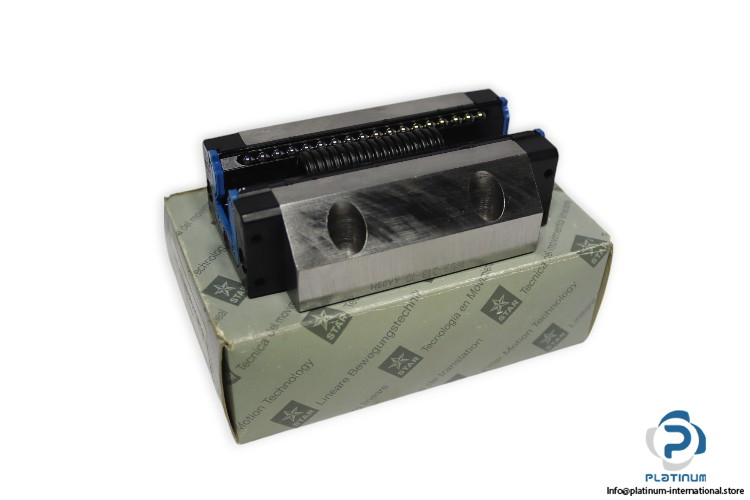

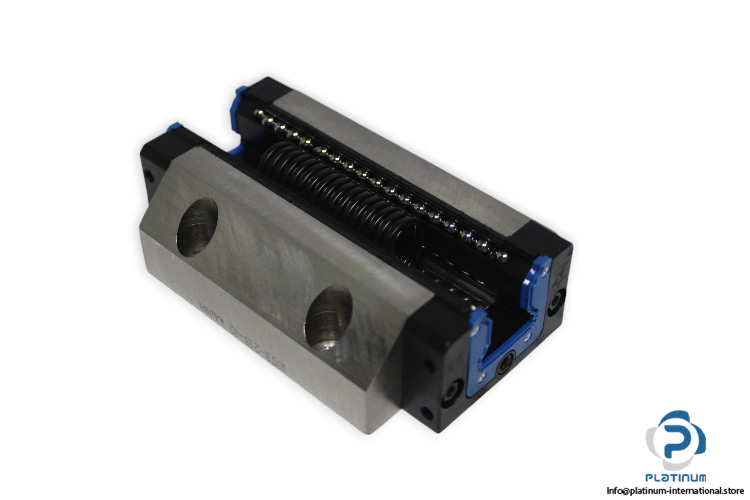

Rexroth Star 1653-213-10 Ball Runner Block
Manufacturer: REXROTH STAR
Type: BALL RUNNER BLOCK FLS
MNR: 1653 213 10
Size: 25 mm

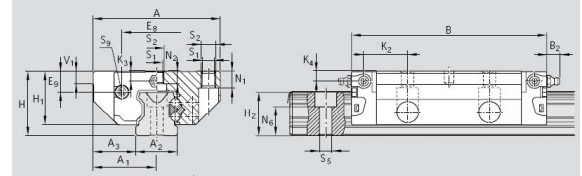

Dimensions
Width (A): 70 mm
Length (B): 107.9 mm
Height of runner block: 29.90 mm
Height runner block with guide rail: 36 mm
E1: 57 mm
E2: 45 mm
Design: FLS – Flanged, long, standard height
Dynamic Load Capacity C: 30400 N
Static Load Capacity C0: 45500 N
Max. acceleration a max: 500 m/s²
Maximum permissible linear speed v max: 5 m/s
Dynamic Torsional Moment Load Capacity Mt: 430 Nm
Static Torsional Moment Load Capacity Mt0: 650 Nm
Dynamic longitudinal moment load capacity ML: 345 Nm
Static longitudinal moment load capacity ML0: 510 Nm
Accuracy Class: H – High Accuracy
Preload Class: C1 – Low Preload
