Manufacturer: Bosch Rexroth

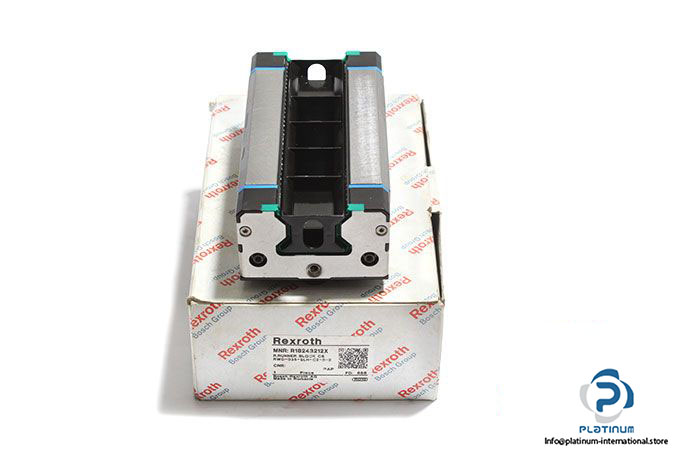

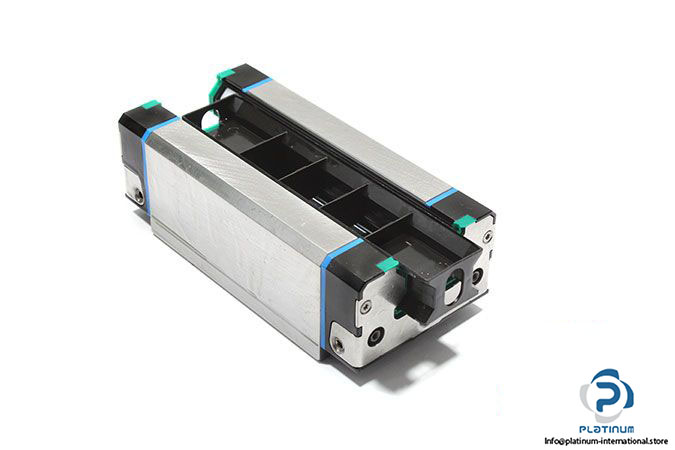

Type: Roller Runner Blocks SLH

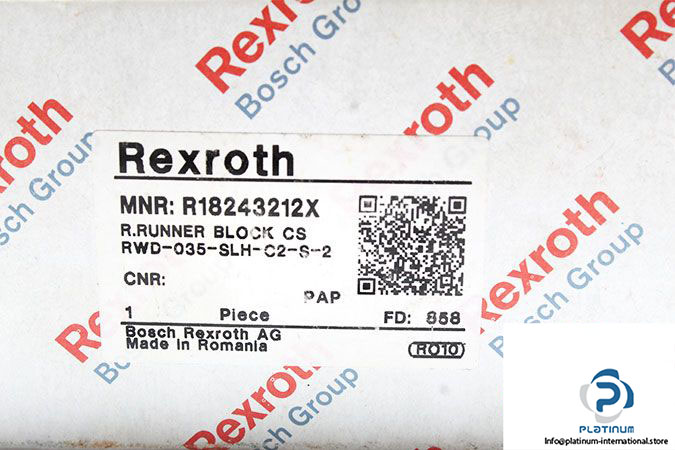

MNR: R18243212X

Size: 35 mm

Mechanical Format: RWD

Design: SLH – Slimline, Long, High

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 4 m/s

Dynamic Load Capacity C: 74900 N

Static Load Capacity C₀ : 155400 N

Dynamic Torsional Moment Load Capacity M_t:  1490 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 1220 Nm

Accuracy Class: SP

Preload Class: C2

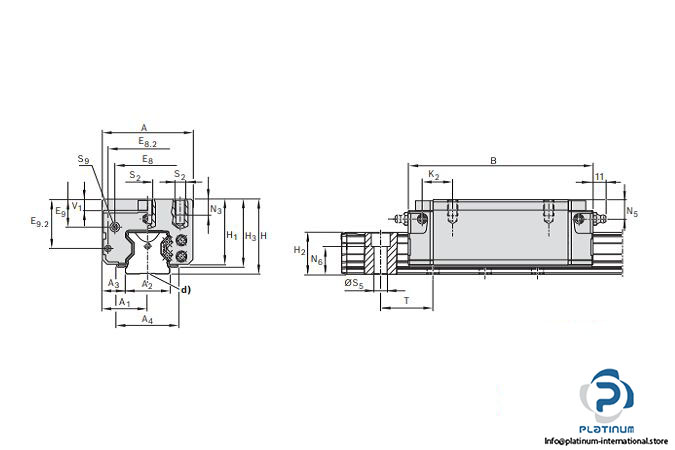

Dimensions

Width ( A ): 70 mm

Length ( B ): 142 mm

Height ( H₁ ): 48 mm

Admissible Operating Temperature: -10… +80 °C
