Manufacturer: Bosch Rexroth
Type: Roller Runner Blocks FLS
MNR: R185331310

Size: 35 mm
Mechanical Format: RWA
Design: FLS – Flange, Long, Standard
Format: CS – Carbon Steel
Maximum Acceleration Travel a_max: 150 m/s²
Maximum Permissible Speed v_max: 4 m/s
Dynamic Load Capacity C: 74900 N
Static Load Capacity C₀ : 155400 N
Dynamic Torsional Moment Load Capacity M_t:  1490 Nm
Dynamic Longitudinal Moment Load Capacity M_L: 1220 Nm
Accuracy Class: H
Preload Class: C1

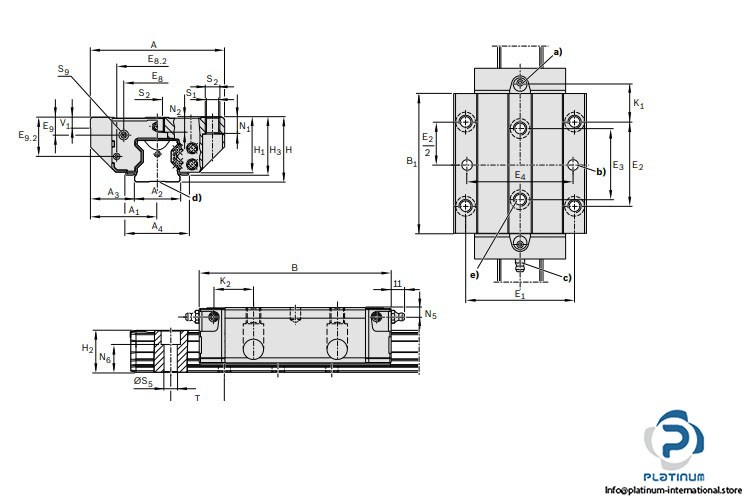

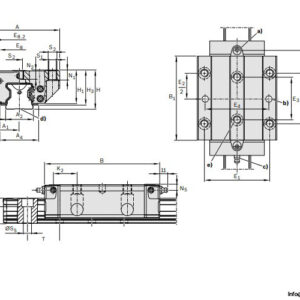

Dimensions
Width ( A ): 100 mm
Length ( B ): 142 mm
Height ( H ): 48 mm
Block Hight: 41 mm
