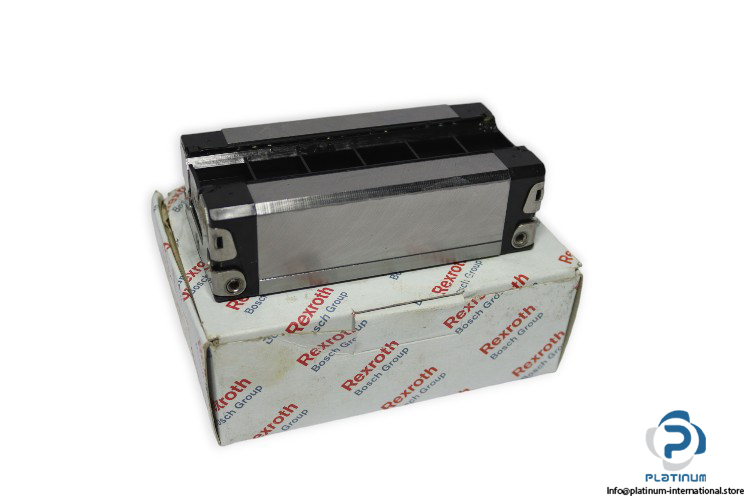

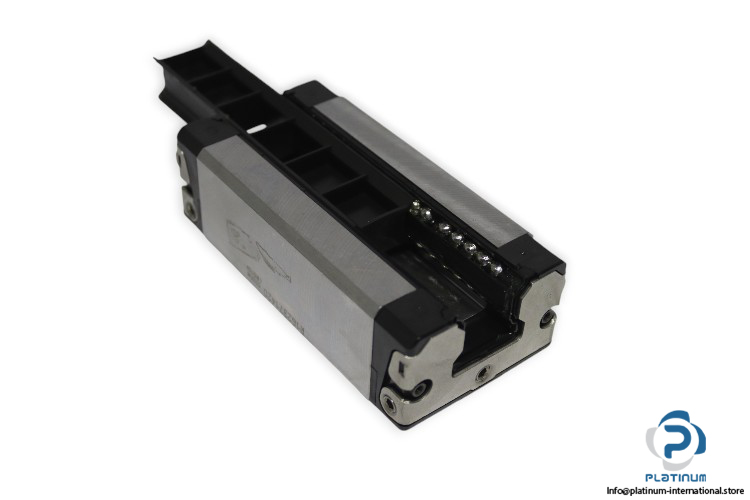

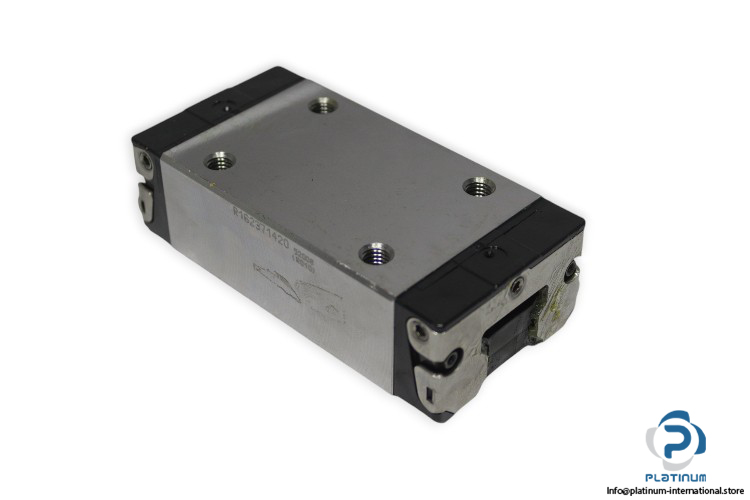

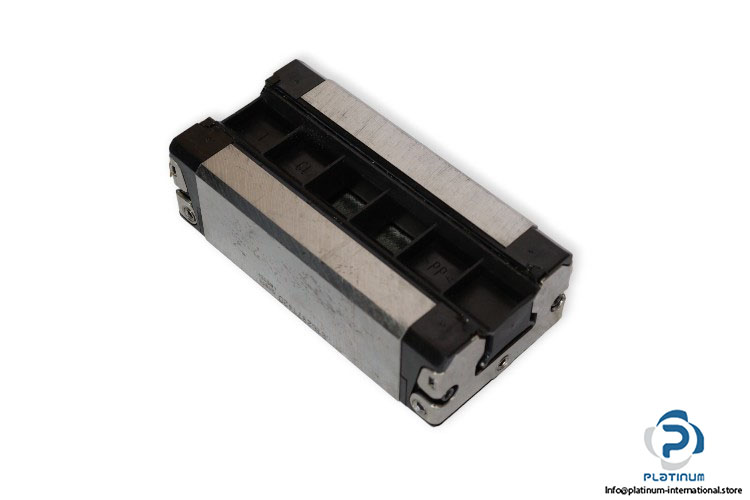

Rexroth R162371420 Ball Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block SLS

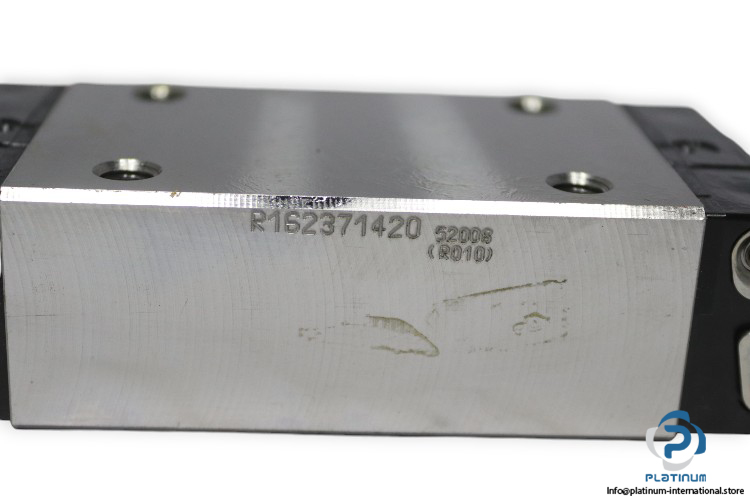

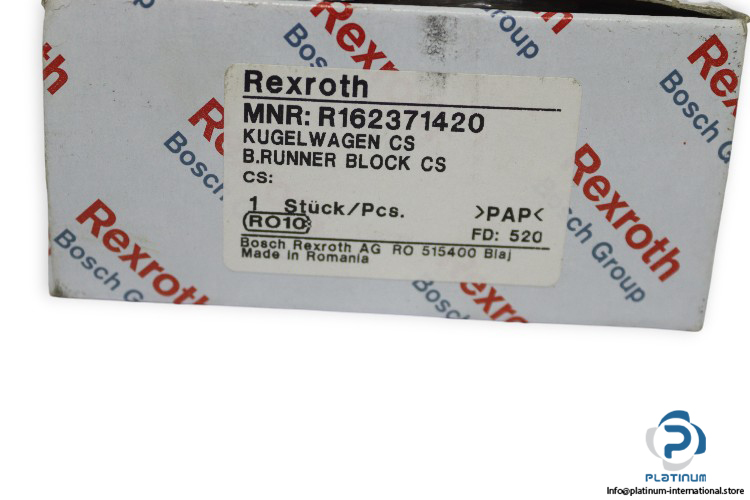

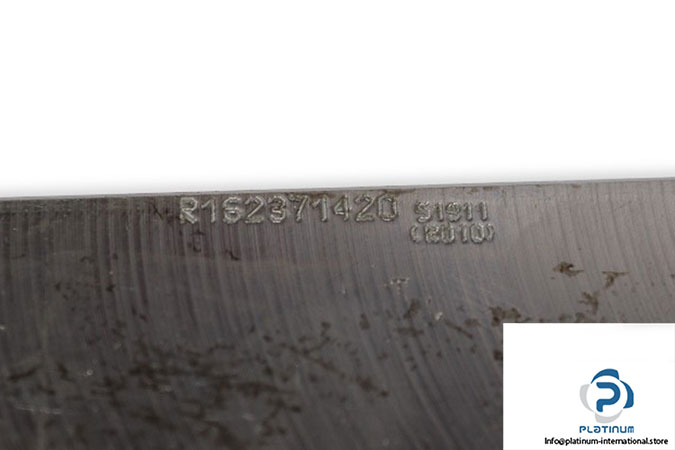

MNR: R1623 714 20

Size: 30 mm
Design: SLS – Slimline, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 46000 N
Static Load Capacity C₀ : 66900 N
Dynamic Torsional Moment Load Capacity M_t:  800 Nm
Mt0: 1160 Nm
Dynamic longitudinal moment load capacity ML: 740 Nm
Static longitudinal moment load capacity ML0: 1080 Nm
Accuracy Class: N – normal accurate
Preload Class: C1 – Low preload

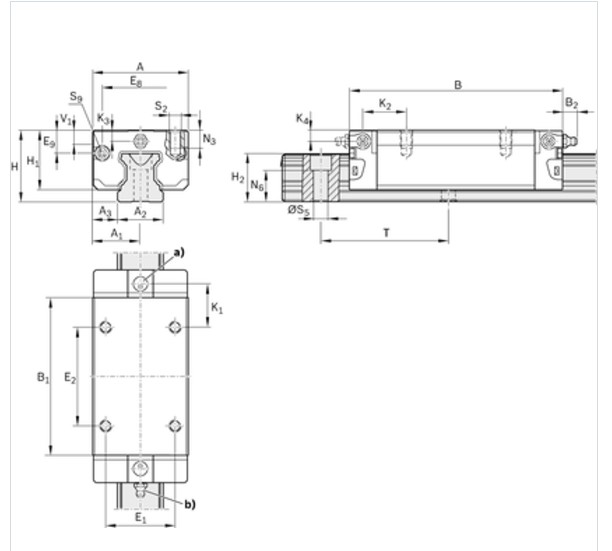

Dimensions
Width (A): 60 mm
Length (B): 119.7 mm
Height of system(H): 42 mm
Height of block (H₁): 35.35 mm
E1: 40 mm
E2: 60 mm
Admissible Operating Temperature: -10 °C … +80 °C
