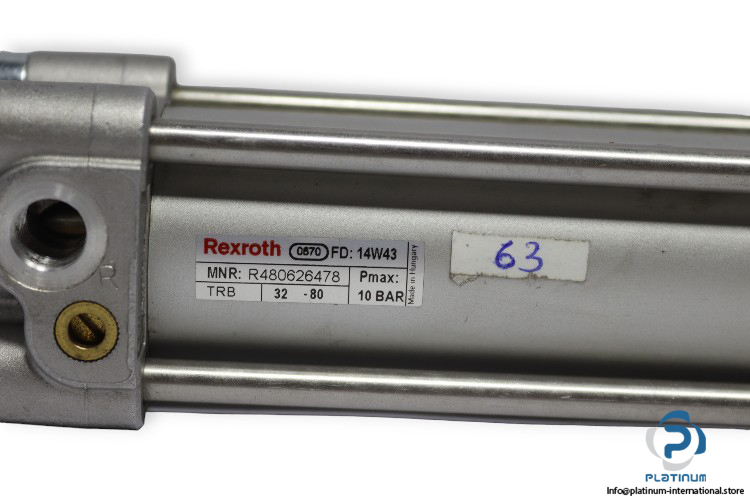

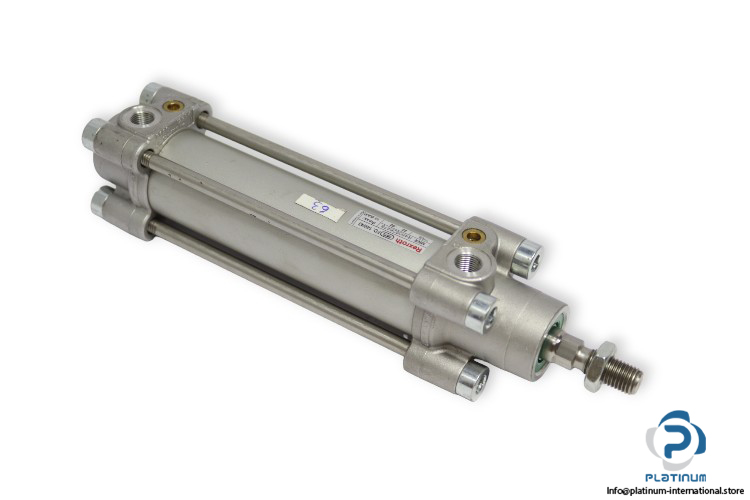

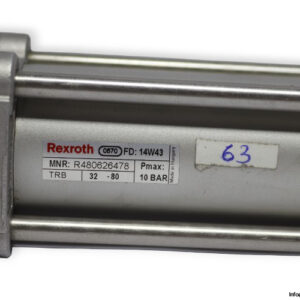

Rexroth R480626478 ISO Cylinder
The Rexroth R480626478 ISO Cylinder is a precision pneumatic actuator engineered for industrial automation. With a 32 mm bore, 80 mm stroke, and durable square housing, it provides reliable double-acting motion control for compressed air systems in high-performance environments.
Manufacturer: Rexroth
Type: ISO Cylinder
Model: R480626478
Technical information
- Media: Compressed Air
- Stroke (mm): 80
- Bore Diameter (mm): 32
- Bore × Stroke (mm): 32 × 80
- Rod Diameter (mm): 12
- Frame Dimensions (mm): 46 × 193
- Maximum Pressure (bar): 10
- Pneumatic Connection: 1/8
- Mode of Operation: Double Acting
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
