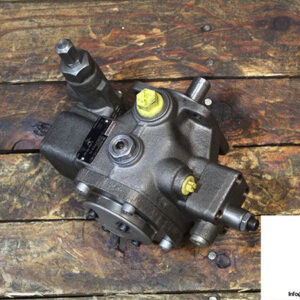

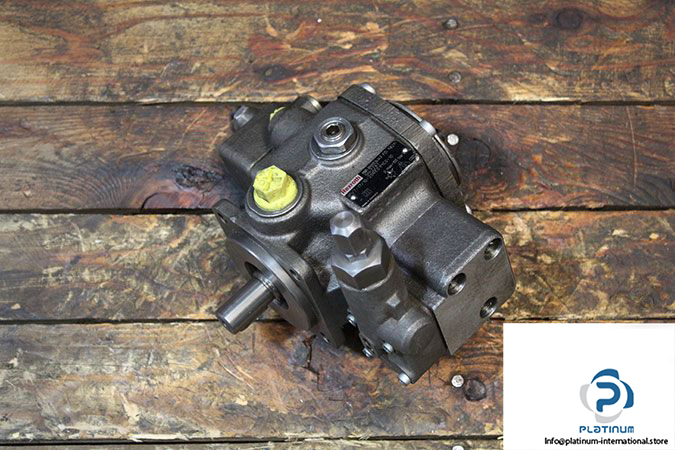

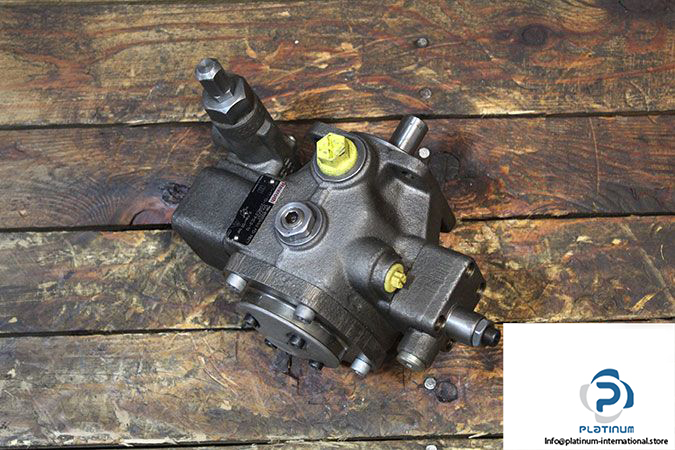

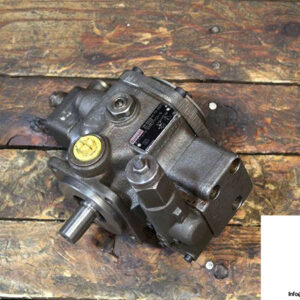

Manufacturer: Rexroth

Type: Variable vane pump

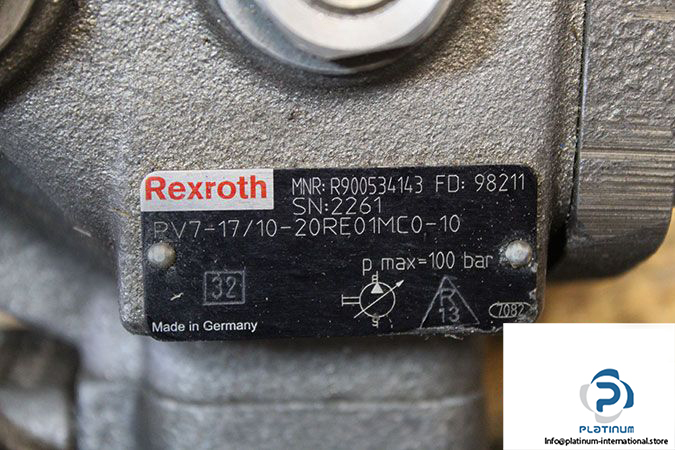

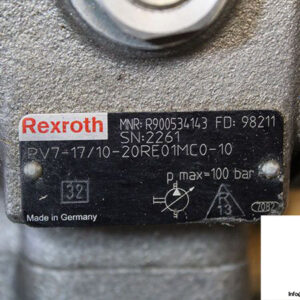

Model: PV7-17/10-20RE01MC0-10

MNR: R900534143

Frame sizes: 10

size: 20

Displacement: 20 cm³

Direction of Rotation: Clockwise

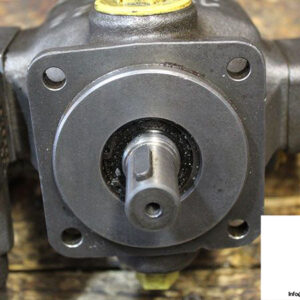

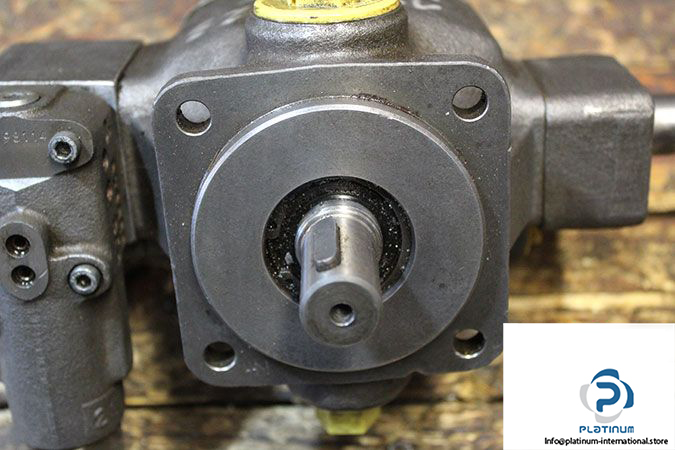

Shaft Diameter: 20 mm

Mounting Flange: ISO 3019-2 (2 holes)

Operating pressure: 100 bar

Drive Speed: 900 …. 1800 rpm

Flow Rate at 1450 rpm: 29 l/m

Power at 100 bar, 1450 rpm: 5.8 KW

Torque at 100 bar: 90 N.m

Viscosity Range: 16 ….  36 mm²/s

Weight: 12 kg
