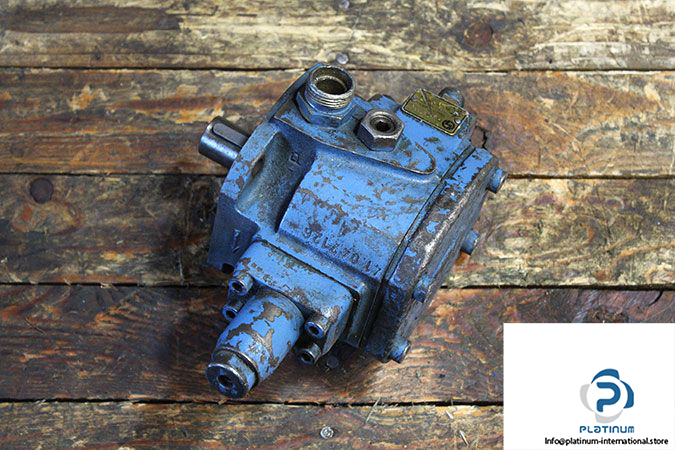

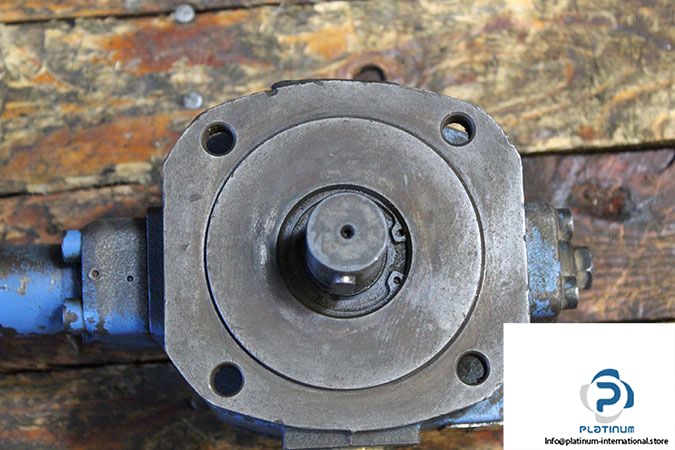

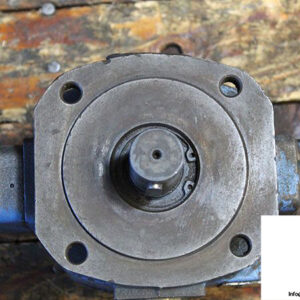

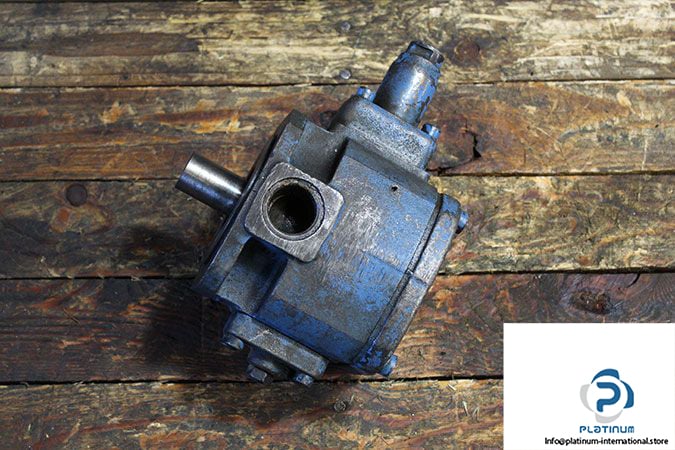

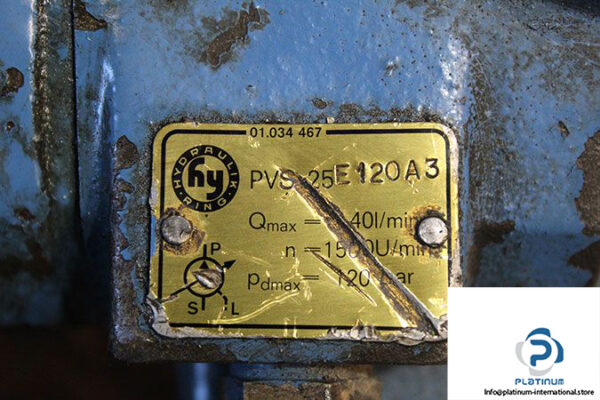

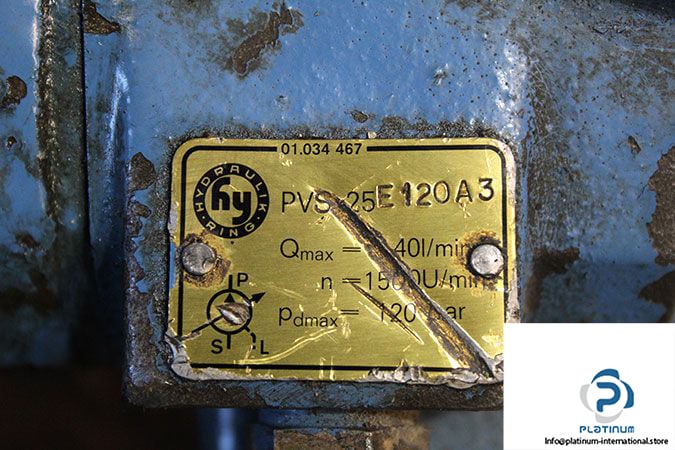

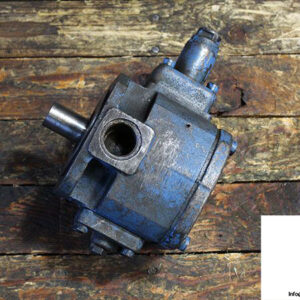

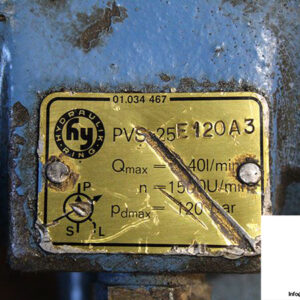

Hydraulik Ring PVS 25 E120A3 Variable Vane Single Pump

Manufacturer: Hydraulik Ring

Type: Variable vane Single pump

Model: PVS25E120A3



Size: 25

Displacement: 25 cm³

Direction of Rotation: Clockwise

Shaft Diameter:  28 mm

Input power: 9.9 KW

Max pressure: 120 bar

Speed Range: 1000 …. 1800 rpm

Actual Speed: 1500 min^-1

Flow Rate at 1500 rpm: 35 l/m

Max Flow Rate at 1500 rpm: 40 l/m

Ambient-temperature range: –10 … 70 °C

Viscosity Range: 22 ….  100 mm²/s

Weight: 14.5 Kg
