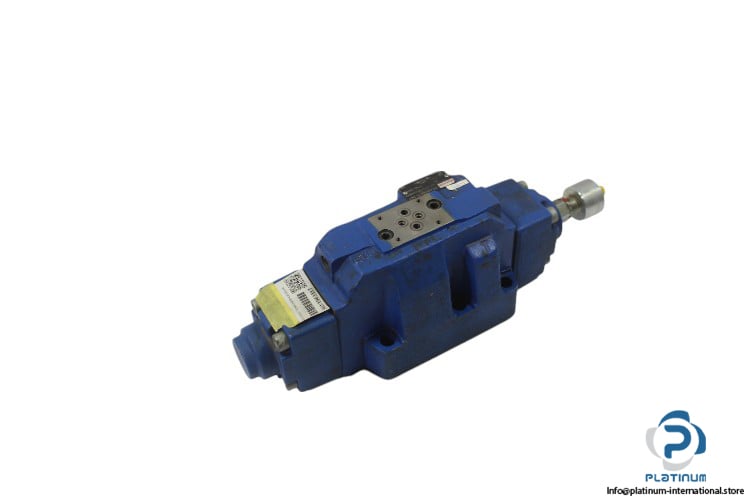

Rexroth H-4 WEH 25 C67/6EG24N9K4QMBG24 Directional Spool Valve

The Rexroth H-4 WEH 25 C67/6EG24N9K4QMBG24 Directional Spool Valve is a high-performance electro-hydraulic valve designed for precise fluid control in industrial hydraulic systems. Engineered for high-pressure applications, it ensures reliable operation under demanding conditions. The valve comes with a Rexroth R900174537 Pressure Switch (GIV50) for enhanced monitoring and control.

• Manufacturer: Rexroth
• Type: Directional Spool Valve

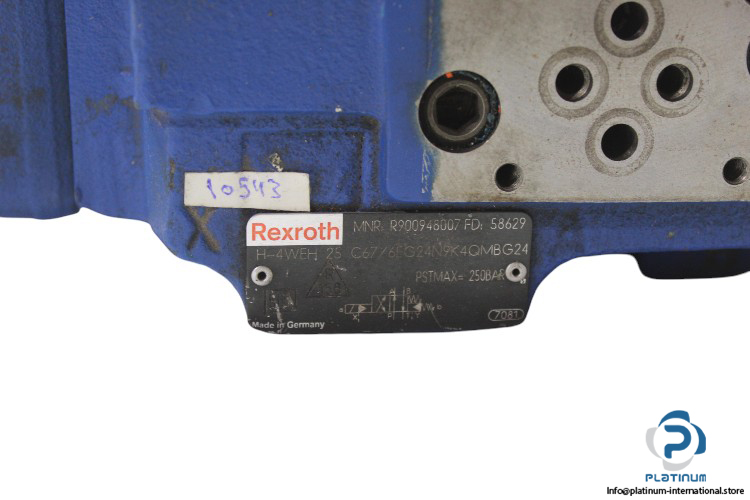

• Model: H-4 WEH 25 C67/6EG24N9K4QMBG24
• MNR: R900948007

Technical Specifications

• Nominal Size: NG25
• Type of Actuation: Electro-hydraulic
• Max. Working Pressure (Port P, A, B): 350 bar
• Max. Pressure (Port T): 250 bar
• Hydraulic Connection: Sub-Plate
• Fluid Temperature Range: -20 to 80 °C
• Direct Voltage: 24 V

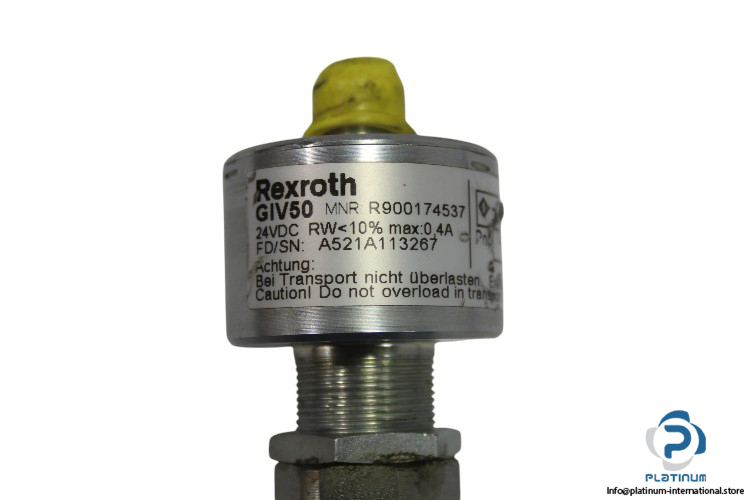

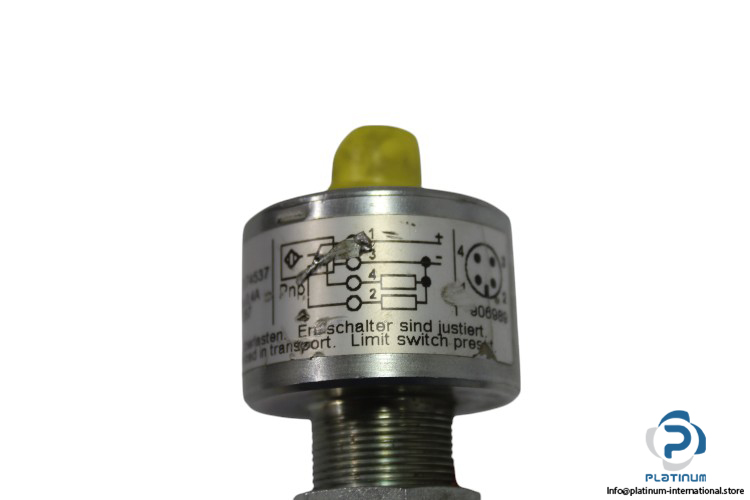

Attached Pressure Switch “ Rexroth R900174537 (GIV50)

• Connection: G ½, Threaded
• Electrical Connection: M12 Connector, 4-pin
• Supply Voltage: 24 V DC
• Current Rating: 0.4 A
