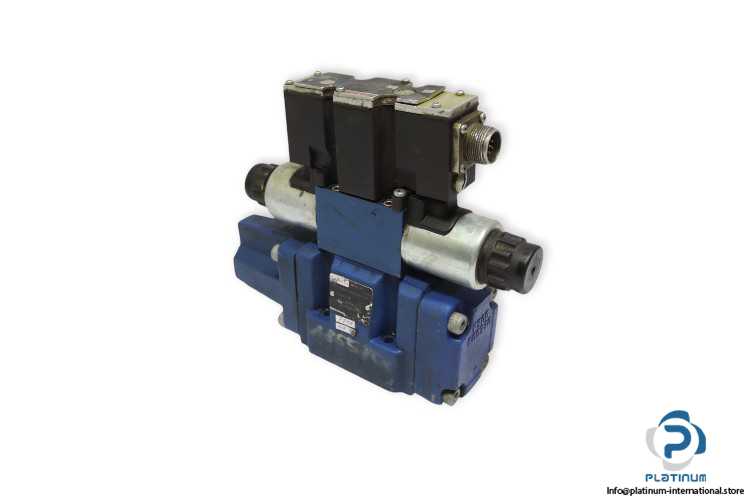

Manufacturer: REXROTH
Type: Proportional Directional Valve
Model: 4WRZE 10 E85-72/6EG24N9EK31/A1M
MNR: R901048979
Nominal Size: NG 10
Type of Actuation: Electro-hydraulic
Max. Working pressure (Port P, A, B): 350 bar
Max. Pressure (Port T): 250 bar
Hydraulic Connection: Sub-Plate
Fluid Temperature Range: -20 ….. +80 °C

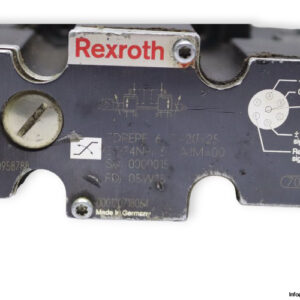

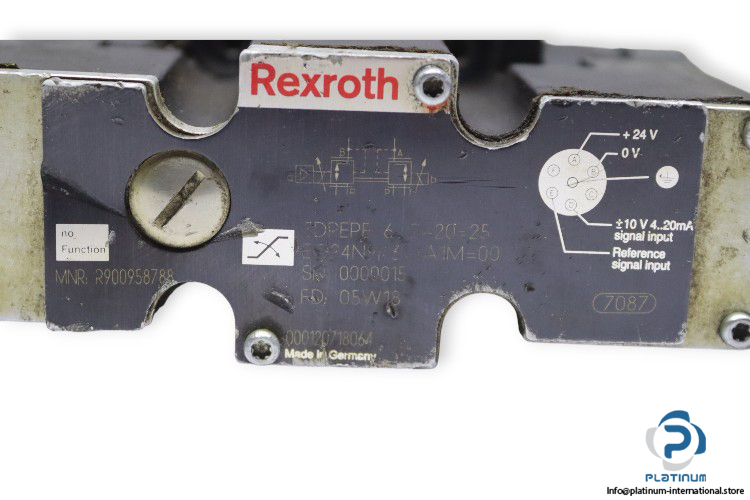

Attachment: REXROTH R900958788 PROPORTIONAL DIRECTIONAL VALVE
Manufacturer: REXROTH
Type: Proportional Directional Valve
Model: 3DREPE6 C-20=25EG24N9K31/A1M=00
MNR: R900958788
Size: NG 6
Actuation: Electrically
Type of Mounting: Sub plate
Voltage Supply: +24 VDC
Ambient temperature range: –20 …. +50 °C
Operating pressure range: Port P 30 …. 100 bar, Port T 0 … 30 bar
Maximum Flow: 15 l/m
Hydraulic fluid temperature range: –20 …. +80 °C
Viscosity range: 20 … 380 mm2/s
Signal Output: 4 … 20 mA

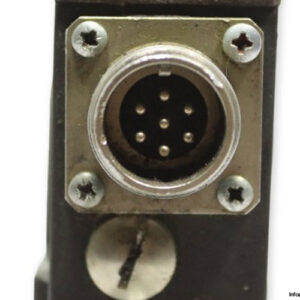

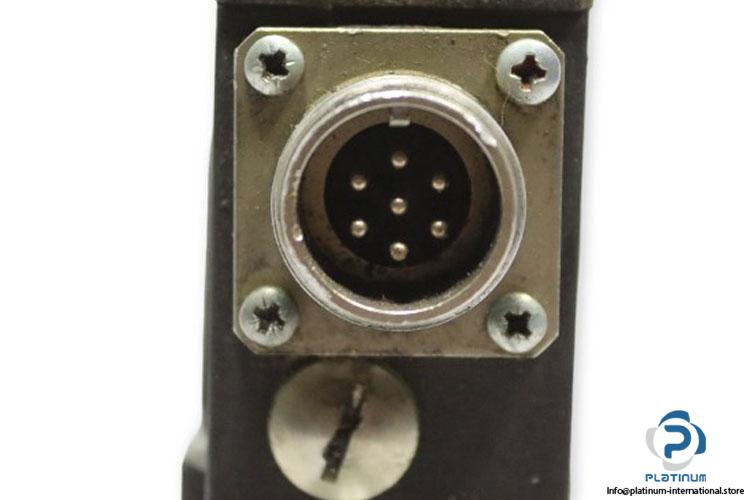

Electrical Connection: plug 7 Connectors
Seal material: NBR Seals
