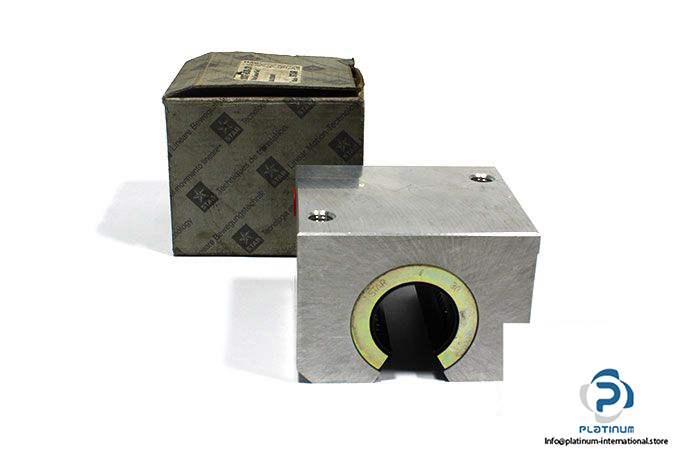

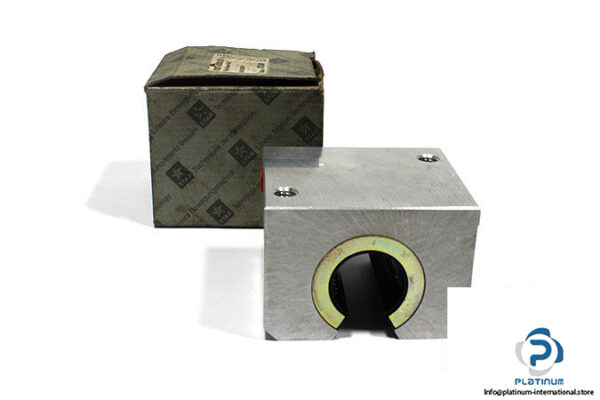

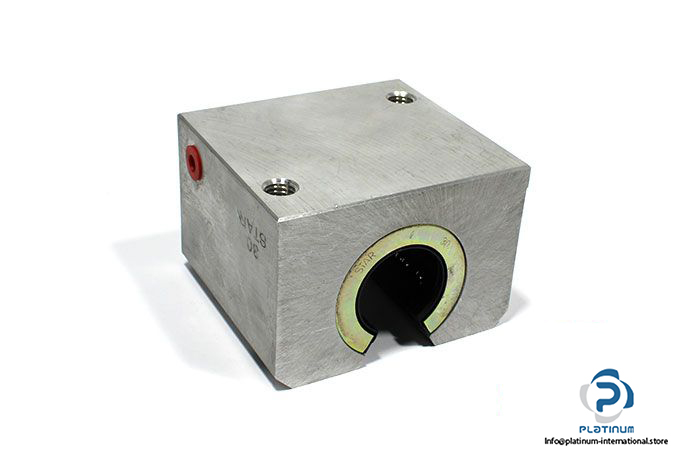

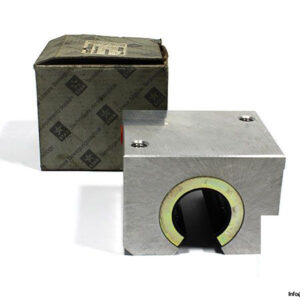

Manufacturer: REXROTH STAR

Type: Linear Sets with Super Linear Bushings A, Open Type

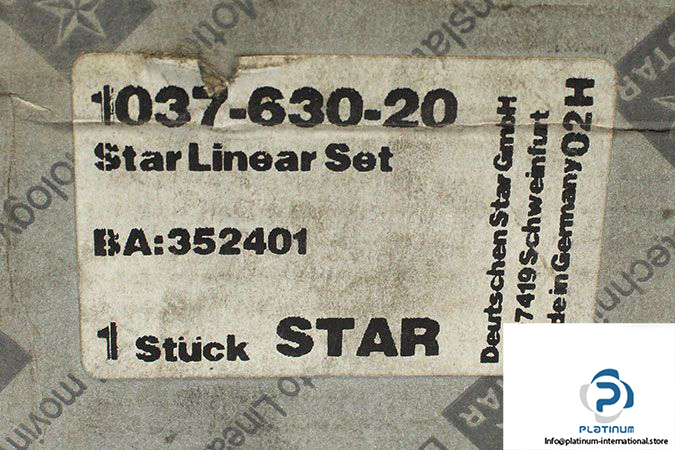

MNR: 103763020

Model: LSAO-A-30-DD

Shaft diameter d: 30 mm

Design type: Open Type

Housing Format: Aluminum

Dynamic Load Capacity C: 4470 N

Static Load Capacity C₀: 2880 N

Friction Force F_R: 2.5 N

Breakaway Force: 6 N

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 3 m/s

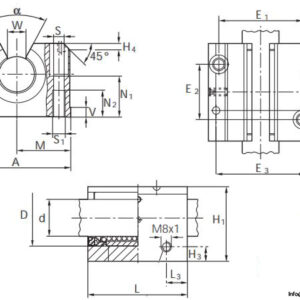

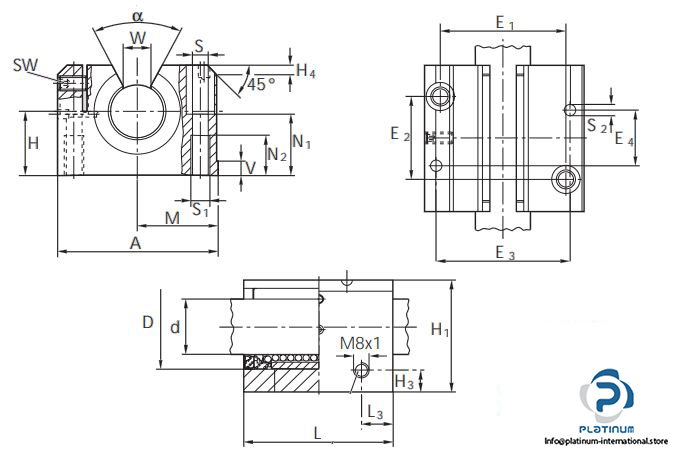

Dimensions:

A: 87 mm

L: 79 mm

H₁: 60 mm

E₁: 68 mm

E₂: 45 mm

Seals: With two seals

Operating temperature: -10… +80 °C

Weight: 0.87 kg
