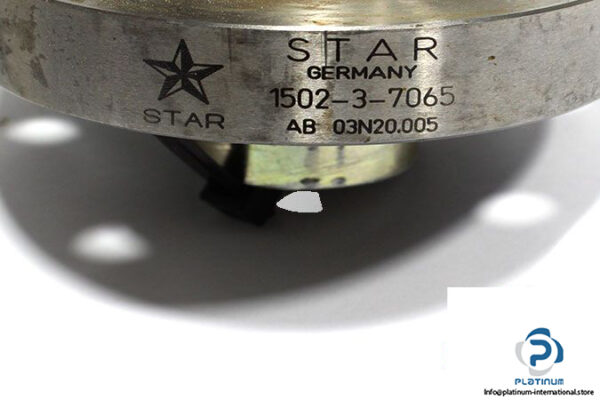

Manufacturer: REXROTH STAR

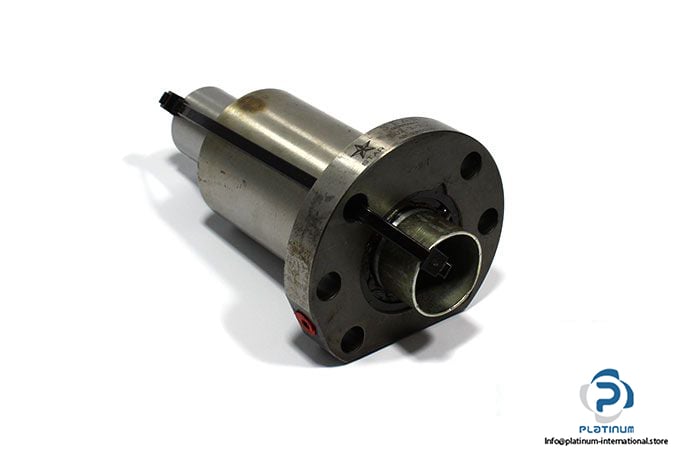

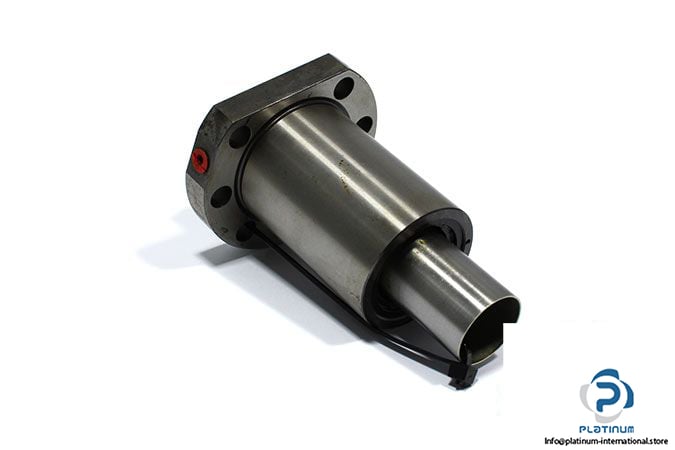

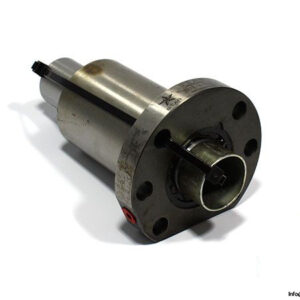

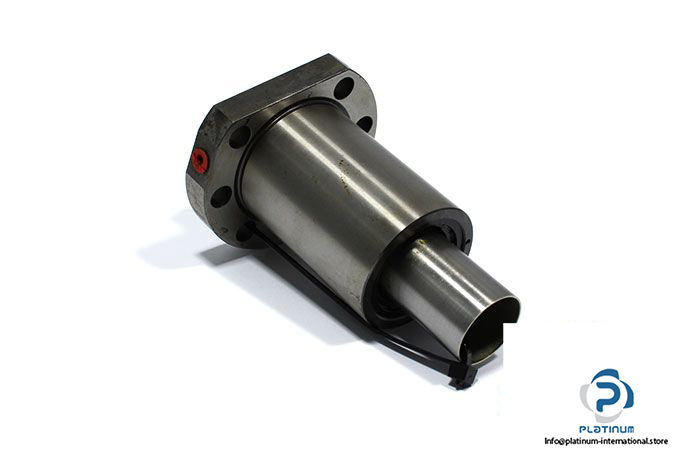

Type: Single Nut with Flange FEM-E-C

MNR: 150237065

Alternative Part No.: R150321085

Size: 32 x 20 R x 3.969-3

Nominal Diameter d₀: 32 mm

Ball Diameter D_W: 3.969 mm

Number of ball track turns i: 3

Lead P: 20 mm

Direction of Lead: Right-Hand Thread

Dynamic Load Capacity C: 19600 N

Static Load Capacity C₀: 33600 N

Nut Rigidity: 500 N/µm

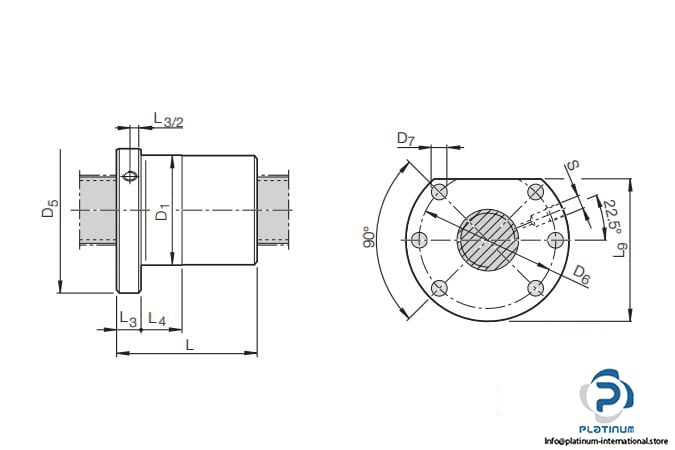

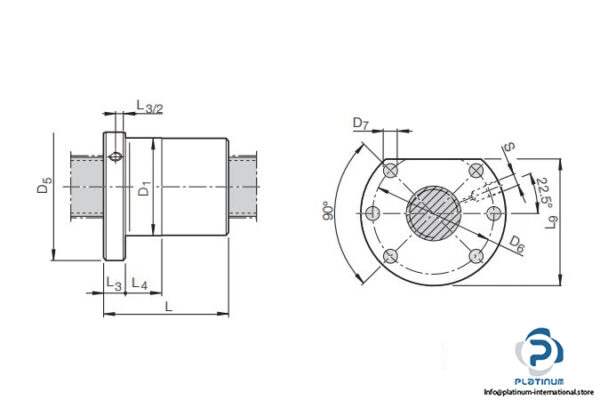

Dimensions:

D₁: 50 mm

D₅: 80 mm

L: 84 mm
