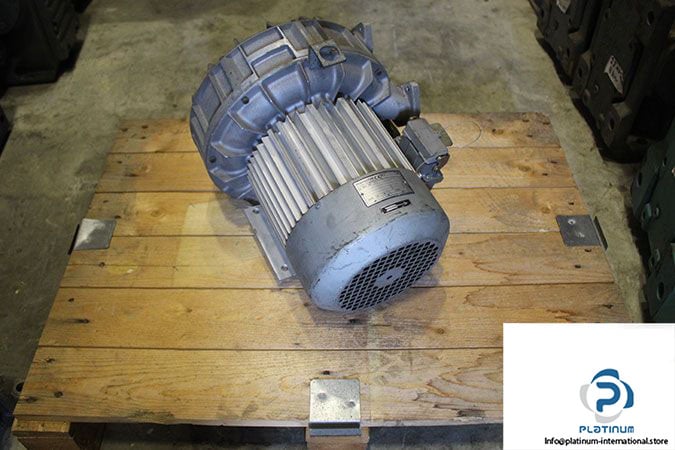

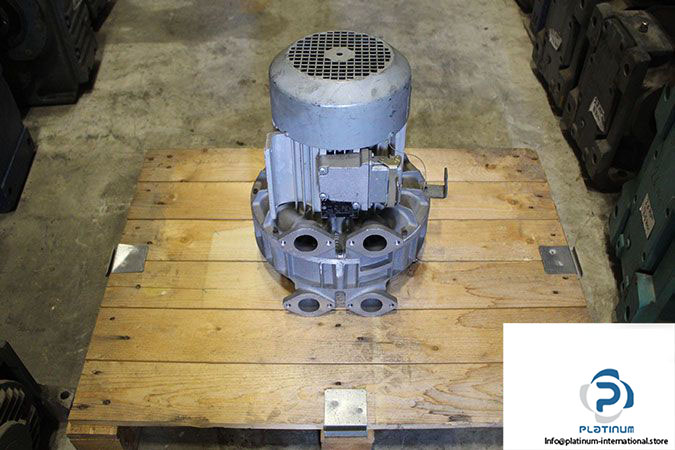

RIETSCHLE SPH160(01) VACUUM PUMP WITH ATB MAGNET MOTOR

The RIETSCHLE SPH160(01) Vacuum Pump is engineered for continuous-duty industrial vacuum systems. Integrated with a high-efficiency ATB MF100S/6X-11 Magnet Motor, it delivers reliable and powerful suction performance with superior insulation and protection standards, making it ideal for demanding industrial environments.

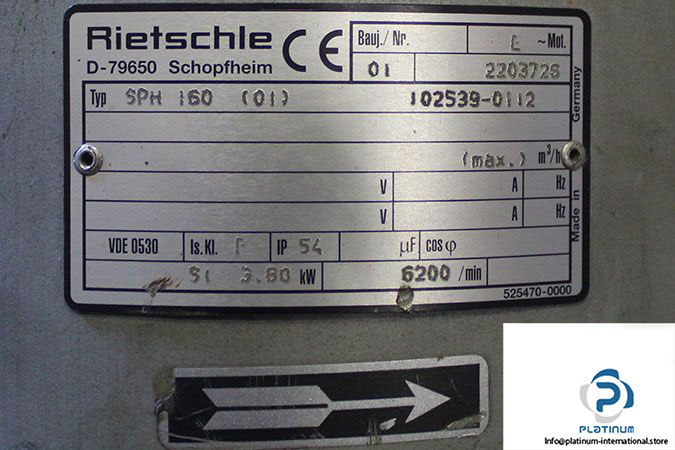

Manufacturer: RIETSCHLE
Type: Vacuum Pump
Model: SPH160(01)
Part No.: 102539-0112

Vacuum Pump Technical Information

• Motor Rating: 3.8 kW
• Rated Speed: 6200 rpm
• Protection Class: IP54
• Insulation Class: F
• Duty: S1 (Continuous)

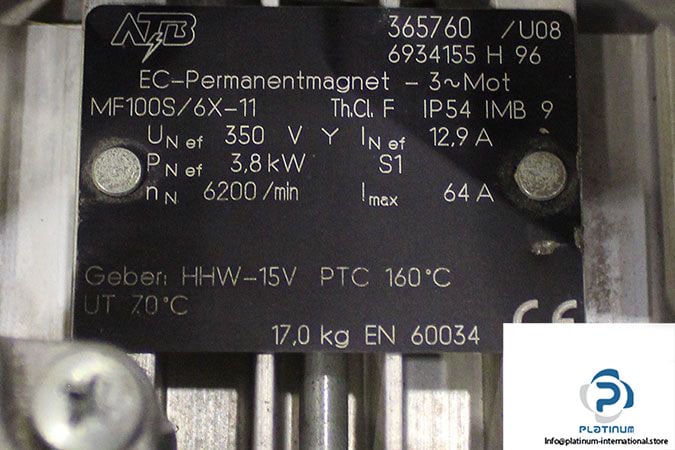

Magnet Motor (ATB MF100S/6X-11) Technical Information

• Part No.: 365760/U08 / 6934155 H 96
• Voltage Effect: 350V / Star
• Power Effect: 3.8 kW
• Speed Effect: 6200 rpm
• Current Effect: 12.9 A
• Maximum Current: 64 A
• Mounting: Foot Flange Motor
• Frame Size: 100S
• Number of Poles: 6
• Encoder Model: HHW-15V PTC 160°C
• Standard: EN 60034
