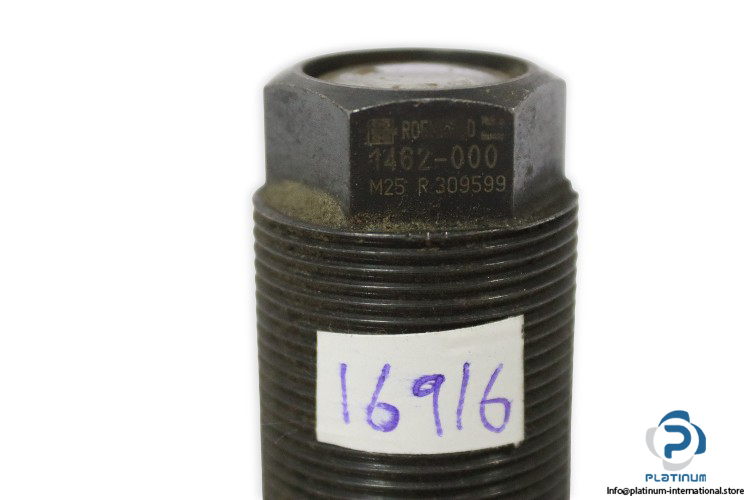

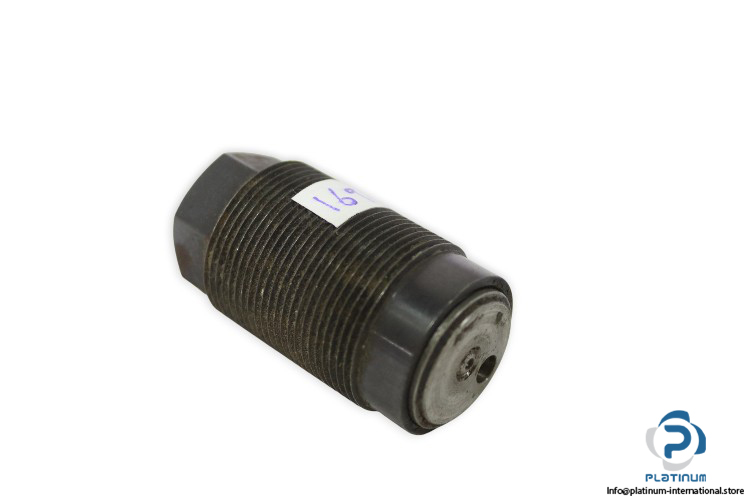

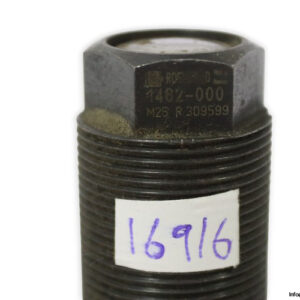

Roemheld 1462000 Hydraulic Threaded-Body Cylinder
A high-performance hydraulic threaded-body cylinder engineered for precision clamping, reliable force output, and long service life. Built with hardened materials and a compact threaded design, it is ideal for CNC fixtures, machining centers, clamping stations, and industrial automation systems.
Manufacturer: Roemheld
Type: Hydraulic Threaded-Body Cylinder
Model: 1462000
Code: M25 R 309599
Technical Information
- Piston Diameter: 20 mm
- Stroke: 15 mm
- Piston Material: Casehardening steel, hardened
- Cylinder Body: Free-cutting steel
- Minimum Operating Pressure: 10 bar
- Seating Torque: 60 Nm
- Clamping Force: 3.1 kN at 100 bar, 15.7 kN at 500 bar
- Spring Return Force (Min.): 78 N
- Piston Rod End: Hexagon
Physical Characteristics
- Threaded cylindrical steel body
- Hexagonal head
- End face with hydraulic port or mechanical interface
- Heavy-duty construction for industrial use
- Black coated / hardened finish
Used In
- CNC fixtures
- Machining centers
- Clamping stations
- Industrial positioning
- Automation devices
