Manufacturer: ROLLWAY

Type: Single Row Thrust Ball Bearings

Model: 51122

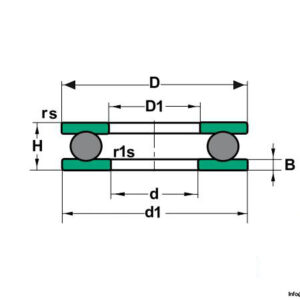

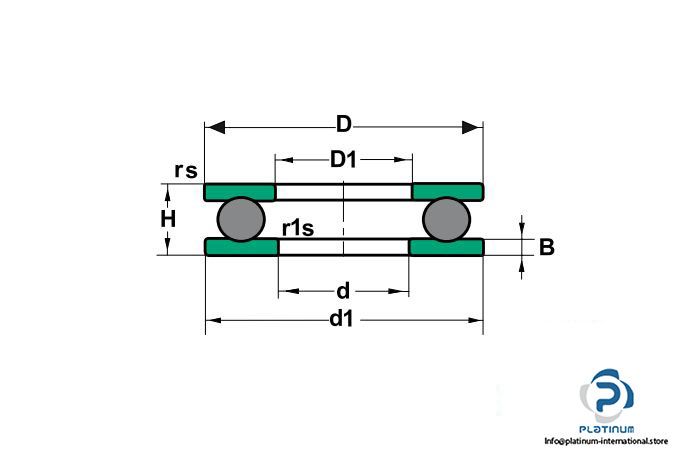

Dimensions

Bore diameter d: 110 mm

Outer diameter D: 145 mm

Height H: 25 mm

Outside diameter shaft washer d₁: 145 mm

Inner diameter housing washer D₁: 112 mm

Minimum chamfer dimension r_{1,2 min}: 1 mm

Basic load ratings:

Dynamic C_a: 87 kN

Static C_0a: 288 kN

Speed limits:

Grease: 2500 rpm

Oil: 2200 rpm

Cage: Steel Cage

Weight: 1.1 kg
