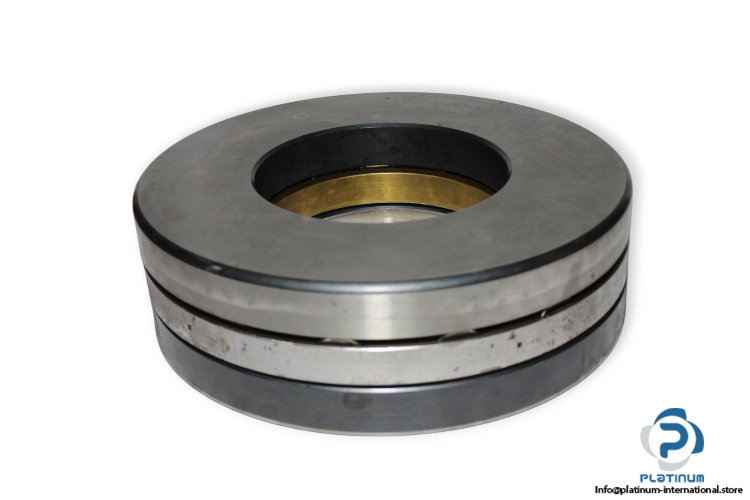

INA 89440 M Axial Cylindrical Roller Bearing
Used
In stock1 unitReady to ship
2 660,00$
Manufacturer:
Schaeffler INA
Type:
Axial Cylindrical Roller Bearing, single direction
Model:
89440M
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schaeffler INA
Type: Axial Cylindrical Roller Bearing, single direction
Model: 89440M

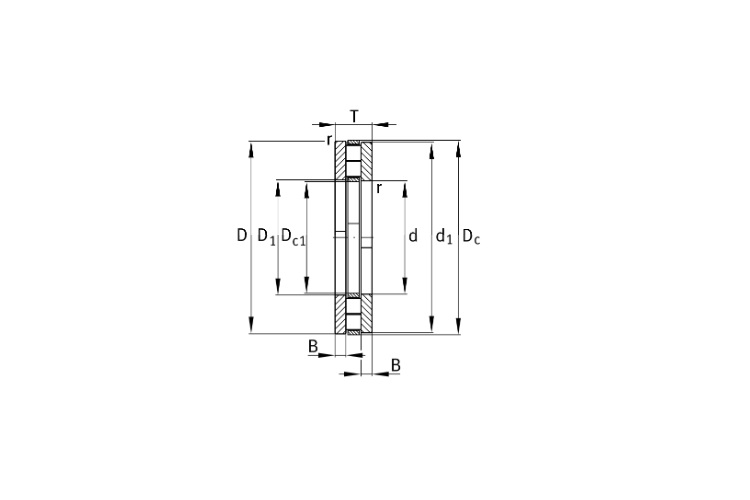

Dimensions
Bore Diameter d: 200 mm
Outer Diameter D: 400 mm
Height T: 122 mm
Minimum chamfer dimension rmin: 5 mm
Basic Load Ratings, Axial:
Dynamic Ca: 2700000 N
Static C0a: 10200000 N
Fatigue load limit: 900000 N
Limiting speed: 960 rpm
Reference speed: 305 rpm
Cage: Brass

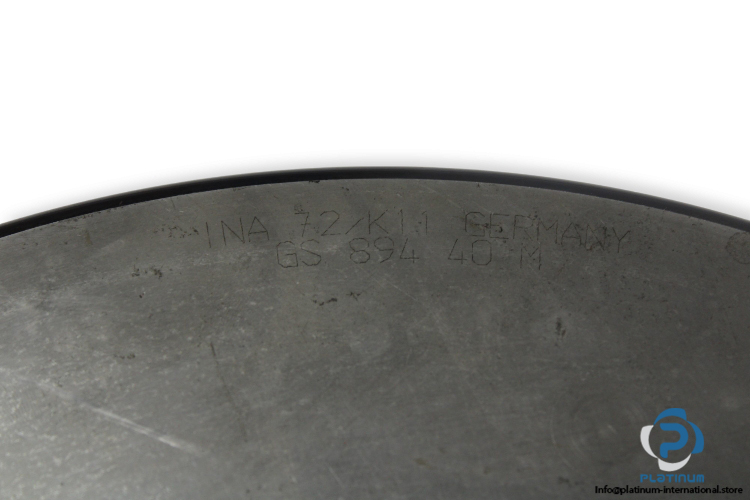

Housing Washer: GS89440
Shaft washer: WS89440

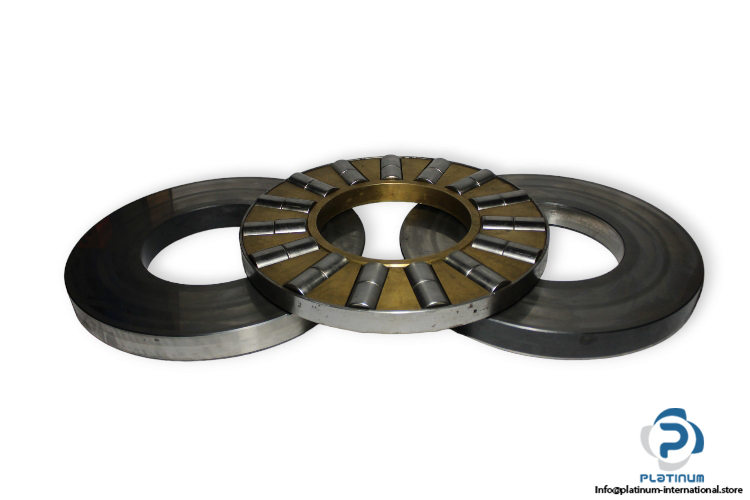

Axial roller and cage assembly: K89440-M
Operating temperature: -20 °C… 120 °C
