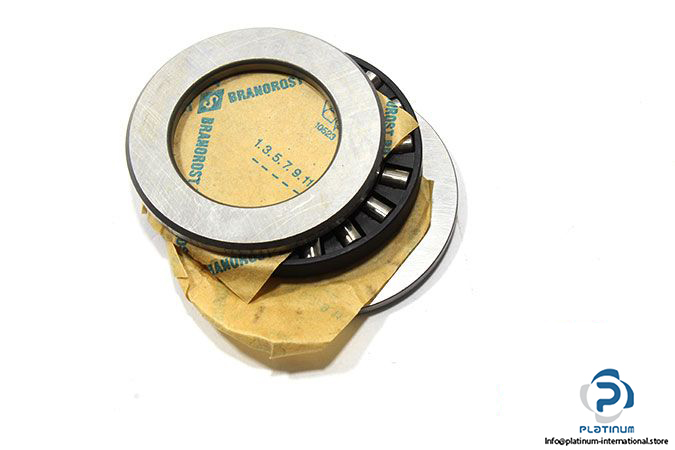

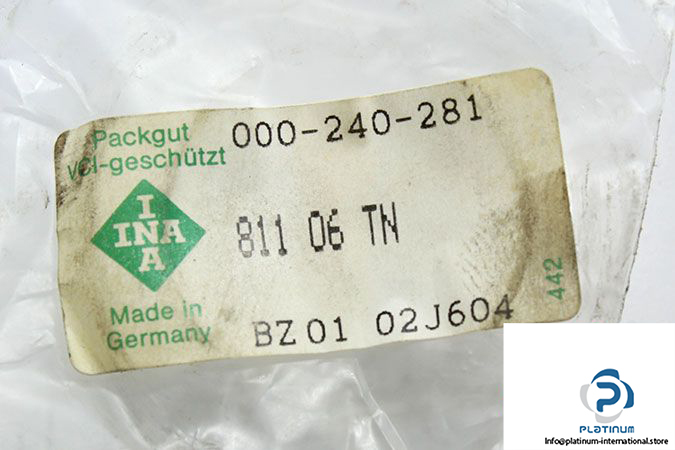

INA 81106 TN Axial Cylindrical Roller Bearing

Manufacturer: Schaeffler INA

Type: Axial cylindrical roller bearing

Part No: ‎811 06 TN‎

Replaces: 81106TVPB1, 81106-TV

Bore Diameter d: 30 mm

Outer diameter D: 47 mm

Width T: 11 mm

Basic load ratings:

Dynamic C_r: 35.5 kN

Static C_0r: 86 kN

Fatigue load rating: 8.2 kN

Limiting speed: 7500 rpm

Reference Speed: 3050 rpm

Cage: TV/TN; Solid cage made from polyamide PA66

Weight: 0.06 kg
