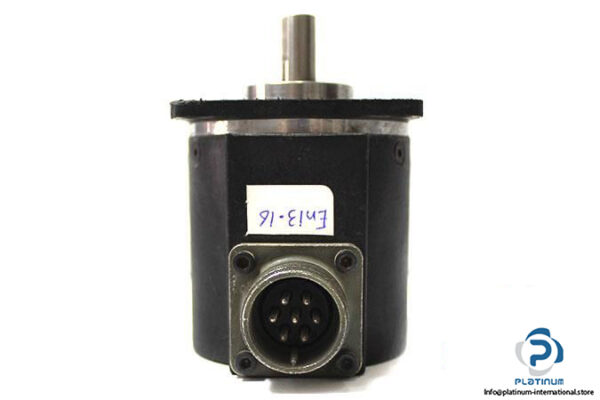

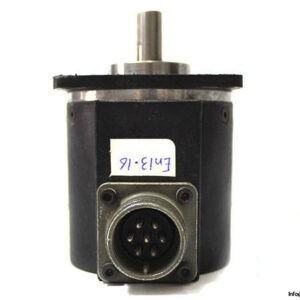

SELET SI-0-63-BZ-2000-EA-10/30-MLR-10 INCREMENTAL ENCODER
The SELET SI-0-63-BZ-2000-EA-10/30-MLR-10 is a high-resolution incremental encoder designed for precise motion feedback in industrial automation systems. Engineered with a durable square flange and solid shaft construction, it offers high accuracy, dependable performance, and robust protection in demanding environments.
Manufacturer: SELET
Type: Incremental Encoder
Model: SI-0-63-BZ-2000-EA-10/30-MLR-10
Technical Information

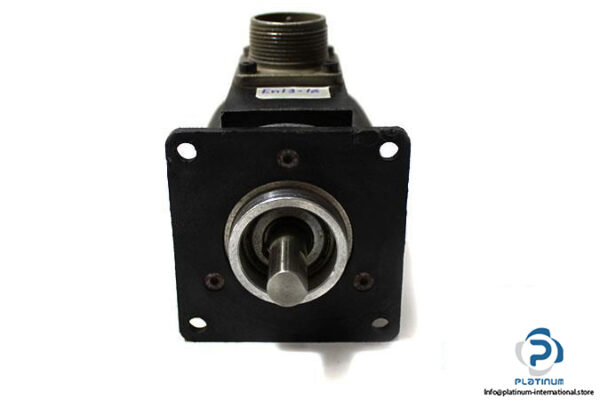

- Flange Type: Square Flange
- Shaft Type: Solid Shaft
- Shaft Diameter: 10 mm
- Frame Size Diameter: 63 mm
- Resolution: 2000 pulses per revolution (PPR)
- Voltage Supply: 10 / 30 V DC
- Output Circuits: Push-Pull (HTL)
- Output Frequency: 0 / 100 KHz
- Connection Type: Radial Military Connector (7 pins)
- Protection Class: IP65
