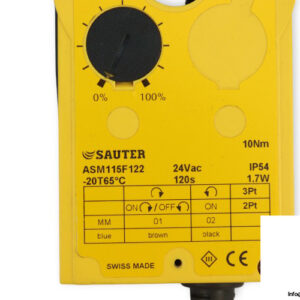

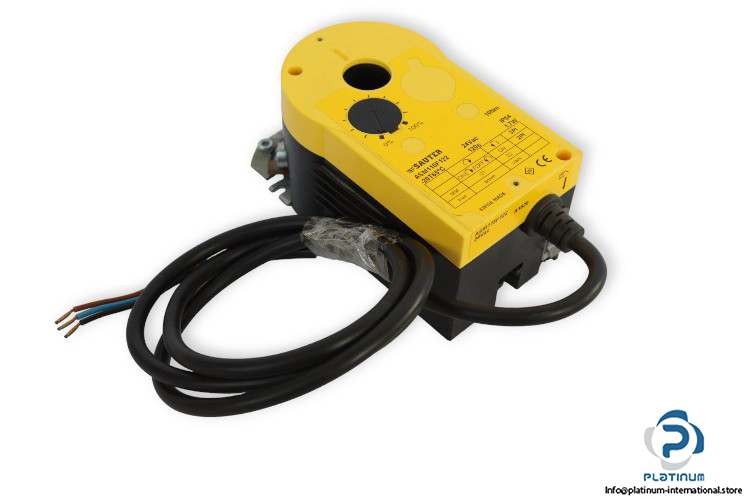

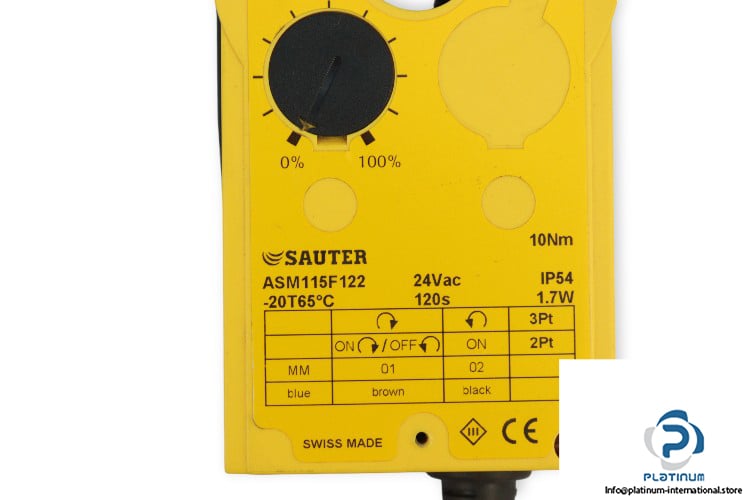

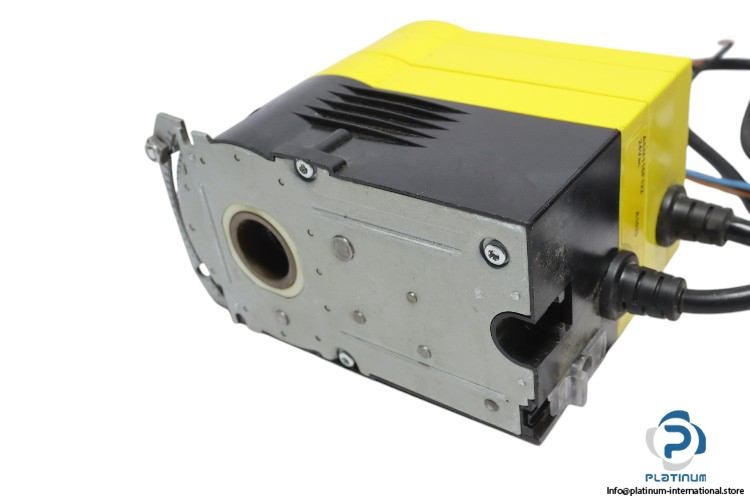

Manufacture: Sauter
Type: Damper Actuator

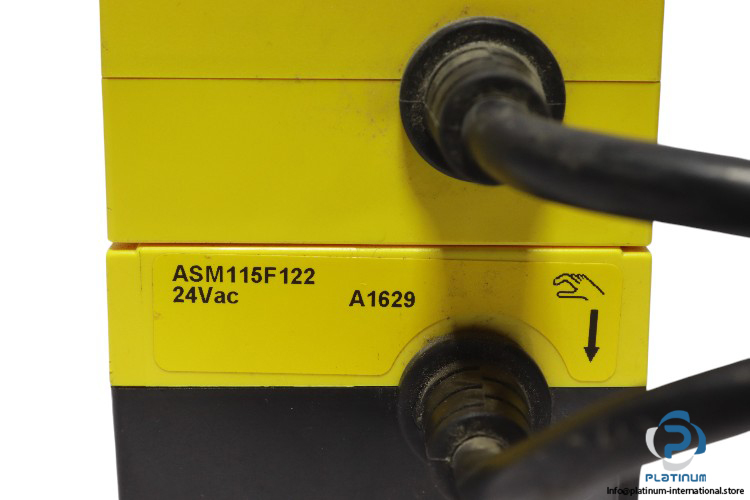

Model: ASM115F122

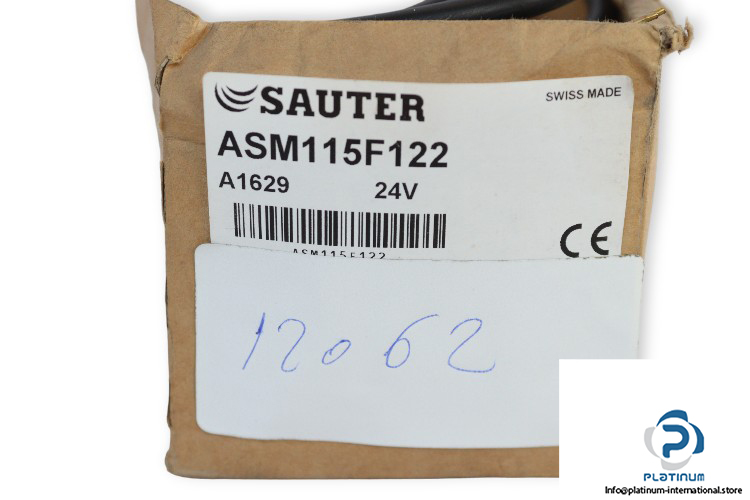

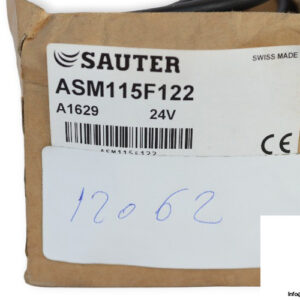

Part No.: A1629

Torque: 10 Nm
Nominal voltage: 24 V AC
Power consumption: 1.7 W
Admissible damper shaft: Ø 8…16 mm, –¡ 6,5…12.5 mm
Admissible damper shaft (hardness): Max. 300 HV
Operating noise: < 30 dB (A)
Response time: 200 ms
Angle of rotation: Max. 95°
Running time motor: 120s
Degree of protection: IP54
Control: 2-/3-point
Housing: Lower section black, upper section yellow
Housing material: Fire-retardant plastic

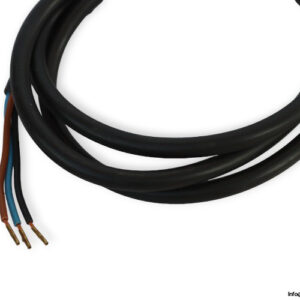

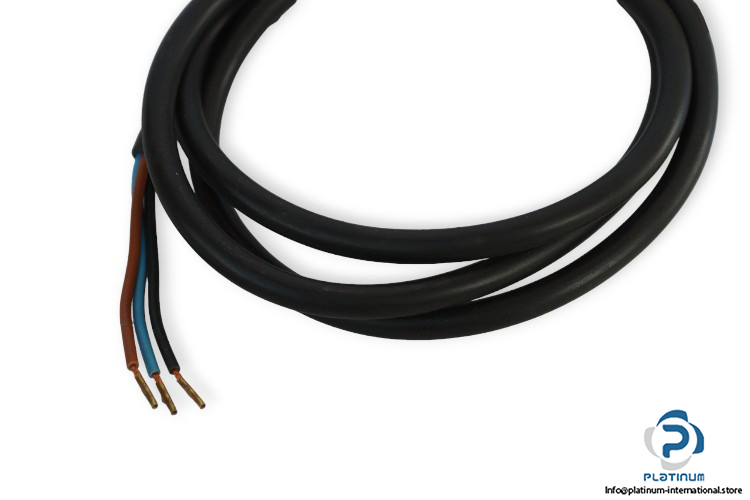

Power cable: 1.2 m long, 3 × 0.75 mm² (3 wires)
Admissible ambient temperature: -20 … 65 °C
Dimensions: 70 x 95 x 138 mm
