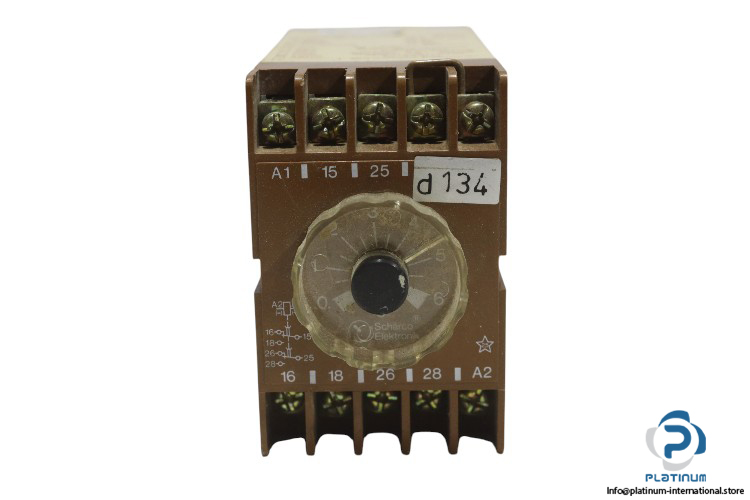

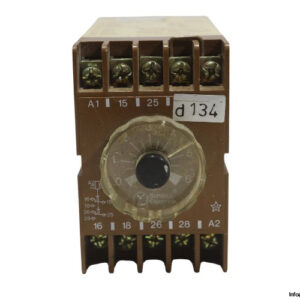

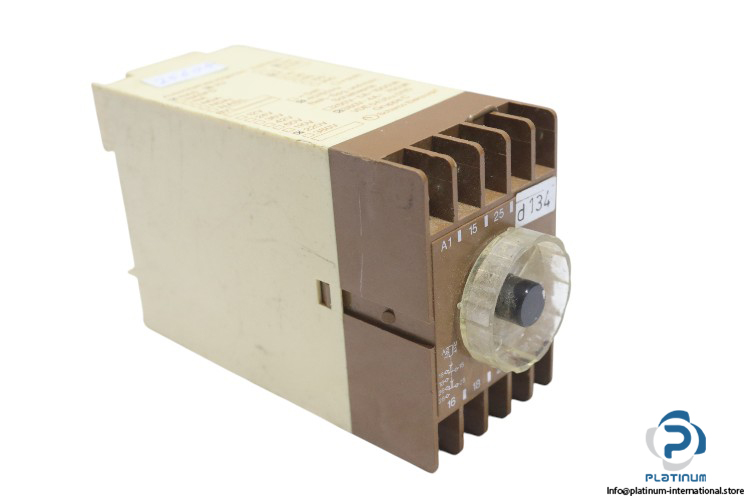

SCHARCO NAS-2U Time Relay
The SCHARCO NAS2U Time Relay is a versatile and reliable relay designed to manage time-controlled operations. With a time range of 0 to 6 seconds, it is suitable for a wide range of industrial applications. The relay features 2 changeover contacts and is rated for 220 V AC operation, with 4-pole connectivity and robust contact ratings.
Manufacturer: SCHARCO
Type: Time Relay
Model: NAS 2U

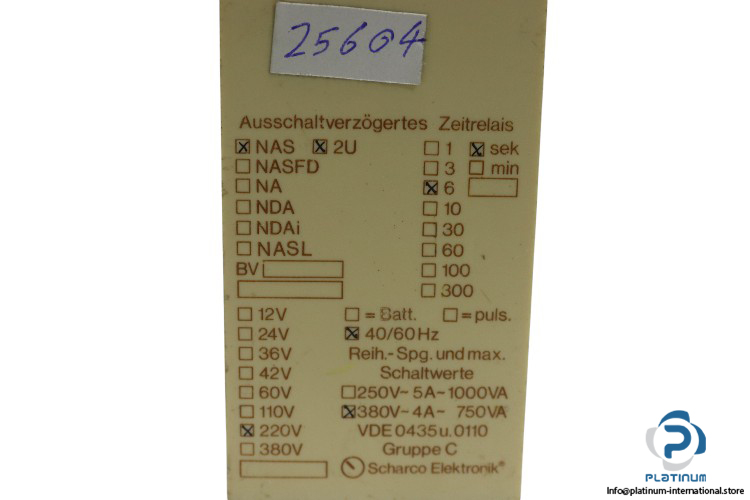

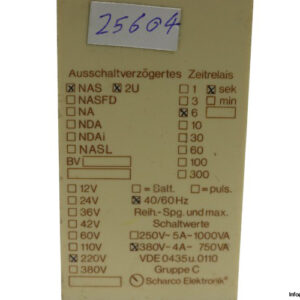

Technical Information:
- Rated Voltage: 220 V AC
- Frequency: 40 / 60 Hz
- Time Range: 0 / 6 sec
- Contact: 2 Changeover (CO)
- Contact Ratings: 380 V AC, 4 A, 750 W
- Number of Poles: 4-Pole
