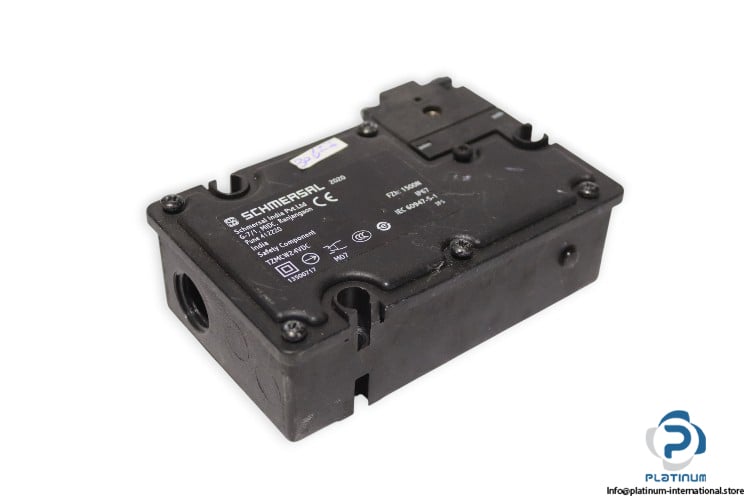

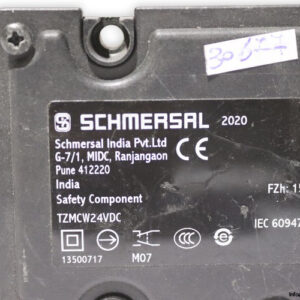

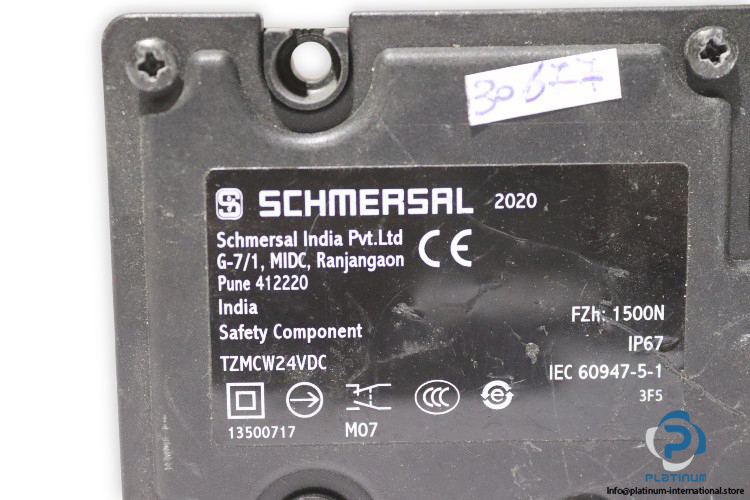

Schmersal TZMCW24VDC Thermoplastic Enclosure

The Schmersal TZMCW24VDC is a robust thermoplastic enclosure from the TZM family, engineered for secure machine safety applications. With high locking force and durable housing, it ensures reliable performance under demanding industrial conditions.

Manufacturer: SCHMERSAL
Type: Thermoplastic Enclosure
Model: TZMCW24VDC
REF NO: 50000080 M07
Family: TZM

Technical Information

• Locking Force: 1500 N
• Holding Force FZh (EN ISO 14119): 1500 N
• Latching Force: 20 N
• Positive Break Travel: 3.5 mm
• Positive Break Force Per NC Contact (Minimum): 20 N
• Positive Break Force (Minimum): 20 N
• Actuating Speed (Maximum): 0.3 m/s
• Mounting: Screws
• Fixing Screws: 3x M6
• Tightening Torque (Housing Cover): Min 0.8 Nm / Max 0.8 Nm
• Length of Sensor: 41 mm
• Width of Sensor: 129 mm
• Height of Sensor: 92.5 mm
• Degree of Protection: IP65, IP67
• Ambient Temperature: +0 … +50 °C
• Thermal Test Current: 4 A
• Rated Control Voltage: 24 VDC
• Required Rated Short-Circuit Current: 1,000 A
• Electrical Power Consumption (Maximum): 8.5 W
• Switching Principle: Slow Action
