Schmersal TZMCW24VDC Thermoplastic Enclosure
Used
In stock2 unitsReady to ship
Thermoplastic Enclosure
Schmersal TZMCW24VDC thermoplastic enclosure with 1500 N locking force, 24 VDC rated control voltage, IP65/IP67 protection, and slow action switching.24enclosurefamilyIndustrialIP65IP67MachineProtectionSafetySchmersalSwitchthermoplasticTZMTZMCW24VDCVDC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

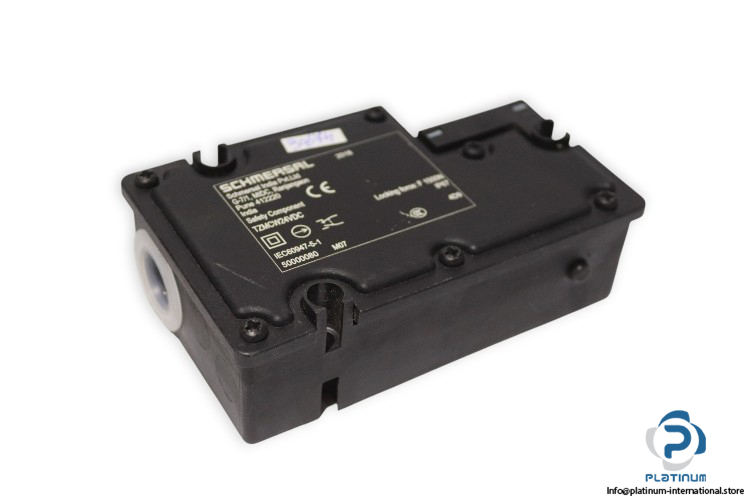

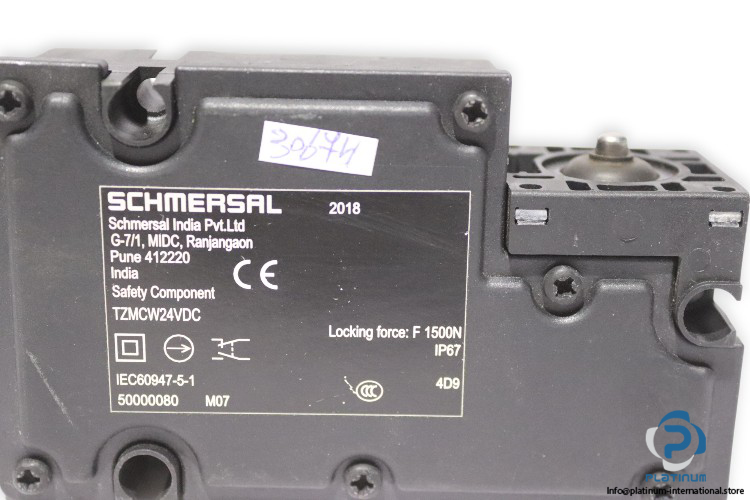

Schmersal TZMCW24VDC Thermoplastic Enclosure
The Schmersal TZMCW24VDC is a robust thermoplastic enclosure from the TZM family, engineered for secure machine safety applications. With high locking force and durable housing, it ensures reliable performance under demanding industrial conditions.
Manufacturer: SCHMERSAL
Type: Thermoplastic Enclosure
Model: TZMCW24VDC
REF NO: 50000080 M07
Family: TZM
| Locking Force | 1500 N |
| Holding Force FZh (EN ISO 14119) | 1500 N |
| Latching Force | 20 N |
| Positive Break Travel | 3.5 mm |
| Positive Break Force Per NC Contact (Minimum) | 20 N |
| Positive Break Force (Minimum) | 20 N |
| Actuating Speed (Maximum) | 0.3 m/s |
| Mounting | Screws |
| Fixing Screws | 3x M6 |
| Tightening Torque (Housing Cover) | Min 0.8 Nm / Max 0.8 Nm |
| Length of Sensor | 41 mm |
| Width of Sensor | 129 mm |
| Height of Sensor | 92.5 mm |
| Degree of Protection | IP65, IP67 |
| Ambient Temperature | +0 ... +50 °C |
| Thermal Test Current | 4 A |
| Rated Control Voltage | 24 VDC |
| Required Rated Short-Circuit Current | 1,000 A |
| Electrical Power Consumption (Maximum) | 8.5 W |
| Switching Principle | Slow Action |
