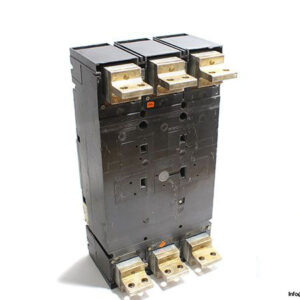

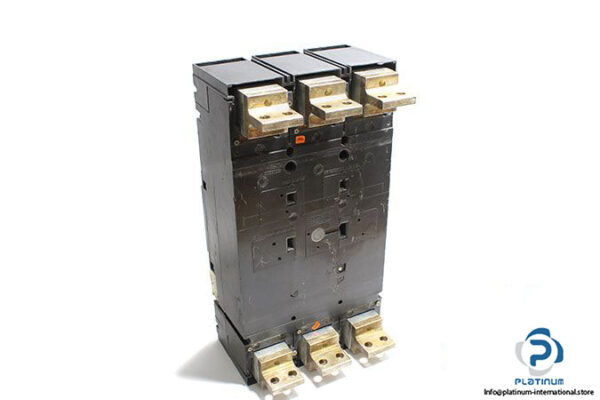

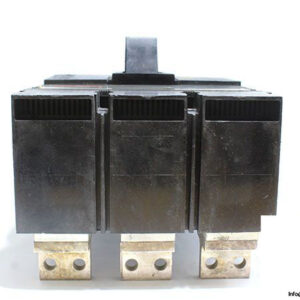

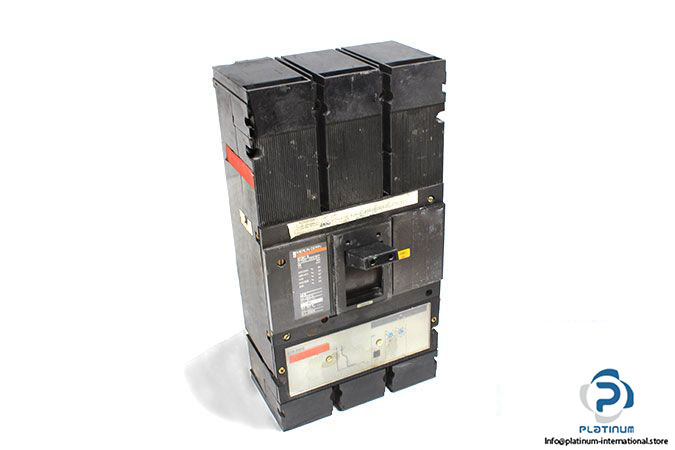

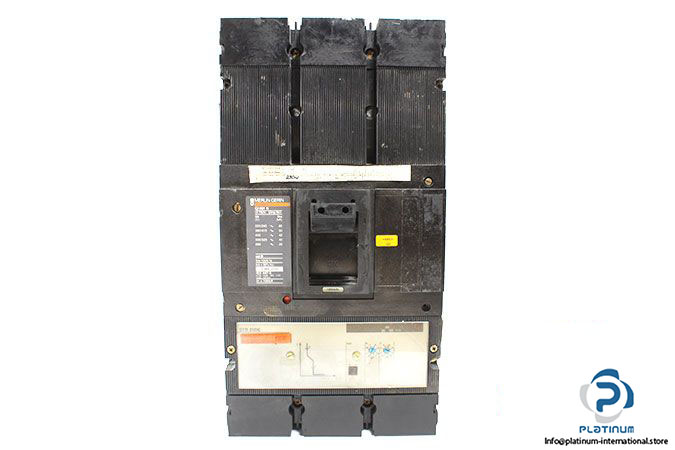

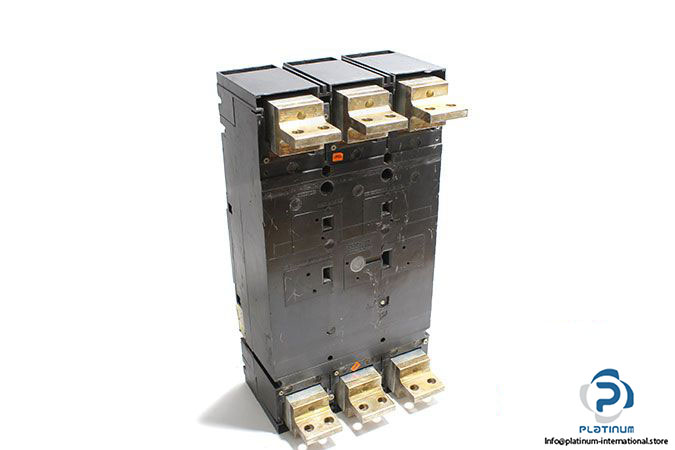

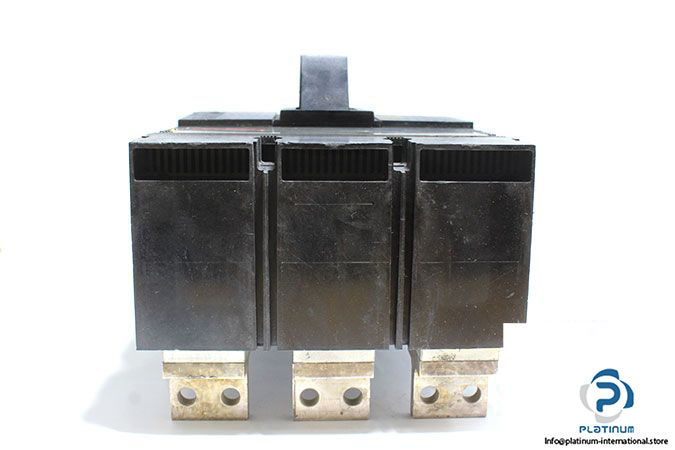

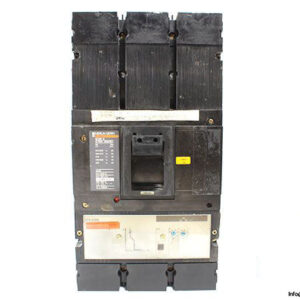

Manufacturer: Schneider Merlin Gerin
Type: Circuit Breaker
Range: Compact

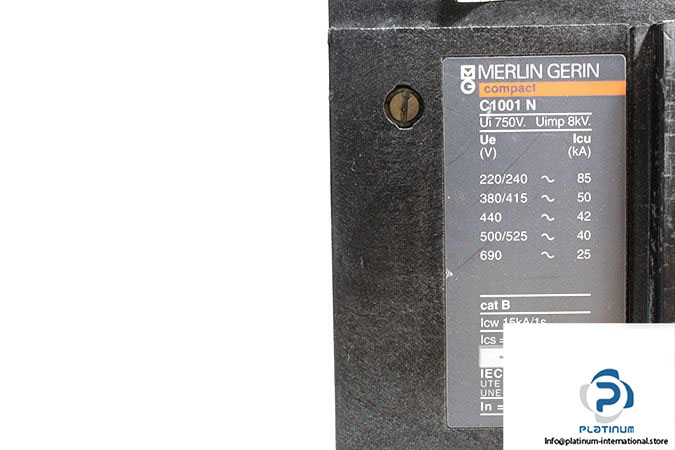

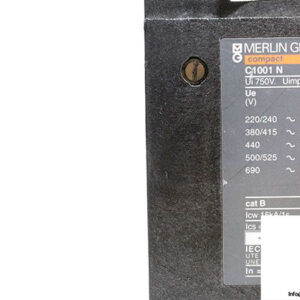

Circuit Breaker Model: C1001N
Trip Unit Model: STR25DE
Part No.: 46610
Number of Poles: 3
Rated Current (In): 1000
Rated Operational Voltage (Ue): 690 V AC
Rated Insulation Voltage (Ui): 750 V AC 50/60 Hz
Rated Impulse (Uimp): 8 kV
Breaking Capacity (Icu):
85 kA (220…240 V)
50 kA (380…415 V)
25 kA (690 V)
Trip Unit Technology: Electronic
Mounting Mode: Fixed
Service Frequency: 50/60 Hz
Standards: NEMA AB1 / IEC 60947-2 / EN 60947-2
Dimensions ( W x D x H): 210 x 162 x 399 mm
Weight: 16.3 kg
