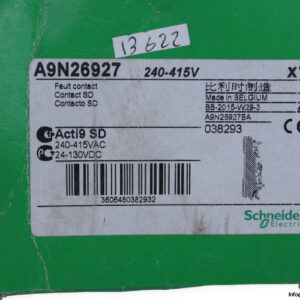

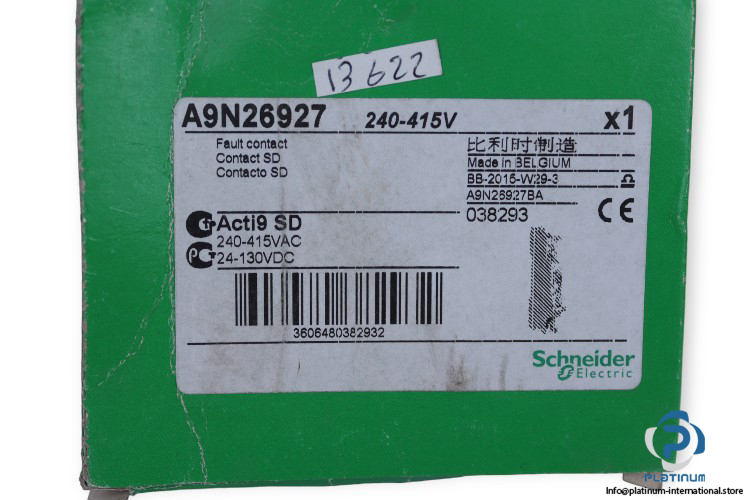

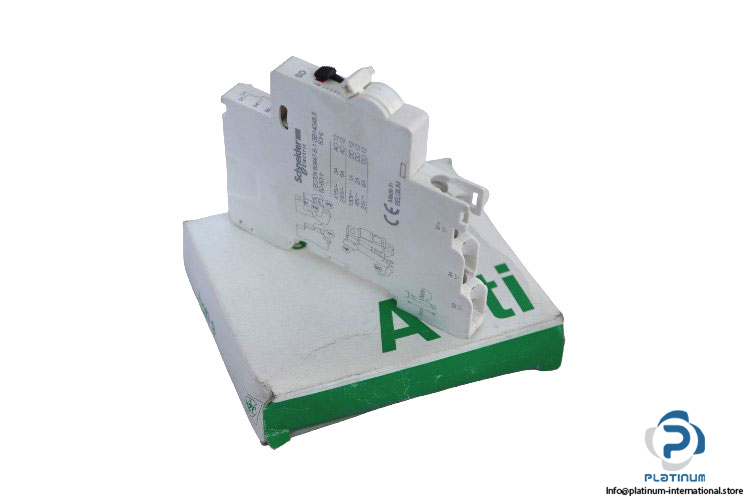

Schneider Electric A9N26927 Auxiliary Contact / Fault Contact

The Schneider Electric A9N26927 is a high-performance auxiliary contact / fault contact from the Acti9 range, designed to enhance monitoring and signaling in electrical circuits. With reliable performance in both AC and DC applications, it is ideal for industrial automation and control systems.

Key Product Details:

• Manufacturer: Schneider Electric
• Type: Auxiliary Contact / Fault Contact
• Model: A9N26927
• Order No.: 038293
• Device Short Name: SD
• Range of Product: Acti9

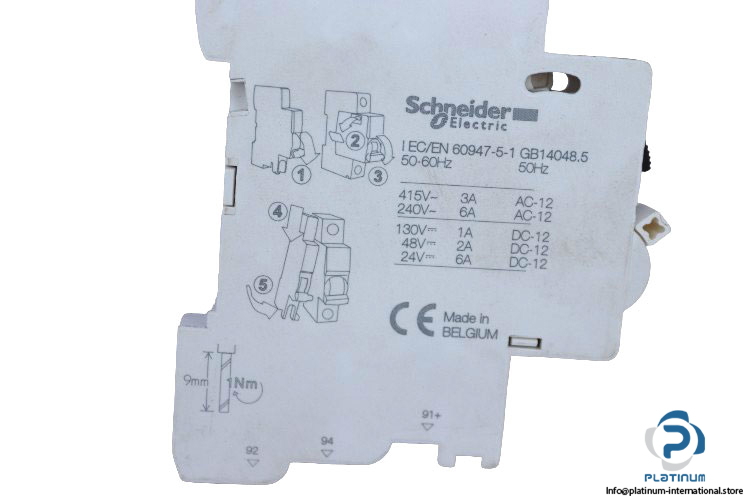

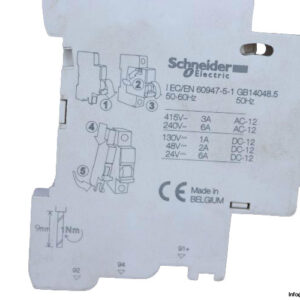

Technical Information:

• Rated Operational Voltage: 240 to 415 V AC / 24 to 130 V DC
• Frequency: 50/60 Hz
• Rated Current (In):
  • AC-12: 3 A at 380 / 415 V, AC 50/60 Hz
  • AC-12: 6 A at 220 / 240 V, AC 50/60 Hz
  • DC-12: 1 A at 130 V, DC
  • DC-12: 1.5 A at 60 V, DC
  • DC-12: 2 A at 48 V, DC
  • DC-12: 6 A at 24 V, DC
• Signal Contacts Composition: 1 C/O
• Mounting Mode: Fixed
• Wire Stripping Length: 9 mm
• Mounting Support: DIN Rail
• Tightening Torque: 1 N.m
• Standards: EN/IEC 60947-5-1, GB14048.5
• Degree of Protection: IP20
• Operating Temperature: -25 to 50 °C
• Dimensions: 85 x 9 x 74 mm

Designed for precision and reliability, the Schneider Electric A9N26927 ensures seamless integration into industrial electrical systems, enhancing safety and control.
