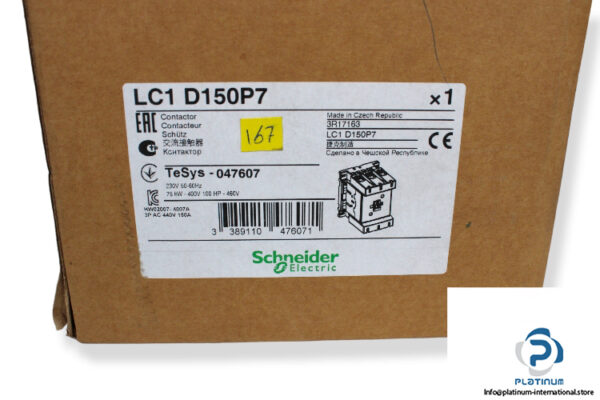

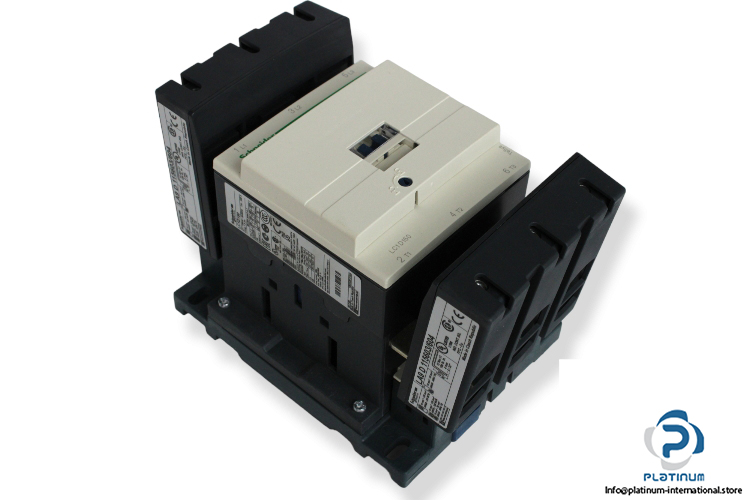

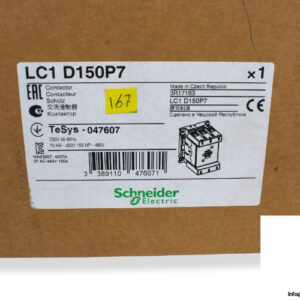

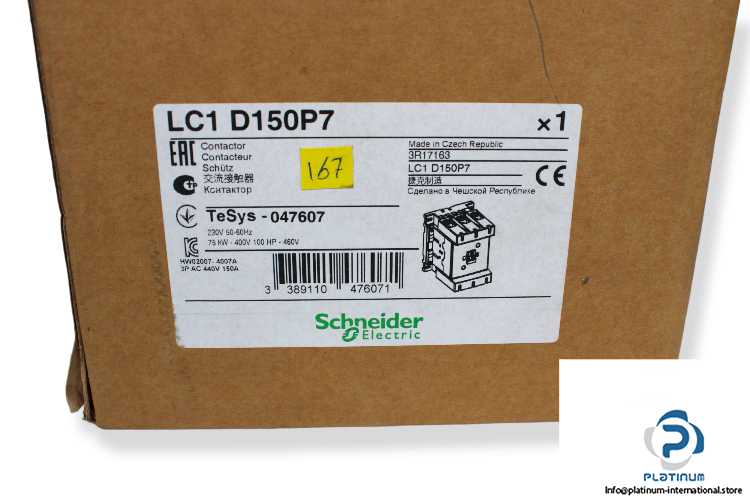

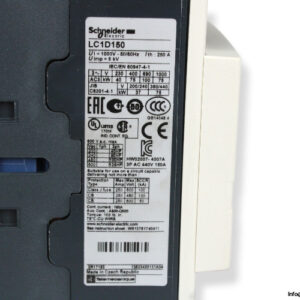

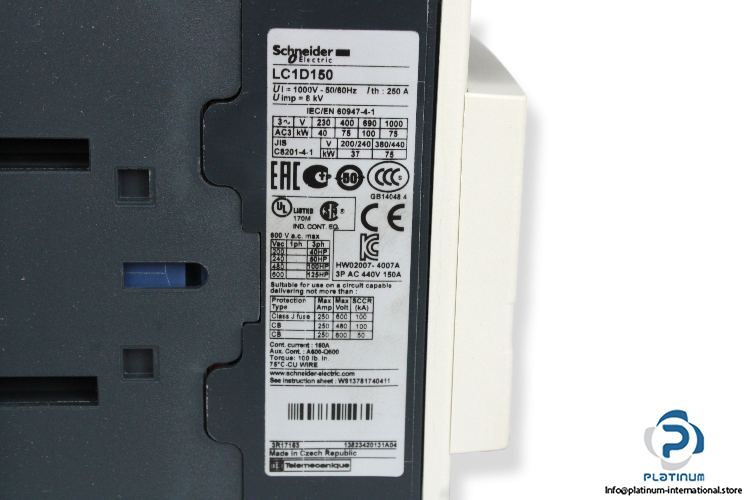

Manufacturer: Schneider Electric

Type: Contactor

Model: LC1 D150P7

Part No.: 047607

Control circuit voltage: 230 V AC, 50/60 Hz

Rated insulation voltage (Ui): 1000 V AC, 50/60 Hz

Conventional free air thermal current (Ith): 250 A

Rated impulse withstand voltage (Uimp): 8 KV

Motor power kW: 75 KW – 400 V

Motor power hp: 100 hp – 460 V

Pole contact composition: 3 Normally open contacts

Auxiliary contact composition: 1 Normally open + 1 Normally closed

Connections – terminals: screw clamp terminals

Operating Temperature: -40 … +60 °C

Degree of Protection: IP20

Dimensions: 158 x 120 x 136 mm
