Manufacturer: Schneider Electric, Elau

Type: Servo Motors

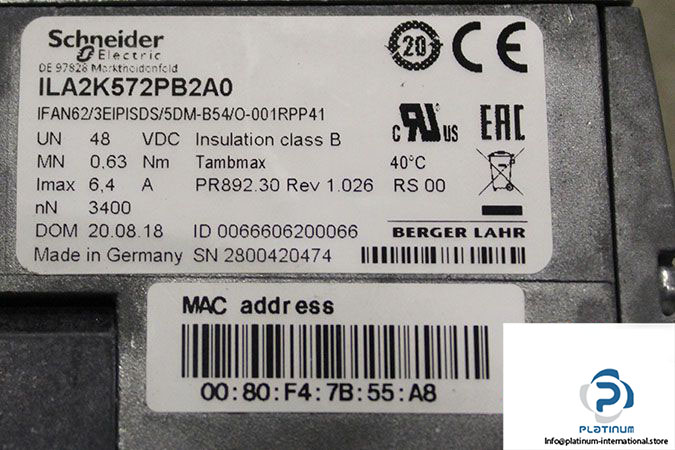

Model: ILA2K572PB2A0

Peak Stall Torque [Nm]: 1.62

Continuous Stall Torque [Nm]: 0.78

Nominal Torque [Nm]: 0.63

Max Current [A]: 6.4

Supply Voltage [VDC]: 48

Nominal Speed [rpm]: 3400

Number of Poles: 6

Flange Size [mm]: 57

Shaft Diameter [mm]: 9

Shaft Length [mm]: 20

Ambient Temperature [°C]: -25…70

Thermal Class: B

Weight [kg]: 1.85
