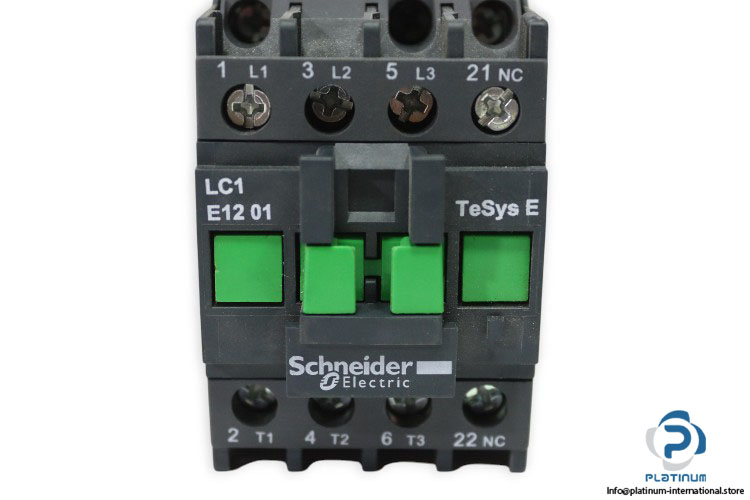

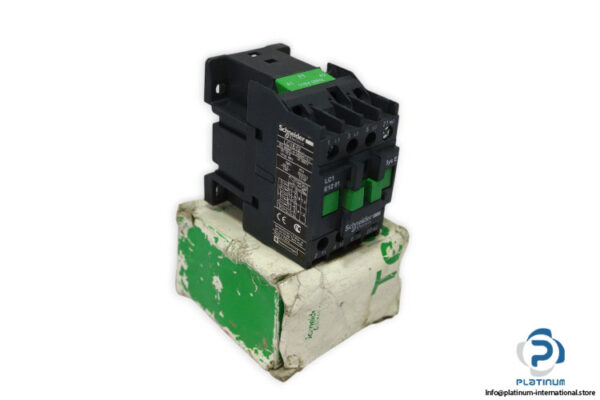

SCHNEIDER LC1E1201F5 CONTACTOR

A compact 3‘pole contactor from the Easy TeSys range, the LC1E1201F5 features a 110 V AC control coil and robust AC‘3 performance for reliable motor switching. Designed for operational voltages up to 690 V AC, it delivers dependable service in industrial control panels.

Manufacturer: SCHNEIDER
Type: Contactor
Model: LC1E1201F5
SN: 3606480327889

Technical Information

• Range: Easy TeSys
• Device Short Name: LC1E
• Poles Description: 3P
• [Ue] Rated Operational Voltage: Power circuit ‰¤ 690 V AC, 50/60 Hz
• [Ie] Rated Operational Current (Power Circuit):
  • 12 A (at < 55 °C) at ‰¤ 440 V AC, AC‘3
  • 12 A (at < 55 °C) at ‰¤ 440 V AC, AC‘3e
  • 25 A (at < 55 °C) at ‰¤ 440 V AC, AC‘1

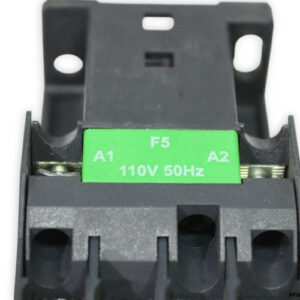

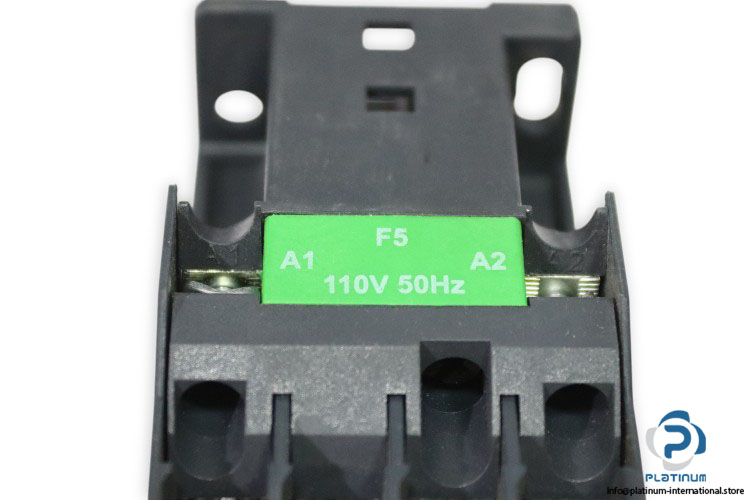

• [Uc] Control Circuit Voltage: 110 V AC, 50 Hz
• Motor Power (kW):
  • 3 kW at 220/230 V AC, 50/60 Hz
  • 5.5 kW at 380/400 V AC, 50/60 Hz
  • 5.5 kW at 415/440 V AC, 50/60 Hz

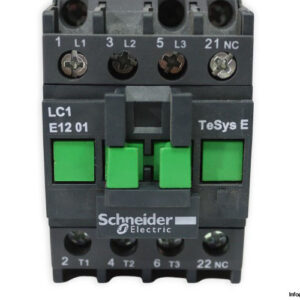

• Pole Contact Composition: 3 NO

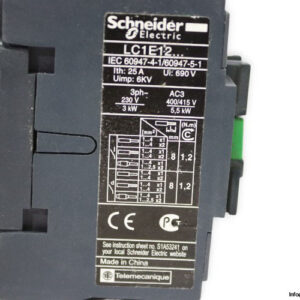

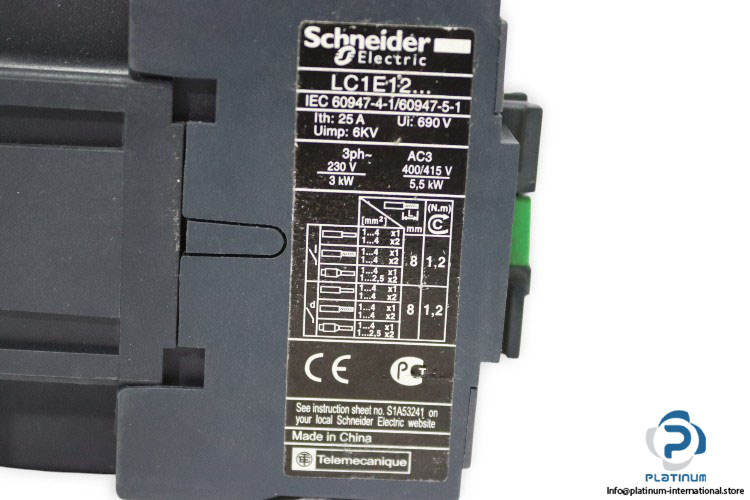

• [Ith] Conventional Free Air Thermal Current: 25 A (at 55 °C), power circuit
• [Ui] Rated Insulation Voltage: 690 V (IEC 60947‘4‘1)
• Overvoltage Category: III
• Pollution Degree: 3
• Tightening Torque: Power circuit 1.2 N·m; Control circuit 1.2 N·m
• Auxiliary Contact Composition: 1 NC
• Operating Temperature: ˆ’5 to 55 °C
• Dimensions (H × W × D): 74 × 45 × 80 mm
