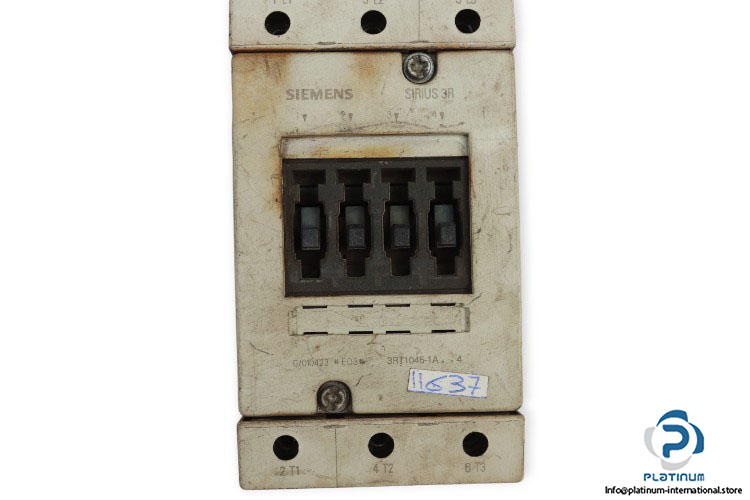

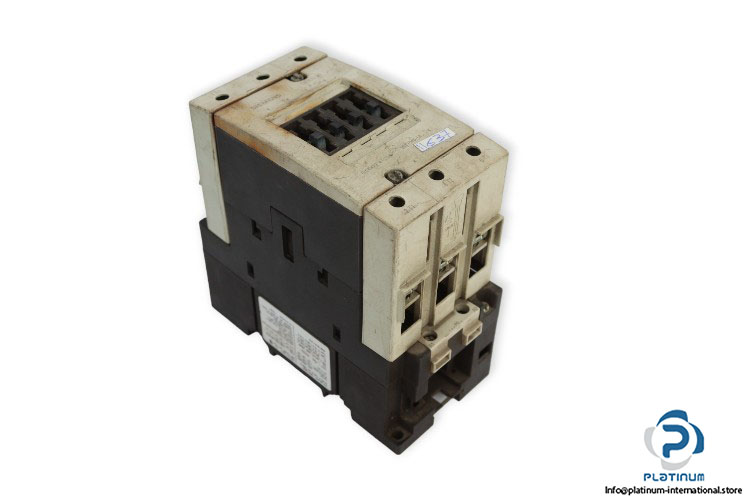

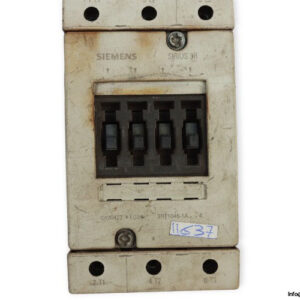

Siemens 3RT1045-1AP04 Power Contactor

Manufacture: Siemens
Type: Power contactor
MNR: 3RT10451AP04
Family: SIRIUS 3R

Control supply voltage: 230 V AC@50 Hz

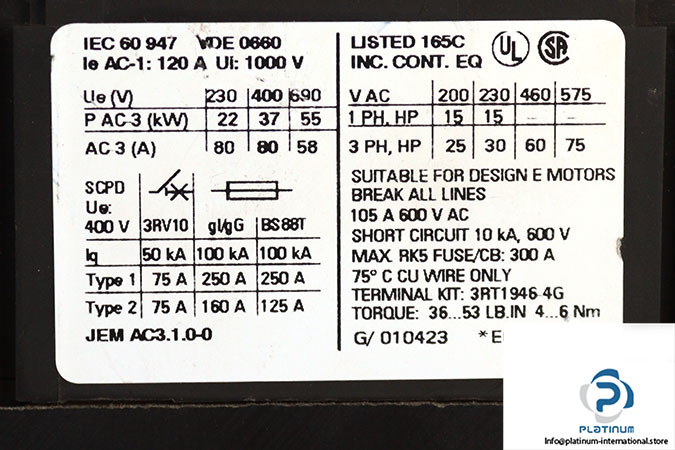

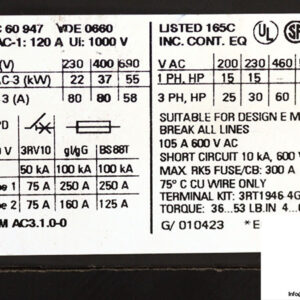

Rated isolation voltage Ui: 1000 V
Operating current Ie AC-1: 120 A
Degree of pollution: 3
Power AC-3: 37 KW @ 400 V
Rated current AC-3: 80 A@ 400 V
Number of poles for main current circuit: 3
Number of NC contacts for auxiliary contacts: 2
Number of NO contacts for auxiliary contacts: 2
Degree of Protection: IP20
Torque: 4 … 6 Nm
Standard: IEC 60 947 / VDE 0660
Ambient temperature during operation: -25 … +60°C
Type of electrical connection: screw-type terminals
Dimensions: 146 x 70 x 188 mm
