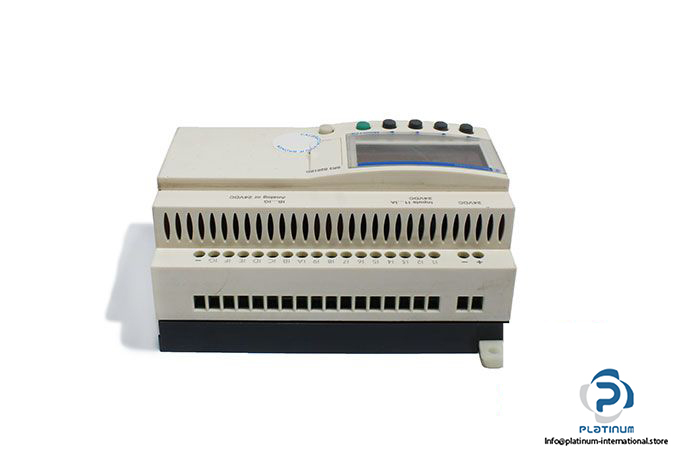

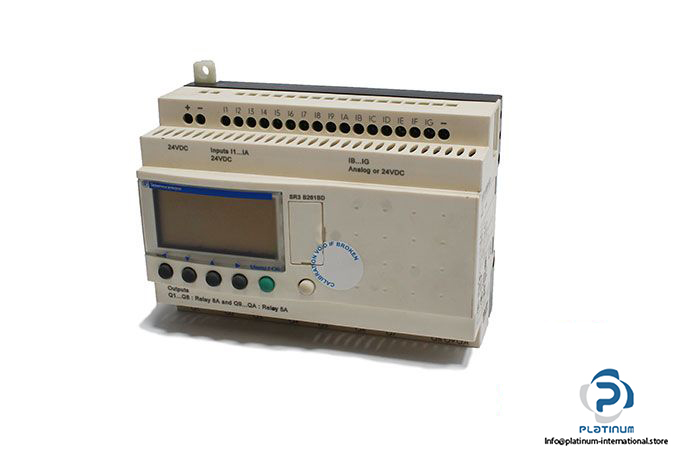

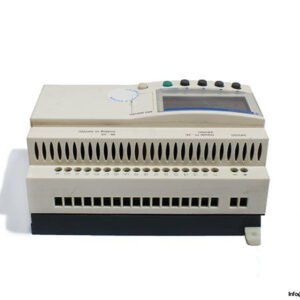

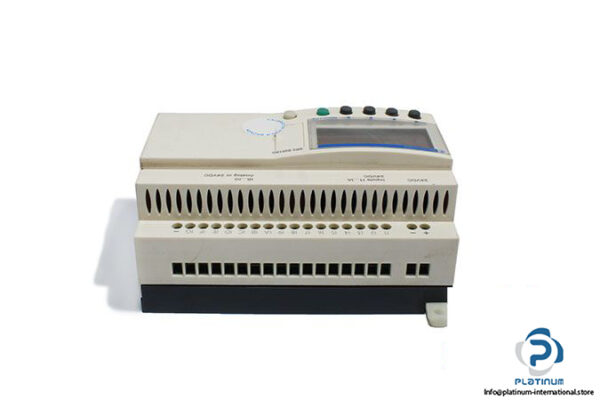

Manufacturer: Schneider Telemecanique

Type: Modular Smart Relay

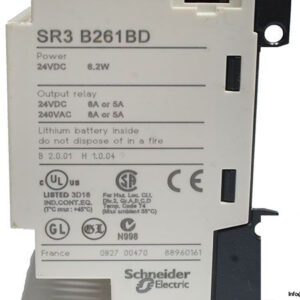

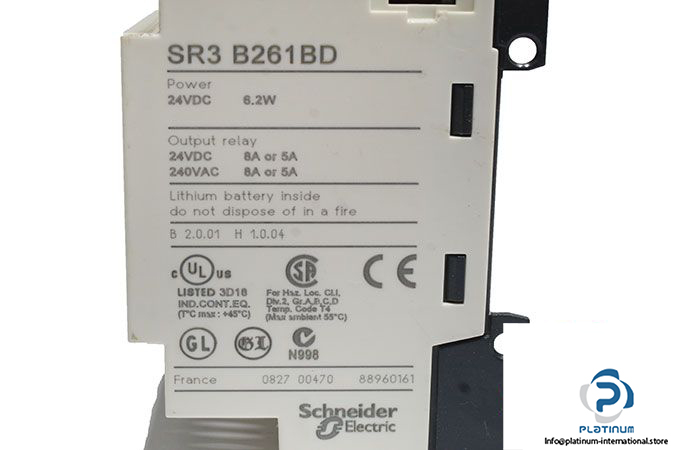

Model: SR3B261BD

Rated Supply Voltage: 24 V

Supply Voltage Limits: 19.2 … 30 V

Number of Outputs: 10 relay

Output voltage limits: 24 … 250 V AC (relay output), 5 … 30 V DC (relay output)

Maximum Supply Current: 190 mA (without extension), 300 mA (with extensions)

Power Dissipation: 10 W with extensions, 6 W without extension

Discrete Input Voltage: 24 VDC

Discrete Input Current: 4 mA

Counting Frequency: 1 KHz

Input Compatibility: 3-wire proximity sensors PNP for discrete input

Analogue Input Number: 6

Pollution Degree: 2

Tightening Torque: 0.5 N.M

Degree of Protection: IP20 Terminal block, IP40 front panel

Ambient Air Temperature for Operation: -20 … 40 °C

Weight: 0.3 Kg
