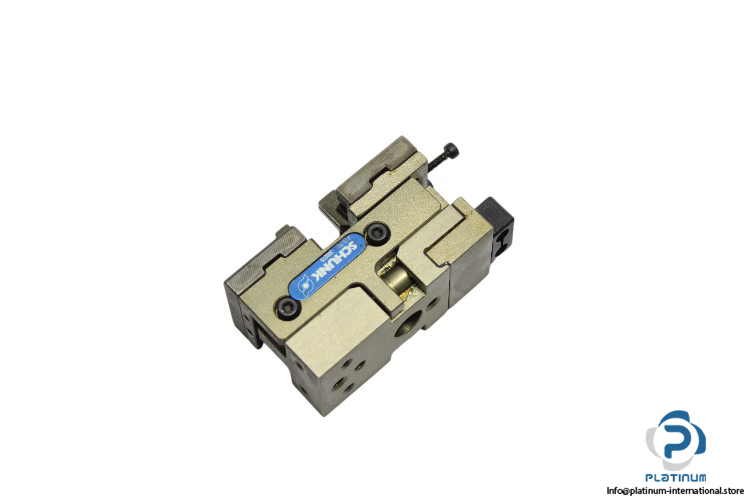

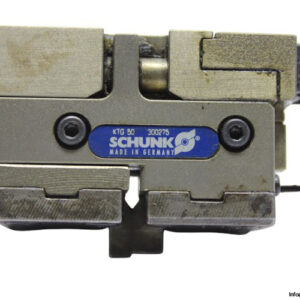

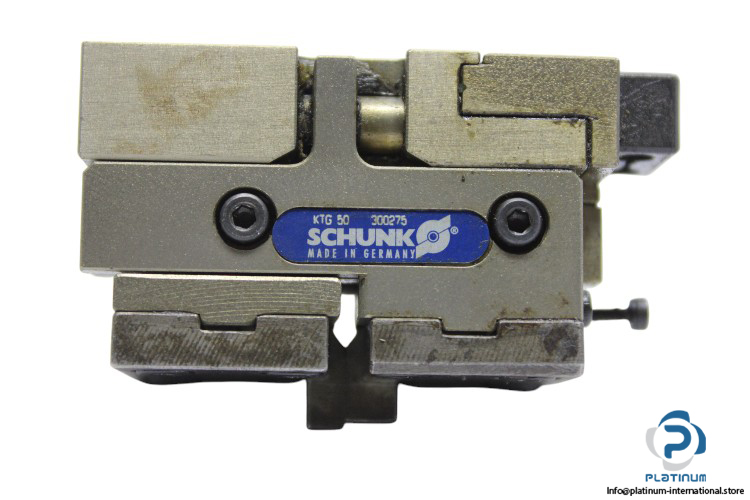

Schunk KTG 50 Gripper for Small Components

The Schunk KTG 50 Gripper for Small Components is a high-precision gripping solution designed for handling delicate and small parts with reliability and efficiency. Featuring fast opening and closing times, this gripper operates at a nominal pressure of 6 bar, making it ideal for automated assembly and handling applications.

Manufacturer: Schunk

Type: GRIPPER FOR SMALL COMPONENT

Model: KTG 50

Part No.: 300275

Technical Information:

• Stroke Per Jaw: 4.5 mm
• Closing Force: 13 N
• Opening Force: 13 N
• Air Consumption Per Double Stroke: 98 cm³
• Nominal Pressure: 6 bar
• Pressure Range: 1 to 7 bar
• Closing Time: 0.05 sec.
• Opening Time: 0.05 sec.
• Permissible Mass Per Finger: Max. 0.04 kg
• Ambient Temperature: 5 to 90 °C
• Protection Class: IP20
• Connection: 3 mm

This compact and efficient gripper is ideal for high-speed automation tasks where precision, reliability, and minimal air consumption are critical.
