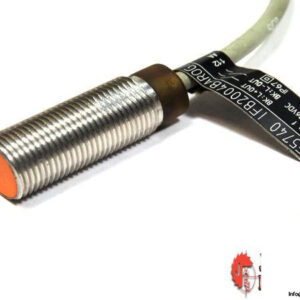

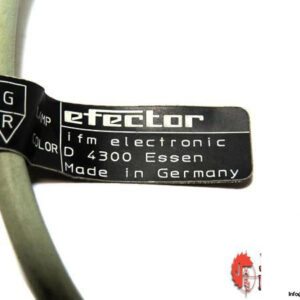

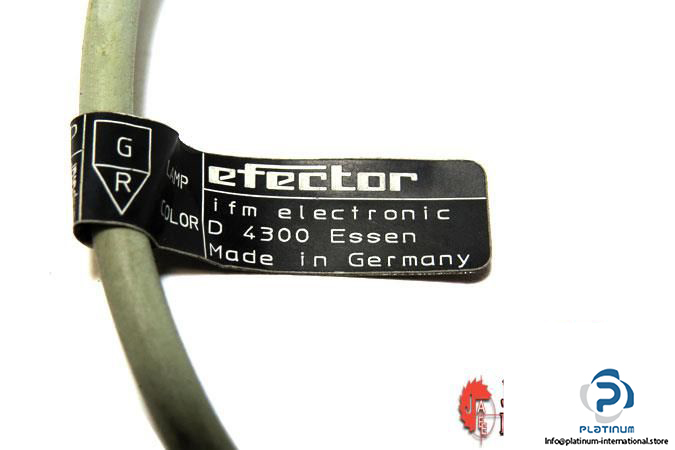

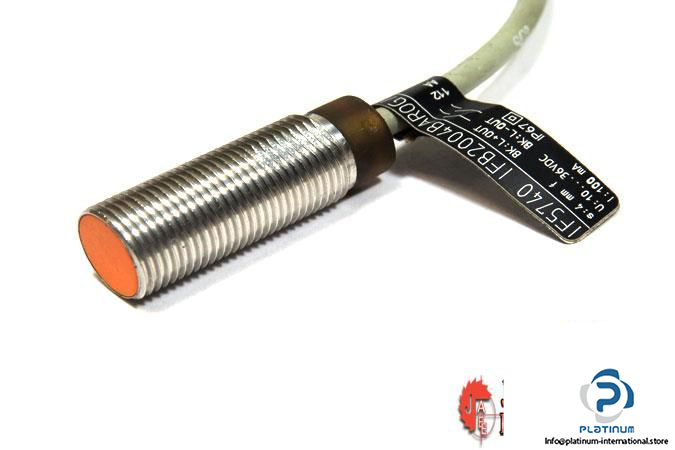

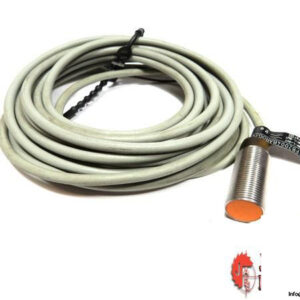

Manufacturer: IFM

Type: INDUCTIVE SENSOR

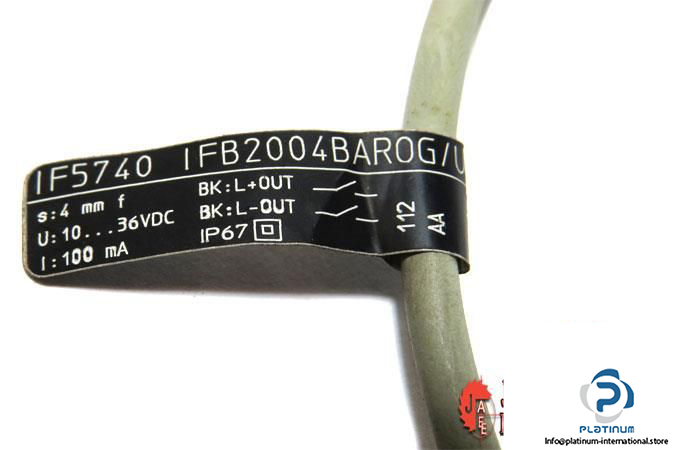

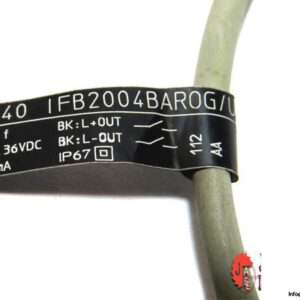

Part No.: IF5740

MRN: IFB2004BAROG/UP

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10 % mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 36 V DC

Electrical Design: PNP/NPN

Output Function: Normally Open

Switching Output Current:  100 mA

Switching Frequency DC: 110 Hz

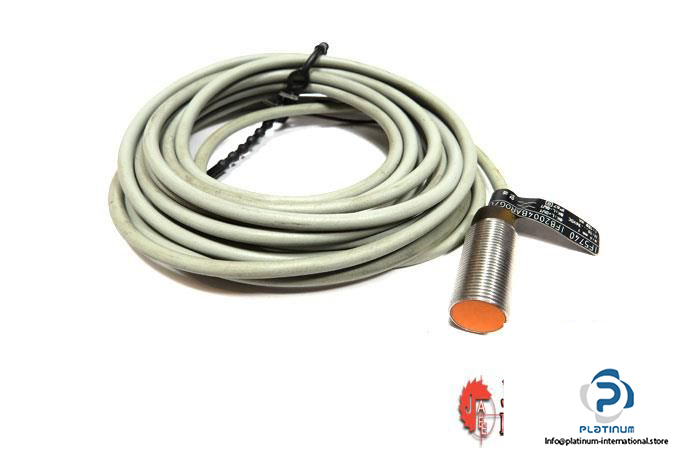

Connection Type, Length: Cable, 3 m

Protection Class: II

Enclosure Rating: IP67

Operating Ambient Temperature: -25 … 70°C

Housing: Threaded Type

Diameter, Housing Length: 12, 40 mm

Material: Brass White Bronze Coated; PBT

Mounting: Flush Mountable

Weight: 89.2 g
