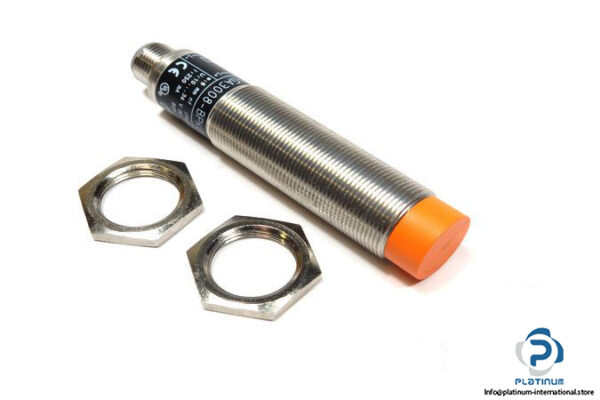

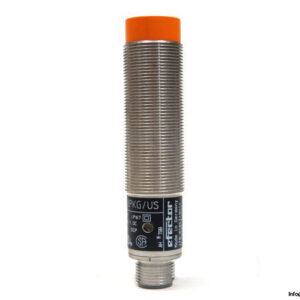

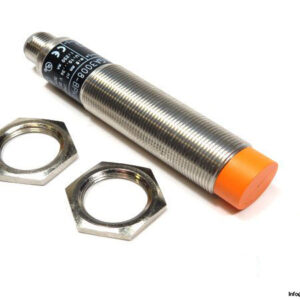

Manufacturer: IFM

Type: INDUCTIVE SENSOR

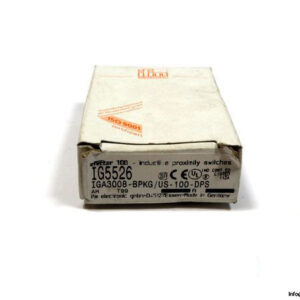

Part No.: IG5526

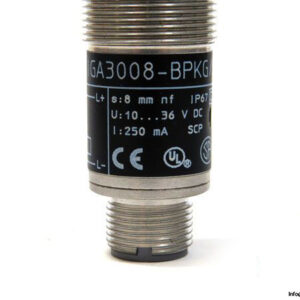

MRN: IGA3008-BPKG/US

Sensing Range: 8 mm

Real Sensing Range: 8 ± 10 % mm

Operating Distance: 0 … 6.48 mm

Operating Voltage: (10 … 36 V DC)

Voltage Drop: 2.5 V DC

Switching output current: 200 mA DC

Current consumption: 10 mA

Switching frequency: 300 Hz DC

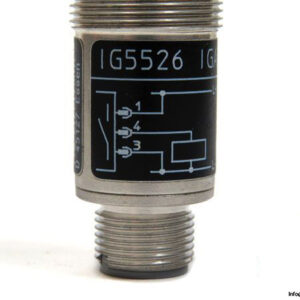

Electrical Design: PNP

Output Function: Normally open

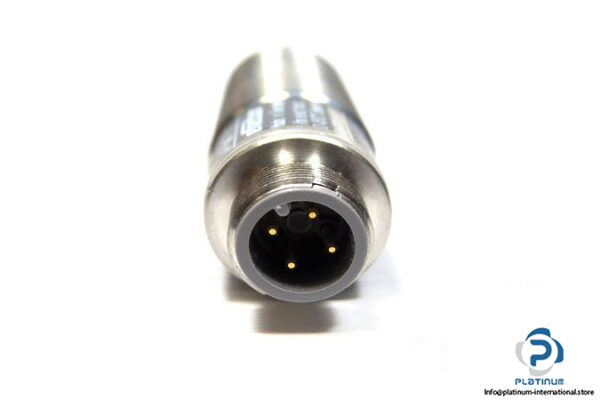

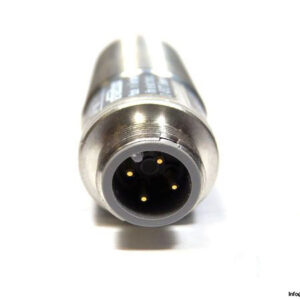

Connector type: M12 Connector, gold plated contacts

Protection Class: II

Enclosure rating: IP67

Housing:  Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 18, 80 mm

Material: Brass white bronze coated; sensing face: PBT orange

Mounting: Non-flush mountable

Weight: 53.5 g
