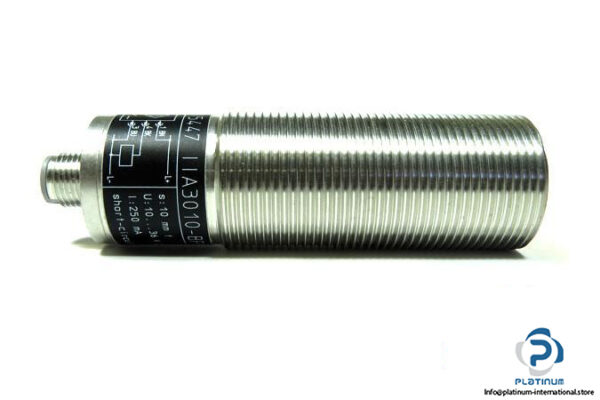

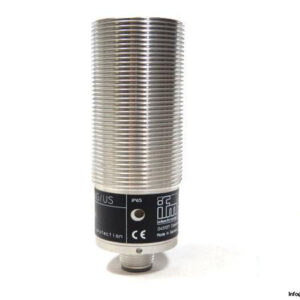

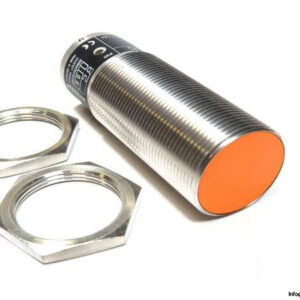

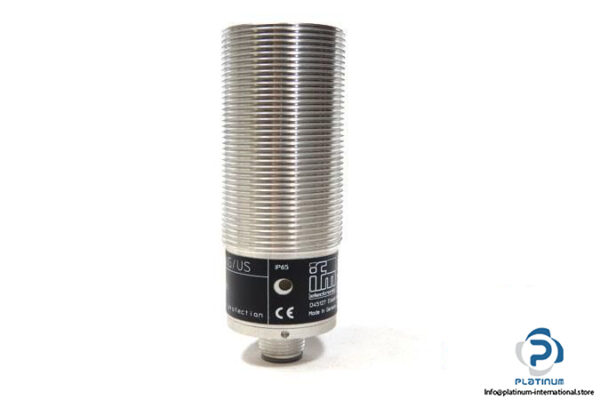

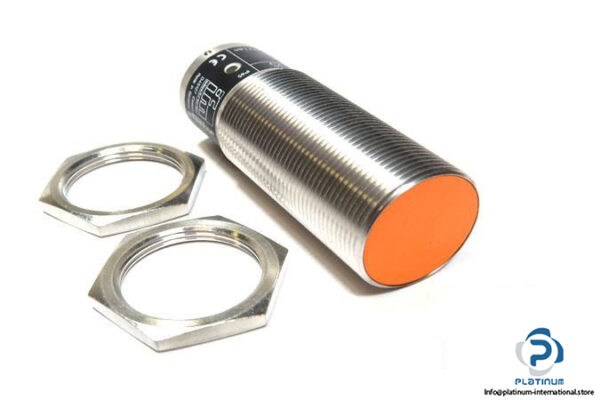

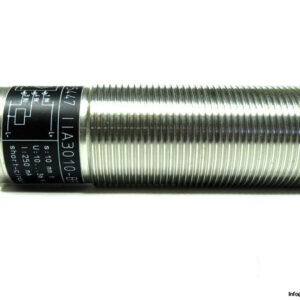

Manufacturer: IFM
Type: Inductive Sensor
Part No.: II5447
MNR: IIA3010-BPKG/US

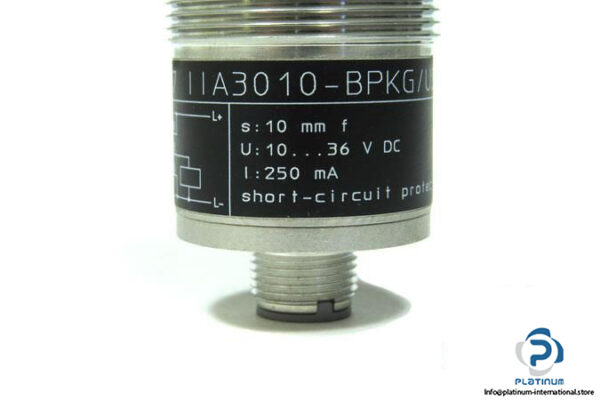

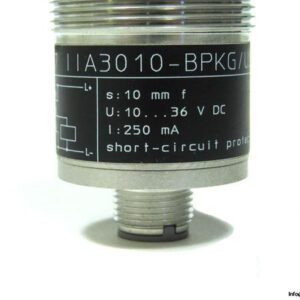

Sensing Range: 10 mm
Real Sensing Range: 10 ± 10 % mm
Operating Distance: 0 … 8.1 mm
Operating Voltage: 0 … 36 V DC
Voltage drop max.: 2.5 V DC
Switching output current: 250 mA DC
Current Consumption: 15 mA
Switching frequency: 250 Hz DC

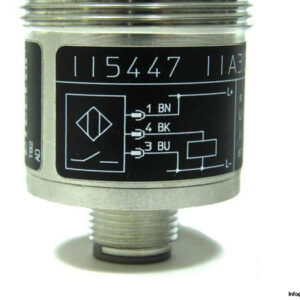

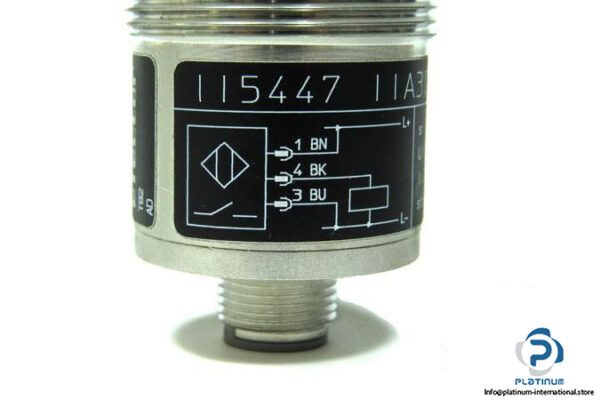

Electrical Design: PNP
Output Function: Normally open

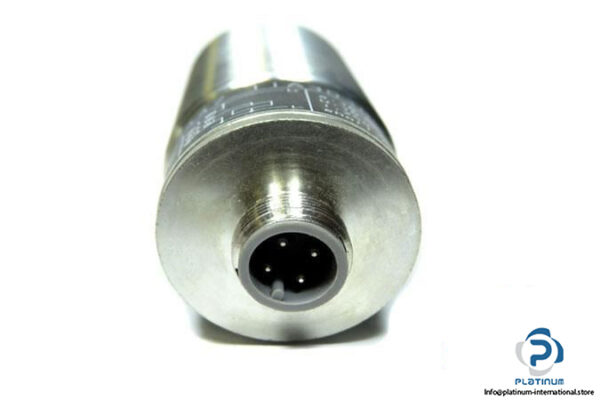

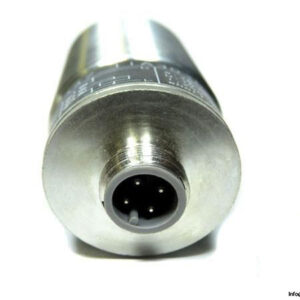

Connector type: M12 Connector
Protection Class: II
Enclosure rating: IP65
Housing: Threaded type
Ambient Operating temperature: -25 … 80°C
Diameter, Housing length: 30, 92 mm
Material: Brass nickel-plated; PBT
Mounting: Flush mountable
