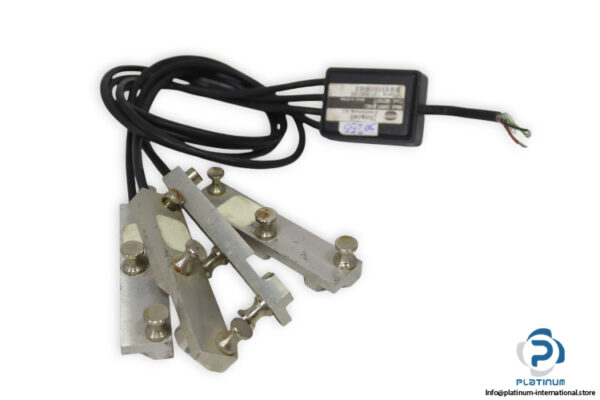

DINACELL SWK 8/4C LOAD SENSOR

The Dinacell SWK 8/4C is a compact and highly reliable load sensor engineered for accurate weight measurement in industrial applications. Built with aluminum housing and IP65 protection, it ensures durability and performance under demanding conditions.

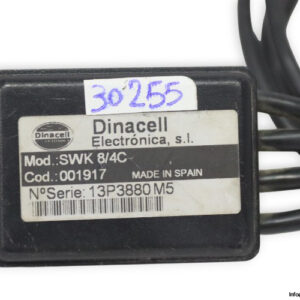

Manufacturer: Dinacell
Type: Load Sensor
Model: SWK 8/4C
Code: 001917
Serial No.: 13P3880 M5

Technical Information

• Cable: 8 mm

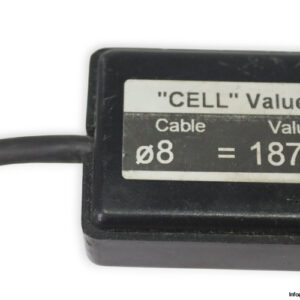

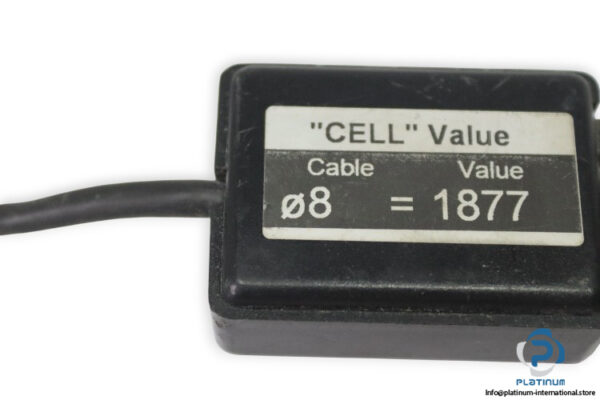

• Cell Value: 1877
• Load: 350 kg
• Nominal Sensibility: 1.3 to 2 mV/V
• Accuracy: 0.25 %
• Maximum Excitation Voltage: 12 V
• Minimum Distance to the Socket: 25 m
• Operating Temperature Range: -20 … +60 °C
• Min. Insulation Resistance (V.Test = 100V): 4 GΩ
• Load Limit: Safe 120 / Without Characteristics Loss 150
• Cable Length: 2 m
• Material: Aluminum
• Protection Class: IP65
