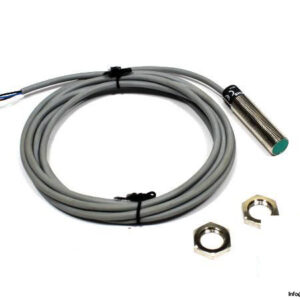

Manufacturer: PEPPERL FUCHS

Type: MAGNETIC FIELD SENSOR

Model No.: MB6012GM50E2

Part No.: 109767

Rated operating distance: 60 mm

Assured operating distance: 10 … 48.6 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching frequency: 0 … 5000 Hz

Electrical design: PNP

Switching output: Normally open

Connector type: PUR Cable, 2 m

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 75°C

Diameter, housing length: 12, 50 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Flush in non-magnetic metal

Condition: New
