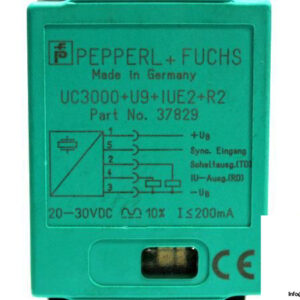

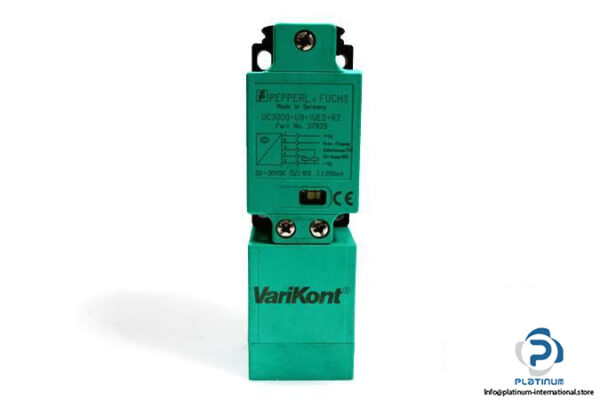

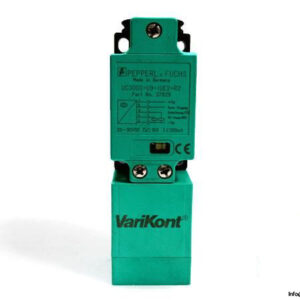

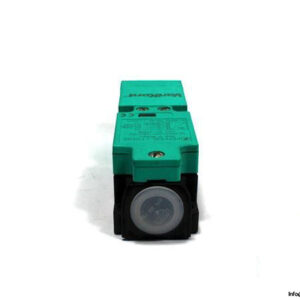

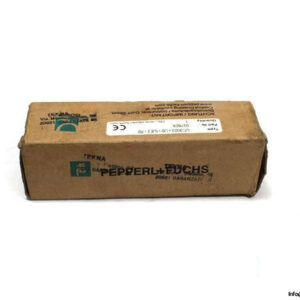

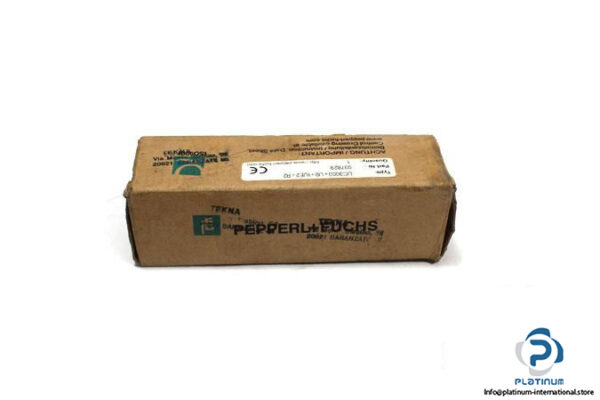

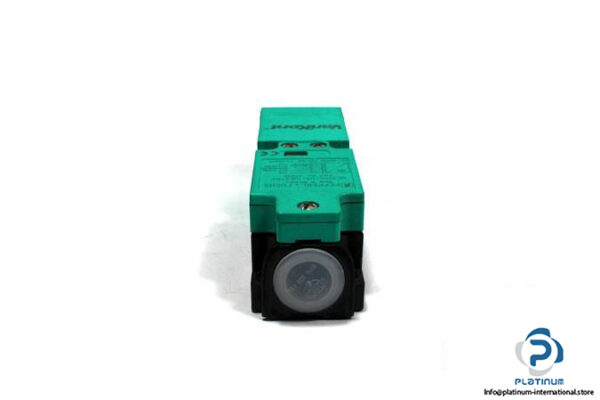

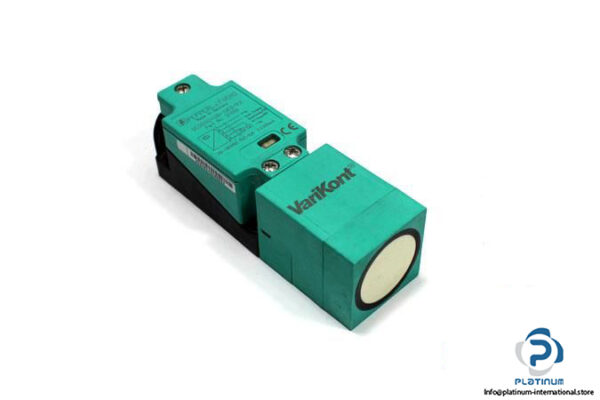

Manufacturer:  PEPPERL FUCHS

Series: VariKont

Type: ULTRASONIC SENSOR

Model No.: UC3000U9IUE2R2

Part No.: 37829

Sensing range: 300 … 3000 mm

Unusable area: 0 … 300 mm

Standard target plate: 100 x 100 mm

Operating Voltage: 20 … 30 V DC

Operating Current: 200 mA

Transducer frequency: 130 KHz

Electrical design: PNP

Switching output: Normally open/normally closed

Connector type: Terminal compartment

Protection class: II

Enclosure rating: IP65

Ambient Operating temperature: -25 … 70°C

Dimensions: 40 x 40 x 131 mm

Weight: 180 g

Housing material: PBT

Sensing face material: epoxy resin/hollow glass sphere mixture; polyurethane foam

Condition: New
