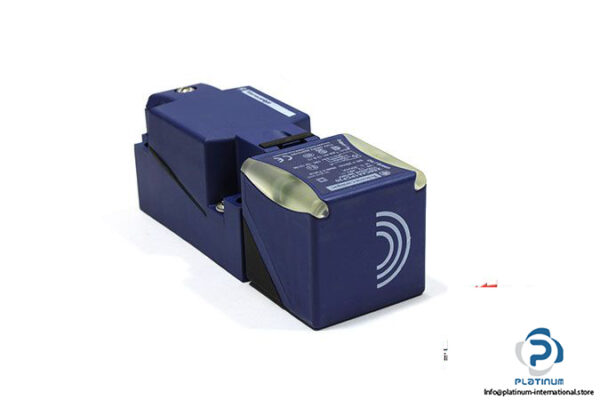

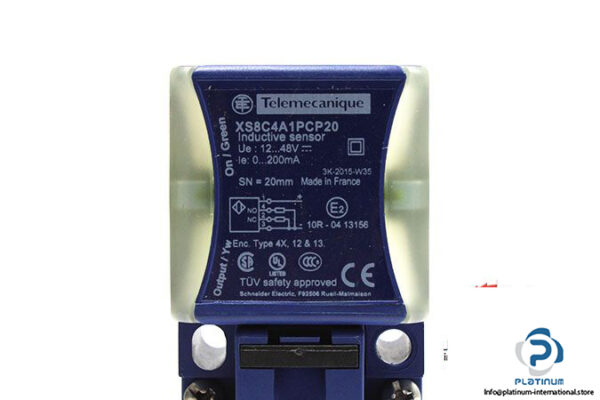

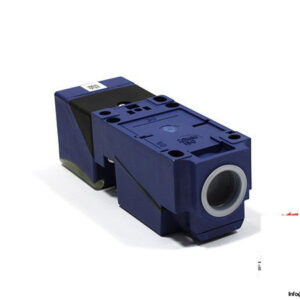

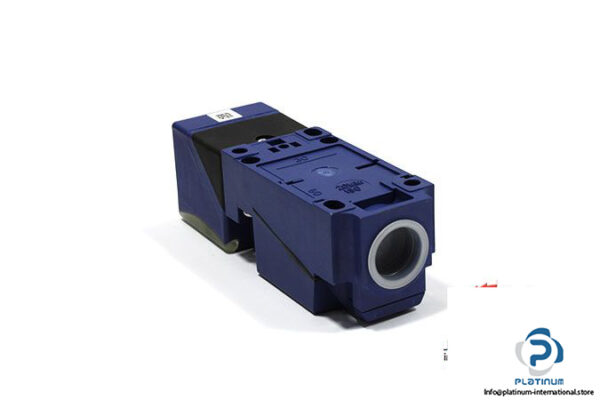

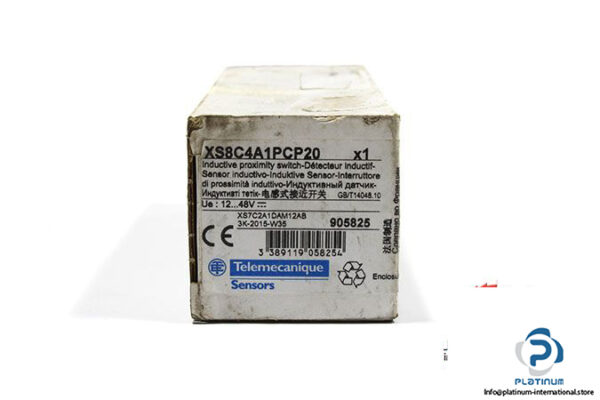

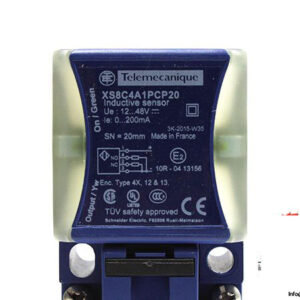

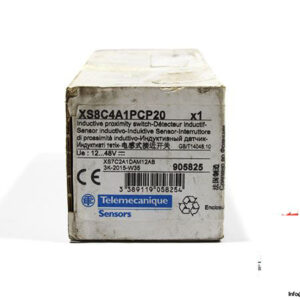

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Series Name: General Purpose

Model: XS8C4A1PCP20



Sensing Range: 20 mm

Operating Voltage: 12 … 48 V DC

Operating Current: 200 mA

Current Consumption, No-Load: 0 … 15 mA

Maximum Voltage Drop: 2 V

Switching Frequency: 300 Hz

Discrete Output Type: PNP

Switching Output: Normally Open / Normally Closed

Electrical Connection: Screw-Clamp Terminals

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70°C

Dimensions: 40 x 40 x 117 mm

Body Type: Fixed

Housing Material: Plastic

Enclosure Material: PBT

Mounting: Flush-Mountable

Weight: 0.244 kg
