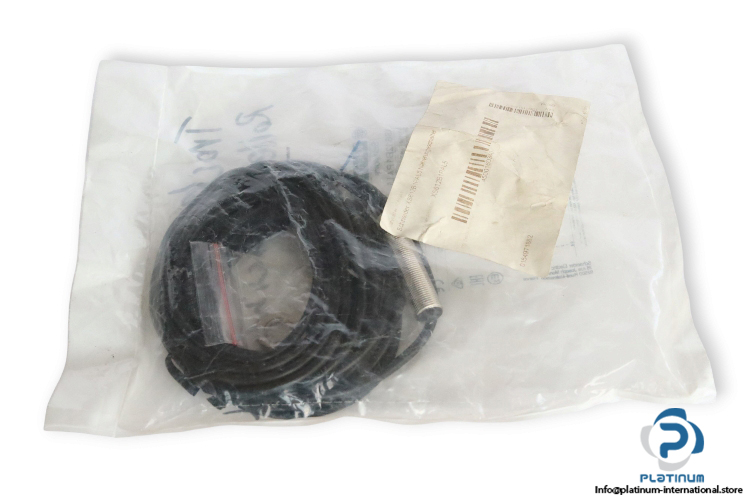

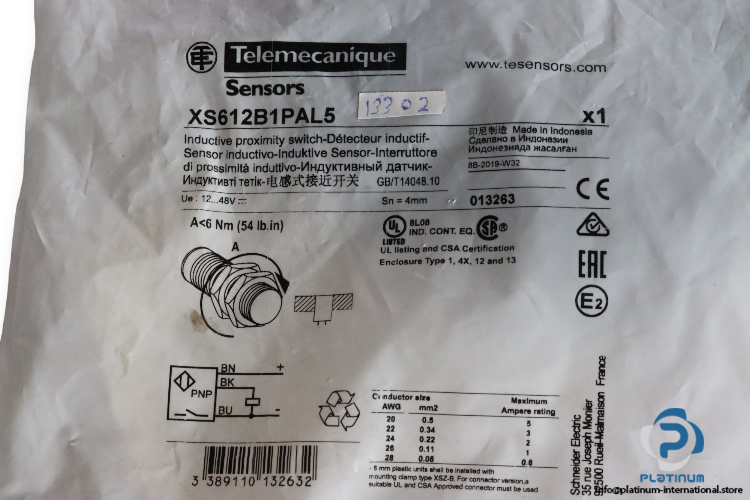

Telemecanique XS612B1PAL5 Inductive Proximity Sensor

Manufacturer: Telemecanique
Type: Inductive Proximity switch Sensor
Model: XS612B1PAL5
Series name: General purpose

Device Application: Mobile equipment
Sensor design: Cylindrical M12
Type of output signal: Discrete
Wiring Technique: 3-wire
Sensing range: 4 mm
Rated supply voltage Us: 12 … 48 V DC
Current consumption: <= 10 mA no-load
Switching capacity: 200 mA
Switching Frequency: <= 2500 Hz
Discrete output type: PNP
Electrical connection: Cable (5m)
Switching Output: 1 Normally Open
Thread type: M12 x 1
Front material: PPS
Enclosure Material: Nickel Plated Brass
Threaded length: 42 mm
Length: 54 mm
Enclosure Rating: IP68 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050
Detection face: Frontal
Ambient Operating Temperature: -25 … 70°C
Body Type: Fixed
Material: Metal
Mounting: Flush-Mountable
Dimensions: 54 x 17 mm (M12)
