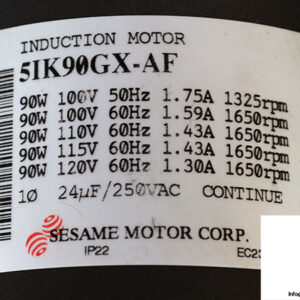

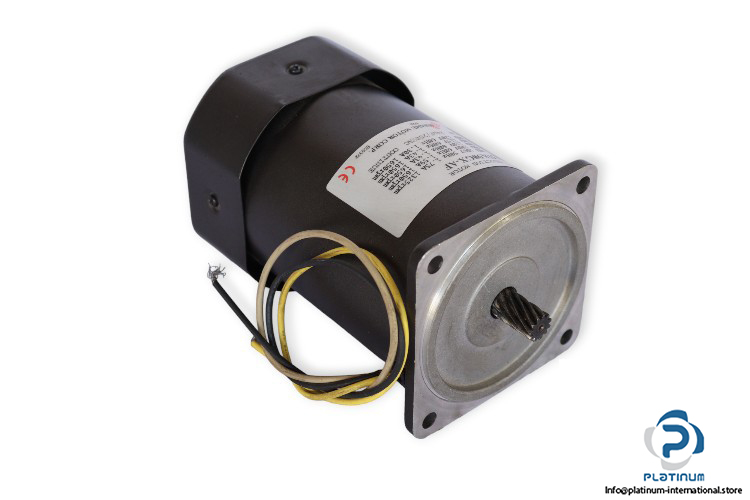

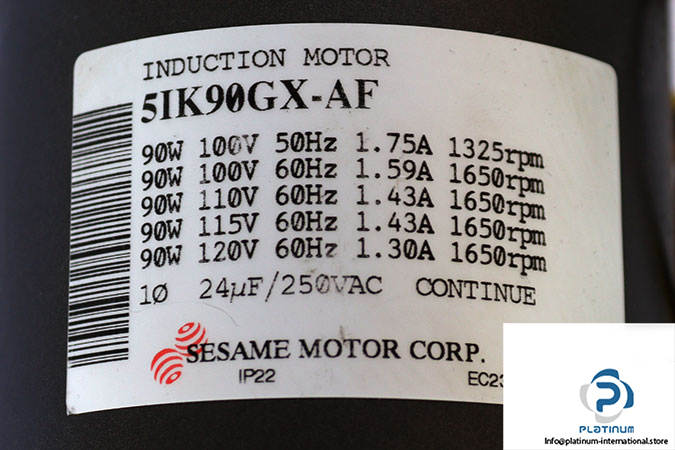

Manufacturer: SESAME MOTOR
Type: 1phase Induction Motor
Model: 5IK90GX-AF

Output Power: 90 W
Rated Time:  Continuous
Capacitor: 24 / 250 VAC
Gear Ratio: 3:200
Horse Power: 1/8 HP
Protection Class: IP 22
number of poles: 4 p
At Voltage 100 V
Frequency: 50-60 Hz
Rated Speed: 1325/1650 rpm
Starting Torque: 4.76/5.86 Kg.cm
Rated Torque: 6.68/5.33 Kg.cm
Rated Current: 1.75/1.59 A
At Voltage 110
Frequency: 60 Hz
Current: 1.43 A
Speed: 1650 rpm
At voltage 115
Frequency: 60 Hz
Current: 1.43 A
Speed: 1650 rpm
At voltage 120
Frequency: 60 Hz
Current: 1.30 A
Speed: 1650 rpm
