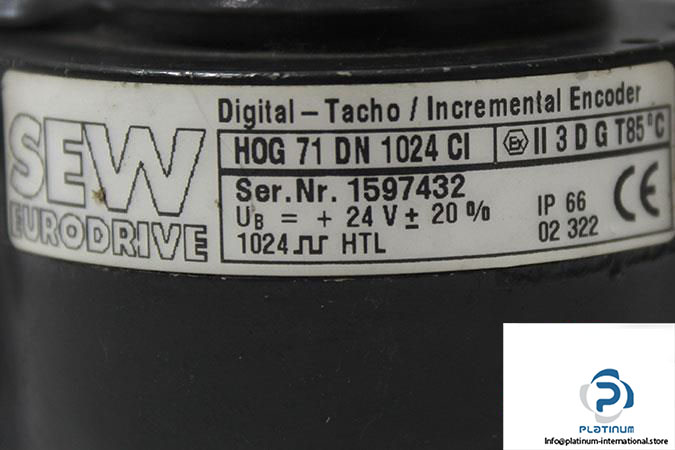

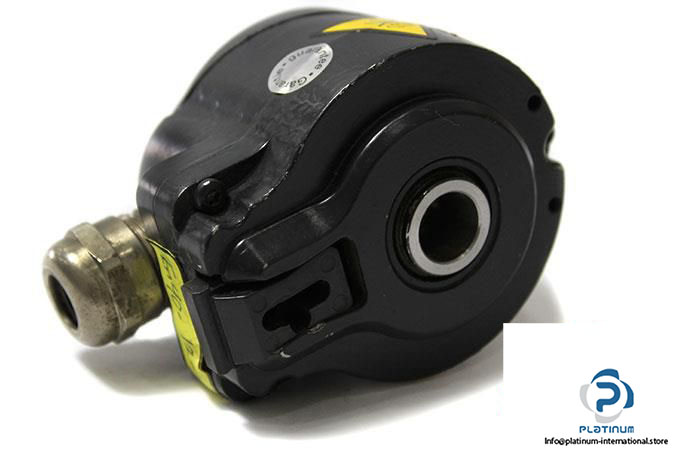

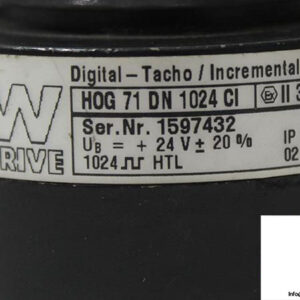

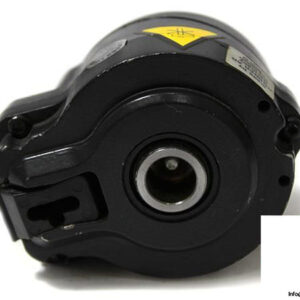

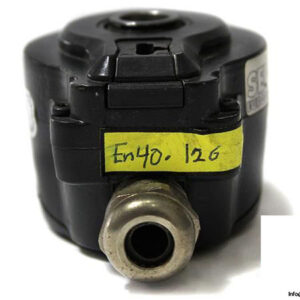

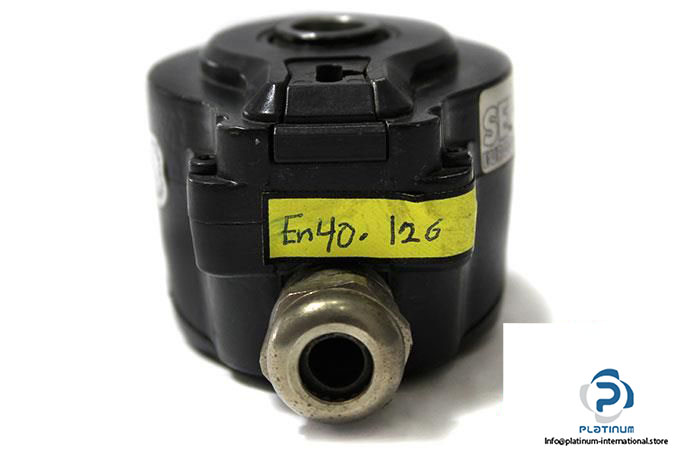

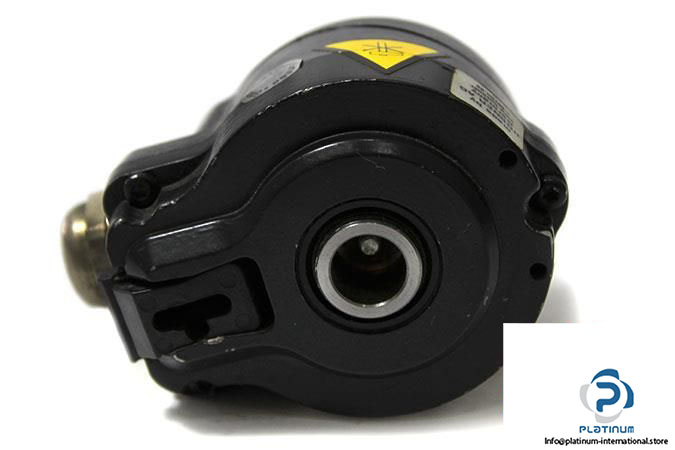

SEW HOG 71 DN 1024 CI INCREMENTAL ENCODER
This high-precision incremental encoder from SEW is engineered for demanding industrial automation environments. Offering reliable pulse feedback and excellent environmental protection, it ensures optimal performance in motion control systems.
Manufacturer: SEW
Type: Incremental Encoder
Model: HOG 71 DN 1024 CI
Serial No.: 1597432
Technical Information
- Shaft Design: Blind Hollow
- Shaft Diameter: 14 mm
- Voltage Supply: 24 VDC
- Resolution: 1024 Pulse per Revolution (PPR)
- Max. Current Consumption: 100 mA
- Output Signals: A, B, C + Inverted
- Output Stage: HTL
- Max Speed: 10000 rpm
- Max. Pulse Frequency: 120 kHz
- Output Connection: Connecting Terminal
- Protection Class: IP 66
- Temperature Range: -20 / 85 °C
