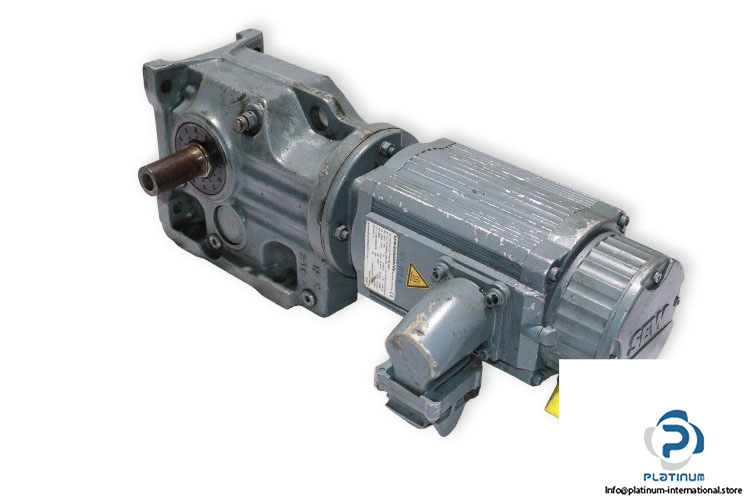

SEW K37CM71S/TF/RH1M /SM51 HELICAL BEVEL GEARMOTOR

The SEW K37CM71S/TF/RH1M /SM51 is a high-performance helical bevel gearmotor engineered for efficient, precise motion control. Built to IEC 34 standards, it combines compact design with industrial-grade durability, making it ideal for various demanding mechanical applications.

Manufacturer: SEW
Type: Helical Bevel Gearmotor
Model: K37CM71S/TF/RH1M /SM51
Part No.: 01.1121399601.0001.05

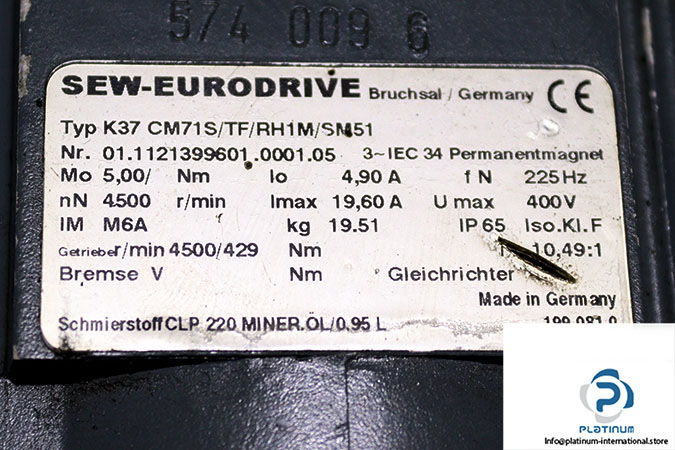

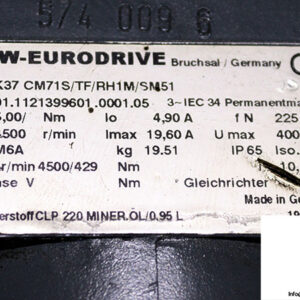

Technical Information

• Gear Unit: K37
• Motor Size: 71
• Speed Class: 4500 r/min
• Torque at Standstill: 5 Nm
• Standstill Current: 4.90 A
• Max. Current: 19.60 A
• Motor Voltage: 400 V
• Frequency: 225 Hz
• Mounting Position: M6A
• Standard: IEC 34
• Degree of Protection: 65
• Insulation Class: F
• Gear Type: Foot-mounted Helical bevel gear motor
• Gear Unit Size: 37
• Ratio: 10.49
• Gear Torque: 429 Nm
• Input Speed: 4500 rpm
• Encoder: RH1M, Resolver

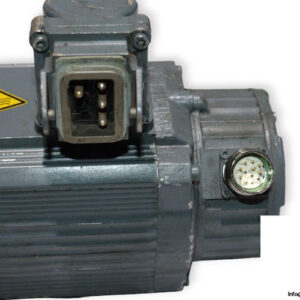

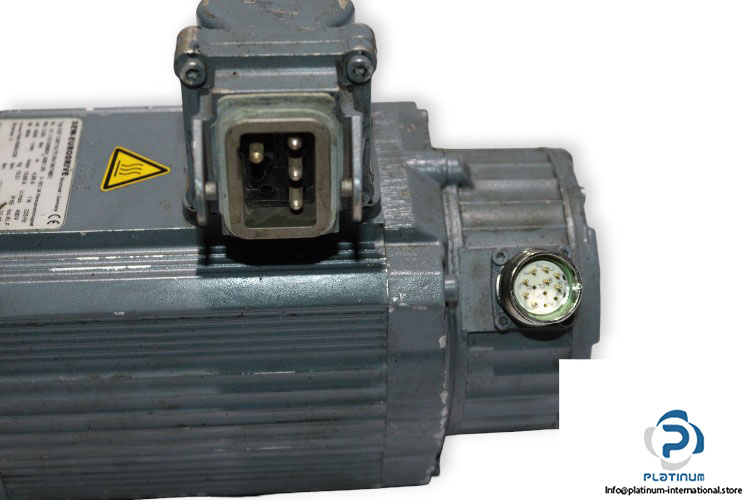

• Plug Connector: SM51
• TF: Thermistor (PTC Resistor)
• Lubricant / Volume: CLP 220 MINER Synth.Oil / 0.95 L
