Dunkermotoren GR63X55 Gear Motor

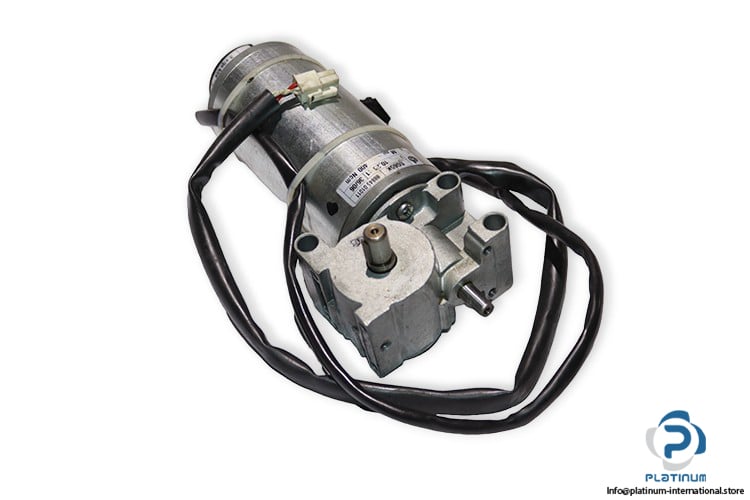

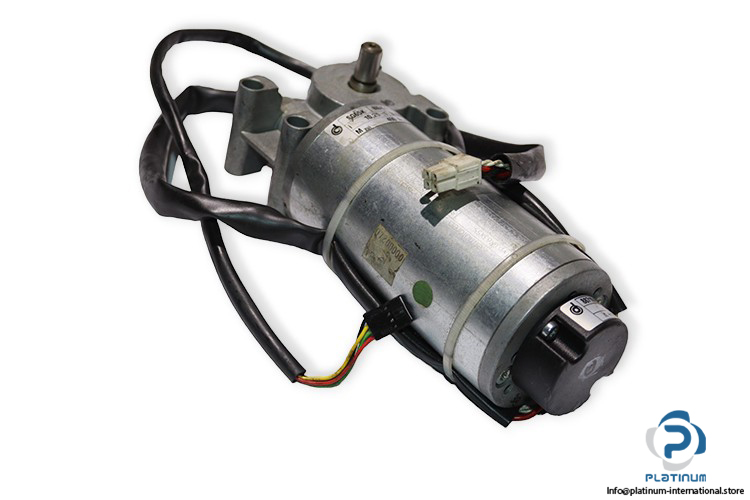

Dunkermotoren GR63X55 Gear Motor with SG65K Worm Gearbox

The Dunkermotoren GR63X55 Gear Motor is a high-performance DC motor designed for demanding industrial applications. With a rated voltage of 24V and a rated power of 100W, it delivers consistent torque and speed for precision motion control. Engineered for durability and efficiency, this gear motor ensures reliable performance even under high load conditions.

This model comes with the Dunkermotoren SG65K Worm Gearbox, providing enhanced torque output and efficiency. With a ratio of 10.25 and a torque capacity of 400 Ncm, the integrated gearbox ensures smooth and controlled power transmission.

• Manufacturer: Dunkermotoren
• Type: Gear Motor
• Model: GR63X55

Technical Specifications

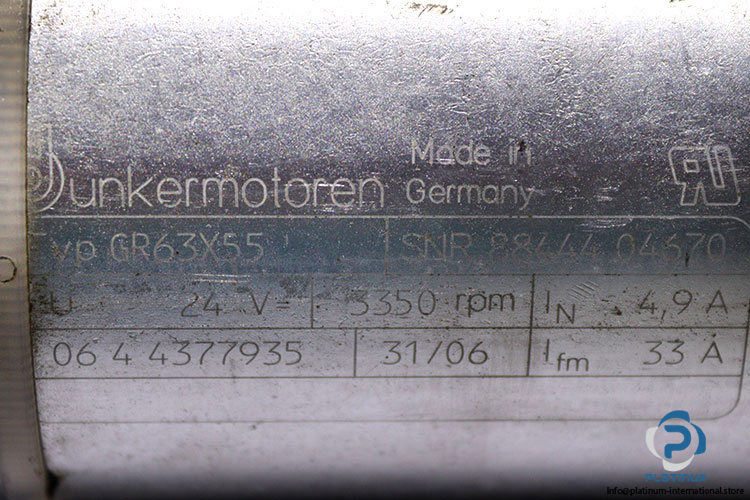

• Rated Voltage: 24 V
• Continuous Rated Torque: 27 Nm
• Starting Torque: 211 Ncm
• Rated Current: 4.9 A
• Peak Current: 33 A
• No Load Current: 0.4 A
• Rated Speed: 3350 rpm
• No Load Speed: 3650 rpm
• Rated Power: 100 W
• Rotor Inertia: 750 gcm²

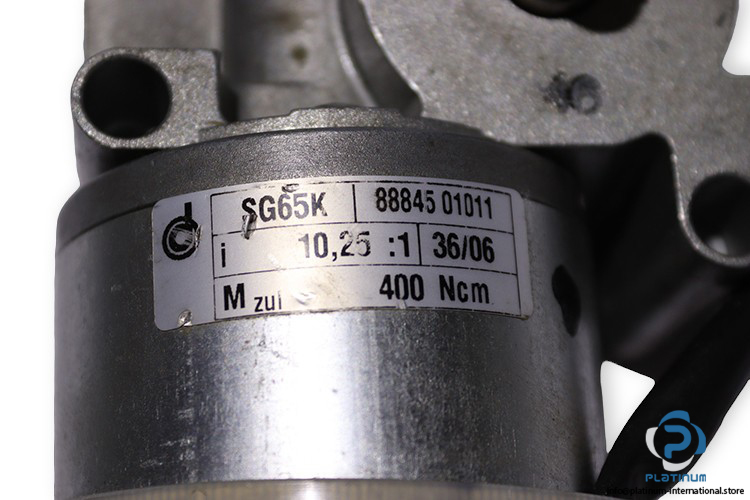

Attachment: SG65K Worm Gearbox

• Manufacturer: Dunkermotoren
• Type: Worm Gearboxes
• Model: SG65K
• Ratio: 10.25
• Torque: 400 Ncm
