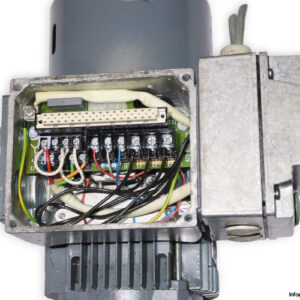

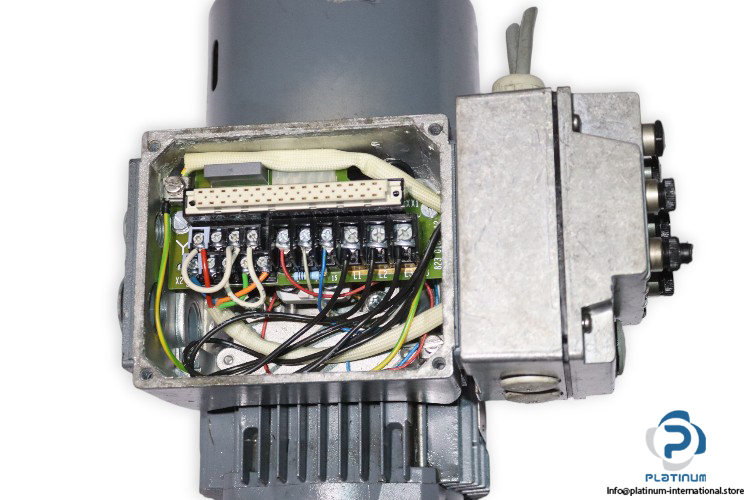

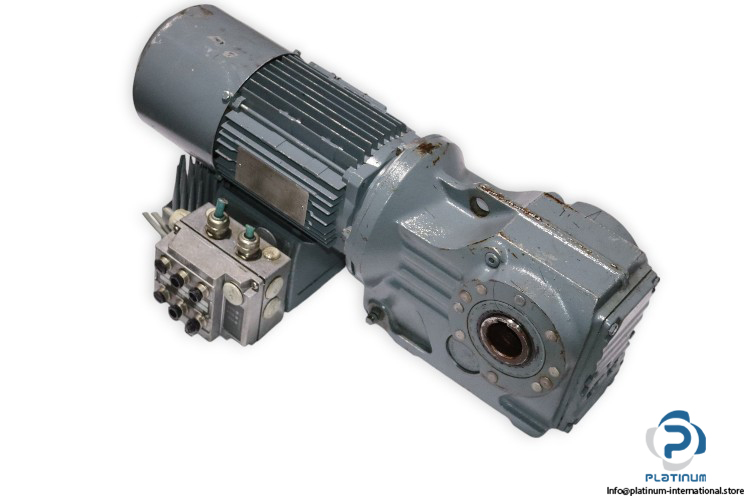

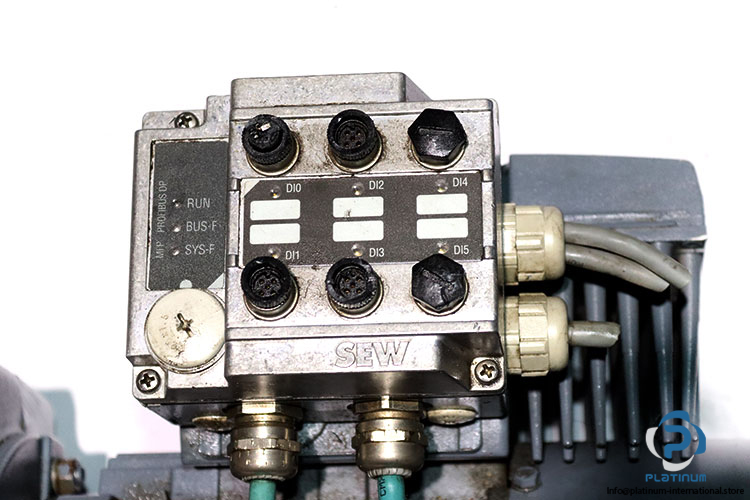

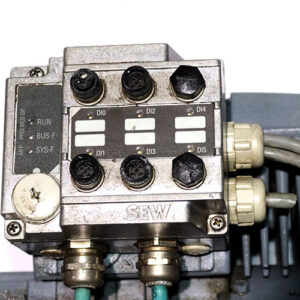

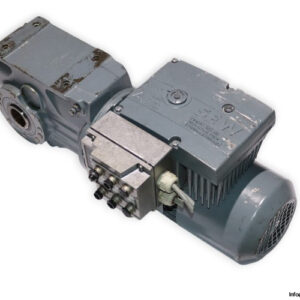

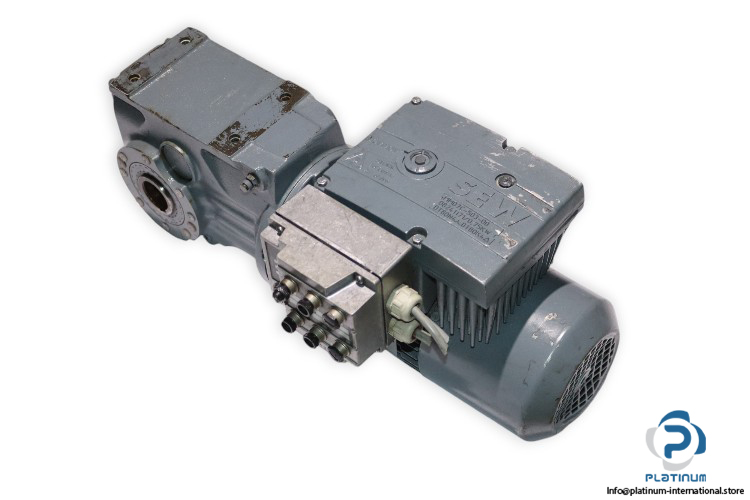

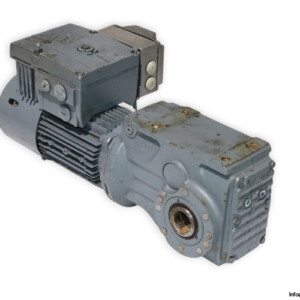

SEW KA47/T DT80N4/BMG/HR/Z/MM07/MFP HELICAL-BEVEL GEARMOTOR
The SEW KA47/T DT80N4/BMG/HR/Z/MM07/MFP Helical-Bevel Gearmotor offers high efficiency and precision in various industrial applications. With a total ratio of 29.32, this gearmotor ensures reliable power transmission with a broad range of input and output speeds, making it ideal for heavy-duty and versatile operations.
Manufacturer: SEW
Type: HELICAL-BEVEL GEARMOTOR
Model: KA47/T DT80N4/BMG/HR/Z/MM07/MFP

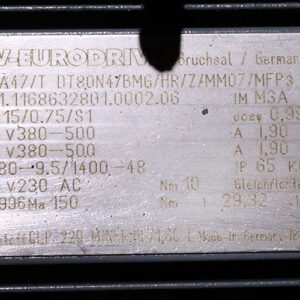

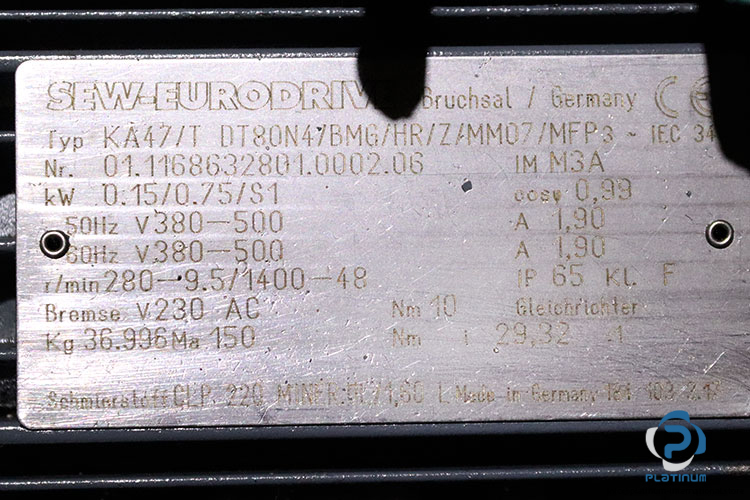

Part No: 01.1168632801.0002.06
Technical Specifications
- Gear Unit: KA47/T
- Input Speed [r/min]: 280 – 1400
- Output Speed [r/min]: 9.5 – 48
- Total Ratio: 29.32
- Mounting Position: M3A
- Output Torque [Nm]: 150
- Service Factor SEW-FB: 2.70
- Lubricant / Volume [l]: CLP 220 Miner.Oil / 1.60
- Hollow Shaft: 35mm
- Design: Hollow Shaft
- Motor Power [kW]: 0.15 / 0.75
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor S1-S10: S1
- Multi Range-Voltage 50Hz [V]: 380-500
- MM Rated Main Current [A]: 1.90
- Multi Range-Voltage 60Hz [V]: 380-500
- MM Rated O/P Current [A]: 2.50
- Thermal Class [°C] / Enclosure [IP]: F / 65
- Brake Voltage [V] / Torque [Nm]: 230 AC / 10

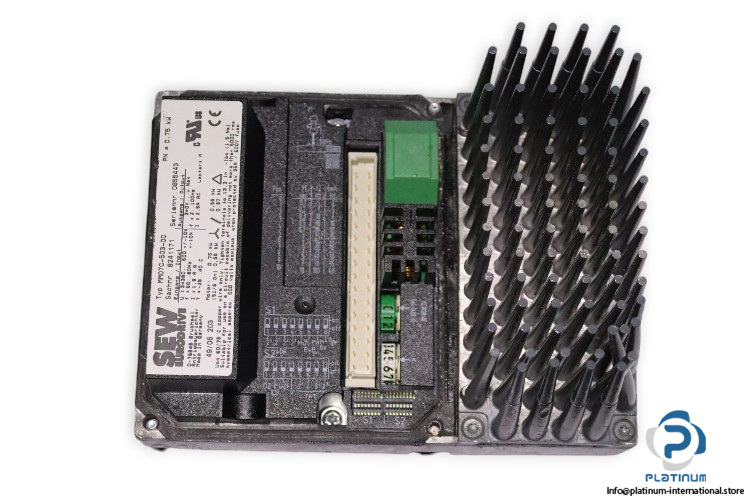

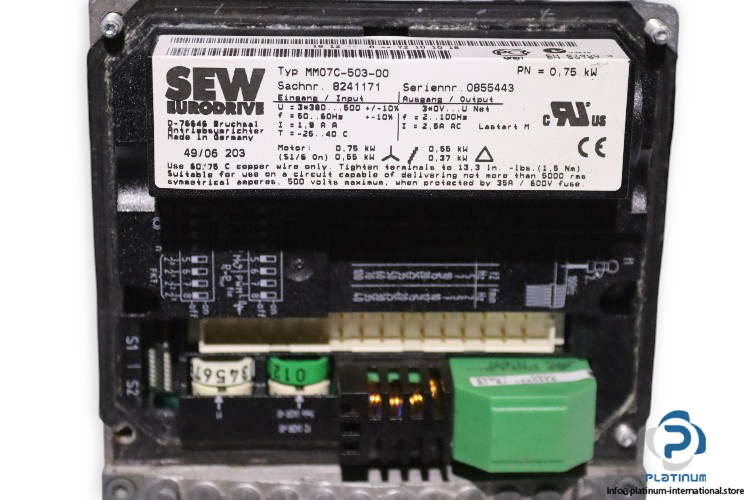

- Attached with: SEW MM07C-503-00 MOVIMOT INVERTER DRIVE
Input
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.9 A
- Frequency: 50 / 60 Hz
Output
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2.5 A
- Frequency: 2 to 100 Hz
