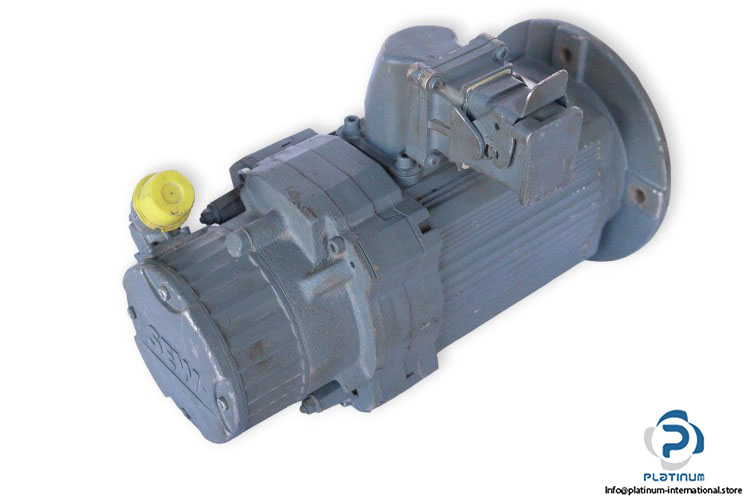

SEW KAF47 CM71S/BR/TF/RH1M/SB64 HELICAL BEVEL GEARMOTOR

This SEW helical bevel gearmotor offers high performance and reliability for industrial applications requiring compact construction, precise torque delivery, and versatile mounting options. Equipped with a resolver encoder and high-efficiency components, it ensures long-term operational efficiency.

Manufacturer: SEW
Type: Helical Bevel Gearmotor
Model: KAF47 CM71S/BR/TF/RH1M/SB64
Nr: 01.3217690618

Technical Information

• Gear Unit: KAF47
• Motor Size: 71
• Speed Class: 3000 r/min
• Torque at Standstill: 5 Nm
• Standstill Current: 3.30 A
• Max. Current: 13.20 A
• Max. Voltage: 400 V
• Frequency: 150 Hz
• Mounting Position: M1A
• Degree of Protection: 65
• Insulation Class: F
• Gear Type (R): Helical Gear Unit, IN B5 Flange Mounted
• Gear Unit Size: 47
• Ratio: 93.61
• Gear Output Speed: 76 r/min
• Motor Speed: 3000 r/min
• Rectifier Brake: XBSG
• Rated Voltage: 24 VDC
• Rated Torque: 5 Nm
• Thermistor: PTC Resistor
• Encoder: RH1M, Resolver
• Plug Connector: SB64
