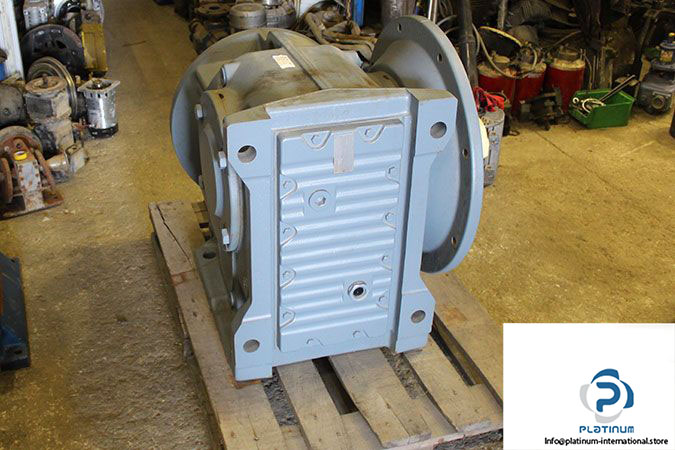

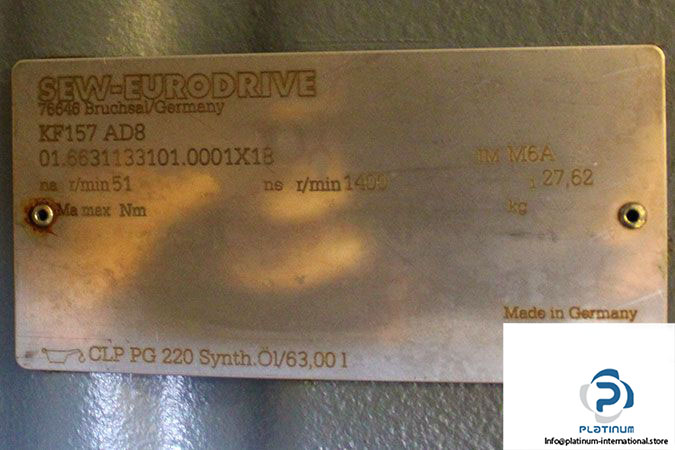

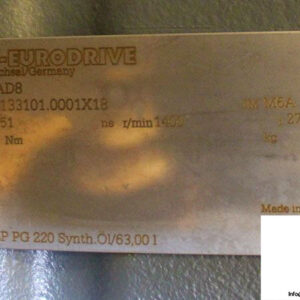

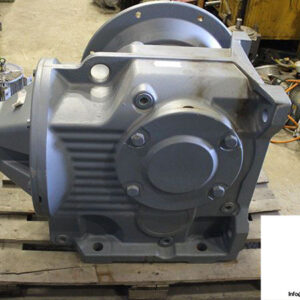

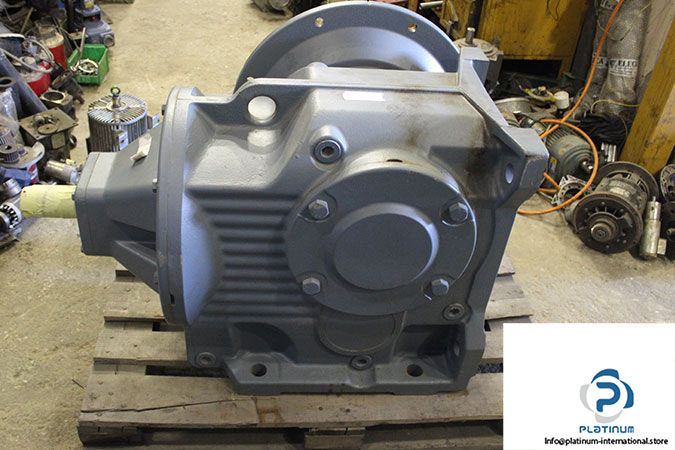

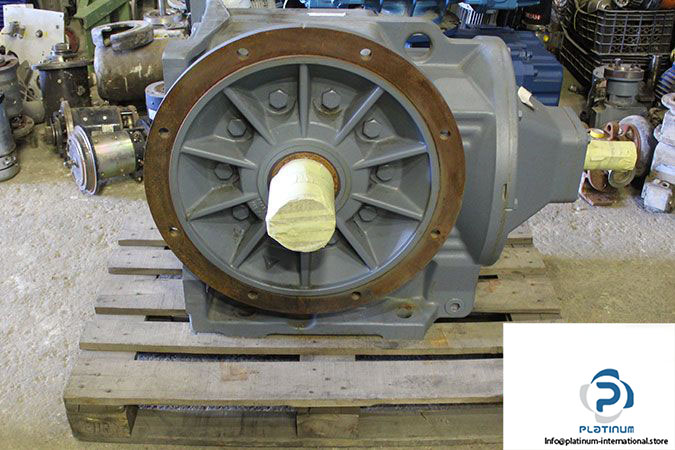

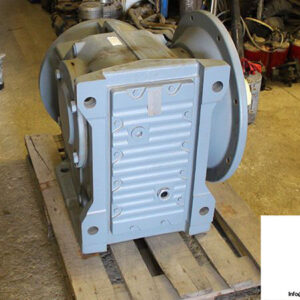

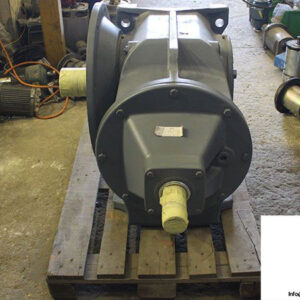

Manufacturer: Sew-Eurodrive

Type: Helical Bevel Gear Unit

Model: KF157AD8

Ratio: 27.62

Mounting Position: M6A

Lubrication: CLP PG 220 Synth. 1/63,001



Sew KF157 Gear

Gear Type (KF): Helical-Bevel Gear Unit, B5 Flange-Mounted

Gear Size: 157

Rated Speed: 51 r/min

Shaft Diameter: 120 mm

Flange Diameter: 660 mm

Sew AD8 Motor Options

Designation (AD): Input Shaft Assembly

Rated Speed: 1400 r/min

Max. Locking Torque of The Backstop: 1950 Nm

Min. Lift-Off Speed: 450 rpm

Shaft Diameter: 70 mm
